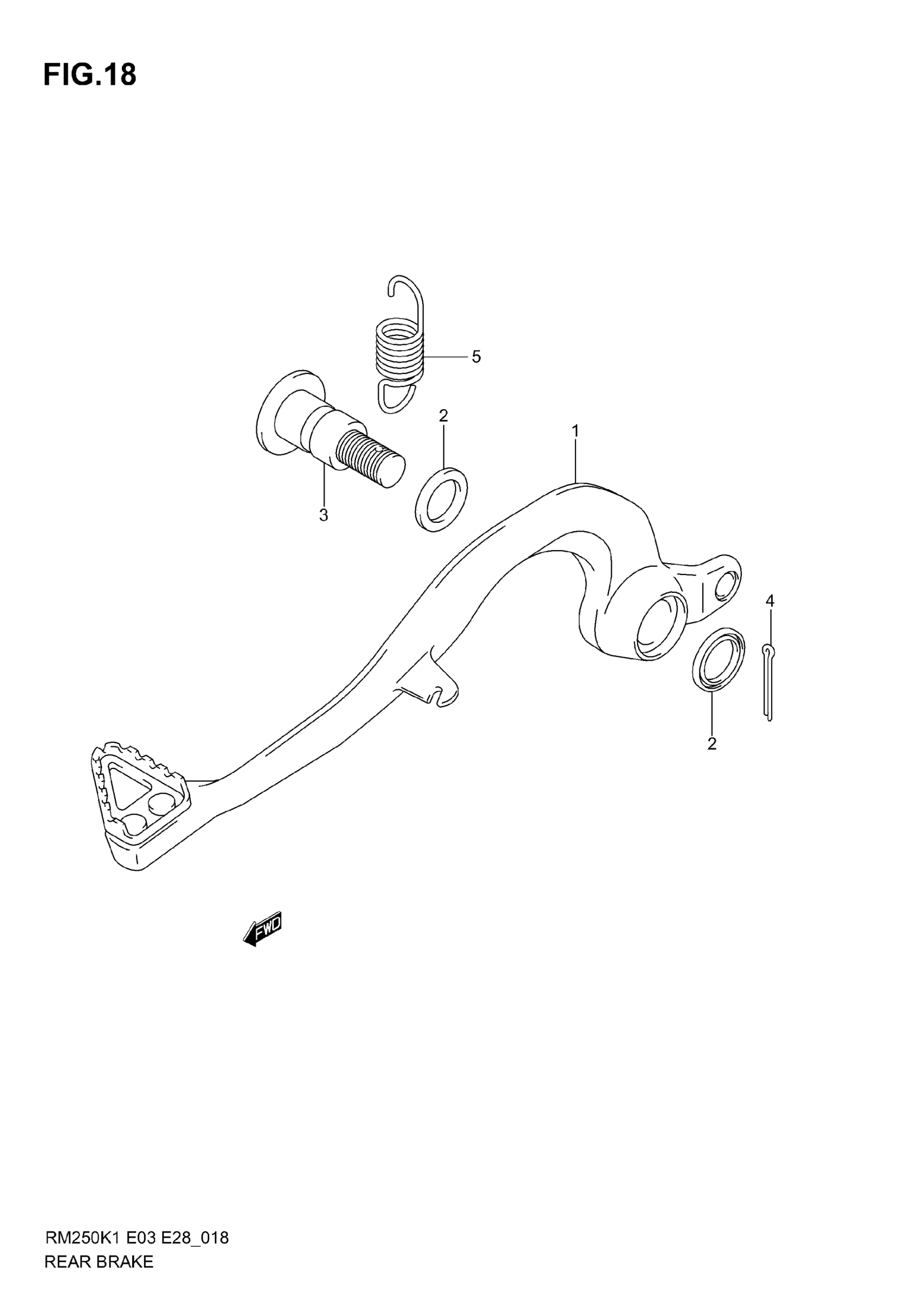

Suzuki RM250 (2006) REAR BRAKE Diagram

#

Description

Price

1

PEDAL, BRAKE | MODEL K1/K2

43100-37F00

Unavailable

1

PEDAL, BRAKE | MODEL K3

43100-37F10

Unavailable

1

PEDAL, BRAKE | MODEL K4/K5/K6; Includes Item(s) 2

43100-37F20

$273.25

2

DUST SEAL

09284-15006

$3.31

3

SHAFT

43142-37F00

$22.38

4

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

5

SPRING | MODEL K1/K2/K3/K4 This part replaces 09443-13034.

09443-13034-XC0

$3.11

5

SPRING | MODEL K5/K6

09443-13036

$2.98
