2006 Suzuki RM250 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2006 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

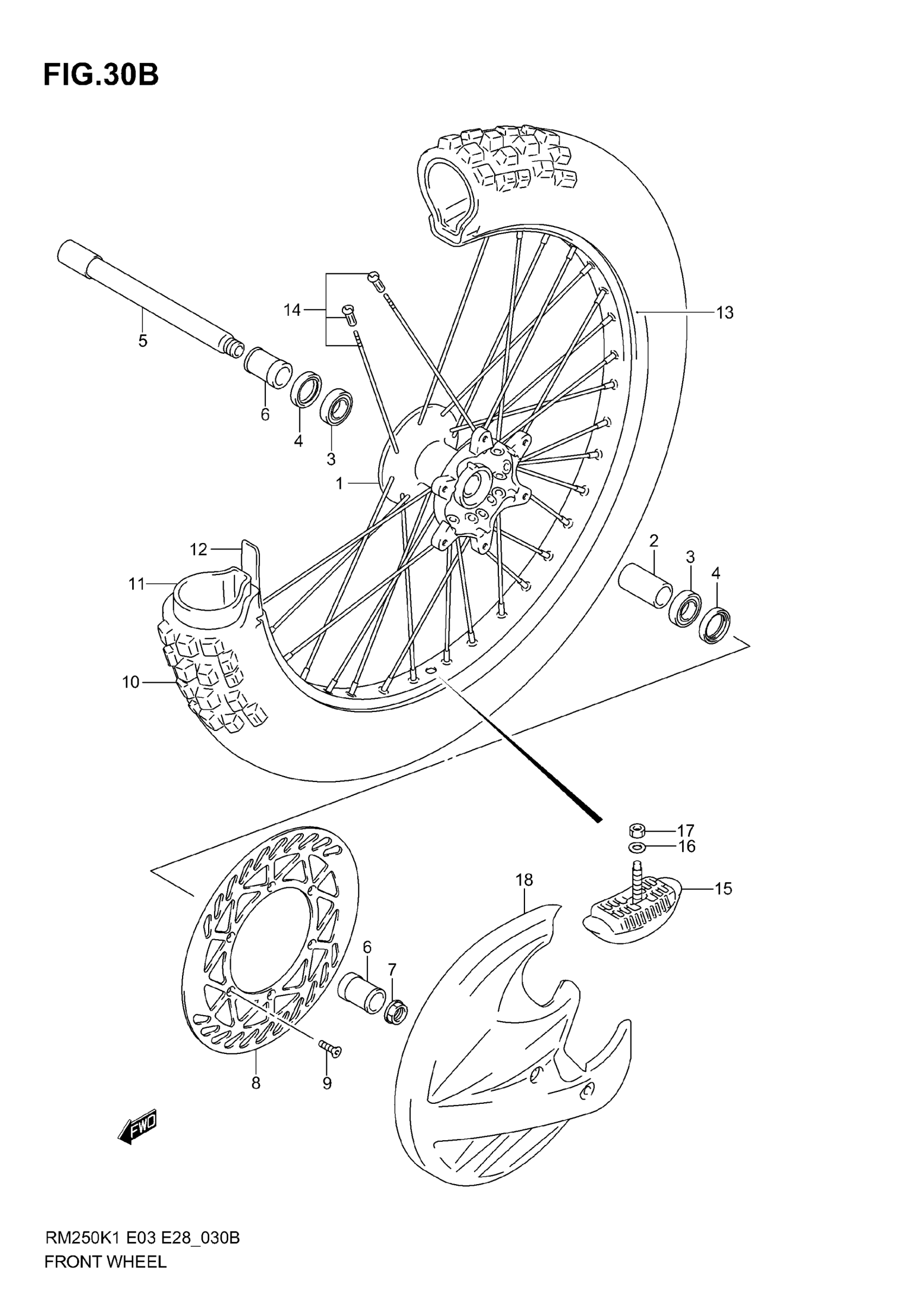

2006 Suzuki RM250 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-36E00

1
Out of stock

2

SPACER, FRONT HUB (20.5X27.3X50)

54731-36E00

1
Out of stock

3

2

$47.02

In stock

4

SEAL, FRONT HUB (28X37X7)

09283-28023

2
Out of stock

5

AXLE, FRONT

54711-37F00

1
Out of stock

6

SPACER, AXLE (L:41)

54741-37F01

2
Out of stock

7

NUT

09159-18016

1
Out of stock

8

DISC, FRONT BRAKE

59220-37F20

1
Out of stock

9

SCREW

09120-06014

6
Out of stock

10

TIRE, FRONT (80/100-21) (BRIDGESTONE)

55110-37F60

1
Out of stock

11

TIRE, FRONT This part replaces 55200-16510.

55200-16511

1
Out of stock

12

PROTECTOR, INNER TUBE

55261-14540

1
Out of stock

13

RIM, FRONT WHEEL (1.60X21)

55311-28C10

1
Out of stock

14

SPOKE SET, FRONT WHEEL

55320-37F10

1
Out of stock

15

STOPPER, BEAD

65270-14300

1
Out of stock

16

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

17

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

18

COVER, FRONT BRAKE DISC | OPT

59231-36E20-YU1

1
Out of stock
