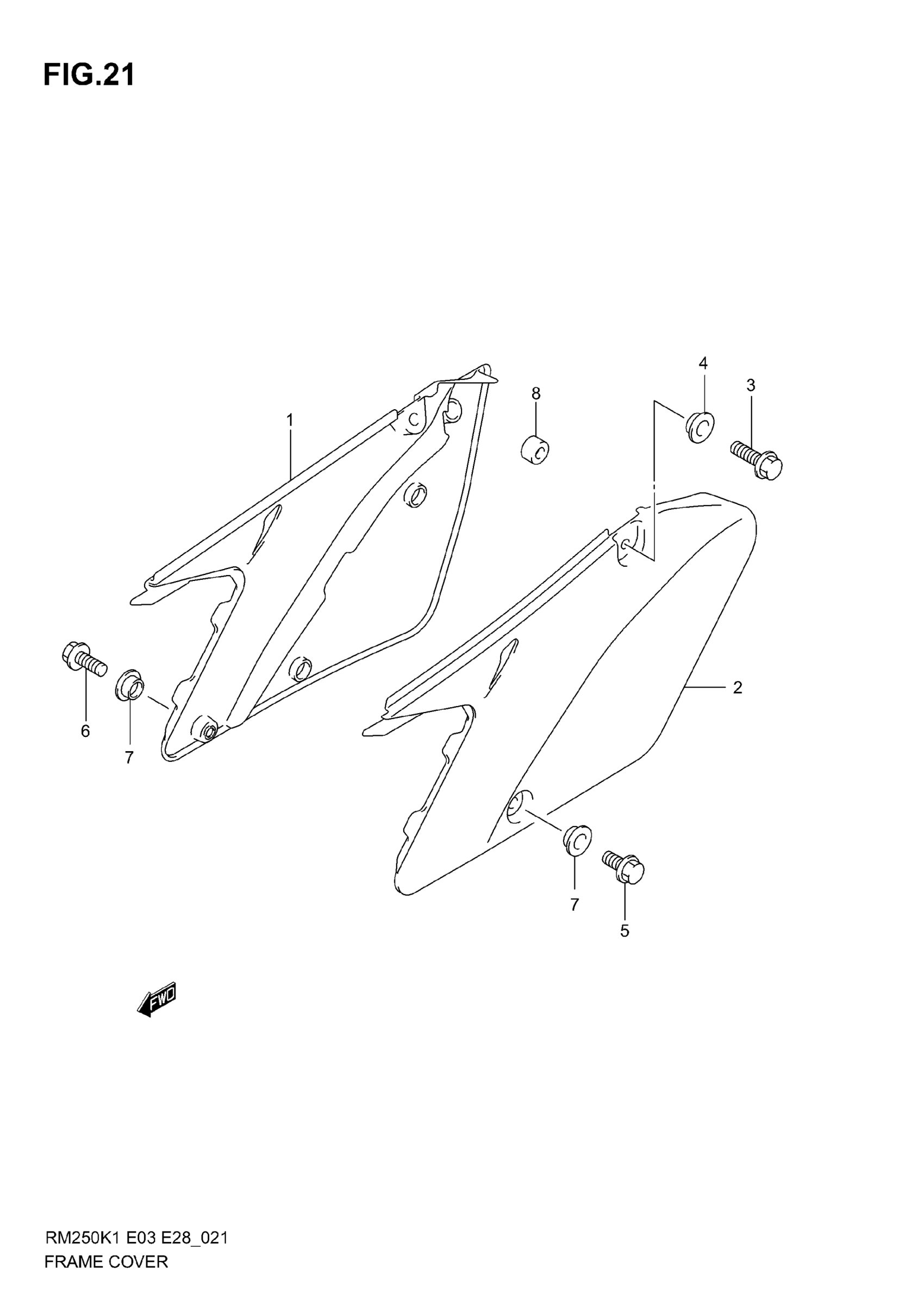

Suzuki RM250 (2006) FRAME COVER (MODEL K1) Diagram

#

Description

Price

1

COVER, FRAME RH (YELLOW) This part replaces 47111-36F00-YR1.

47111-36F01-YU1

Unavailable

2

COVER, FRAME LH (YELLOW) This part replaces 47211-36F00-YR1.

47211-36F01-YU1

Unavailable

3

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

4

WASHER, SEAT This part replaces 53112-37F00.

53112-37F01

$10.58

5

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

6

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

7

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.10

8

CUSHION, RH

47161-37F00

$9.47
