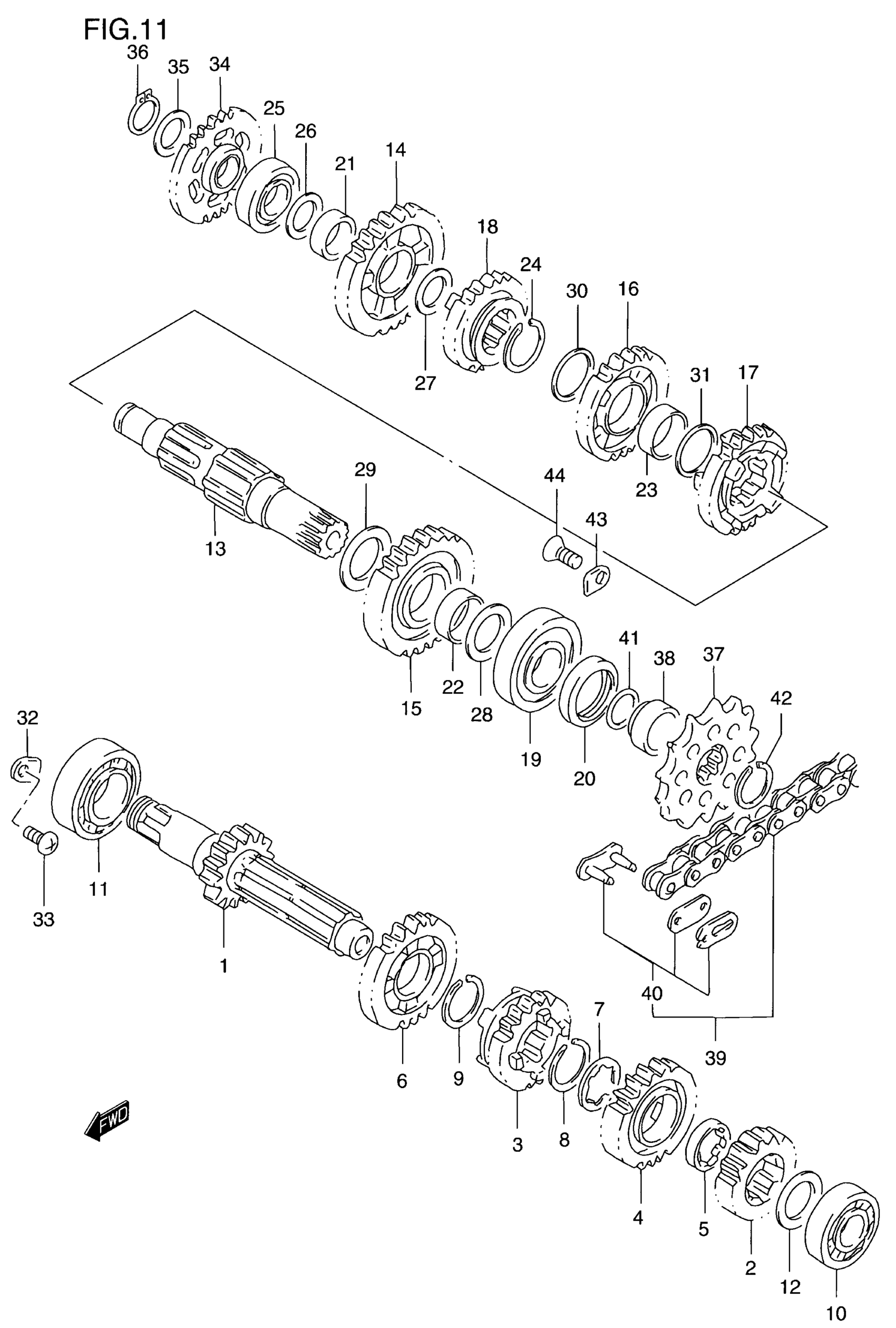

Suzuki RM250 (2000) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER(N This part replaces 24120-37E00.

24120-37E01

Unavailable

2

GEAR, 2ND DRIVE (NT:17) This part replaces 24221-37E00.

24221-37E01

Unavailable

3

GEAR, 3RD DRIVE (NT:19) | MODEL T/V/W This part replaces 24231-37E00.

24231-37F02

Unavailable

3

GEAR, 3RD DRIVE (NT:19) | MODEL X/Y This part replaces 24231-37E01.

24231-37F02

Unavailable

4

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-37E00.

24241-37E01

$128.95

5

BUSH, 4TH DRIVE GEAR

24242-37E00

$36.72

6

GEAR, 5TH DRIVE (NT:23)

24251-37E00

$129.92

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

8

CIRCLIP, 4TH DRIVE

09380-25010

$2.80

9

CIRCLIP, 5TH DRIVE

09380-25010

$2.80

10

BEARING, CNTR LH

08143-62037

$17.17

11

BEARING (25X52X15)

08143-62057

$22.79

12

WASHER, 2ND DRIVE GEAR | MODEL T This part replaces 08211-17301.

09181-17223

$2.81

12

WASHER, 2ND (17X30X1.0) | MODEL V/W/X/Y

09181-17223

$2.81

13

SHAFT, DRIVE

24131-28C03

Unavailable

14

GEAR, 1ST DRIVEN (NT:27)

24311-37E00

$133.83

15

GEAR, 2ND DRIVEN (NT:25) | MODEL T This part replaces 24321-37E00.

24321-37E02

$132.58

15

GEAR, 2ND DRIVEN (NT:25) | MODEL V/W/X/Y This part replaces 24321-37E01.

24321-37E02

$132.58

16

GEAR, 3RD DRIVEN (NT:23) This part replaces 24331-37E00.

24331-37F02

$130.07

17

GEAR, 4TH DRIVEN (NT:21) | MODEL T This part replaces 24341-37E00.

24341-37E01

Unavailable

17

GEAR, 4TH DRIVEN (NT:21) | MODEL V

24341-37E01

Unavailable

17

GEAR, 4TH DRIVEN (NT:21) | MODEL W

24341-37E10

Unavailable

17

GEAR, 4TH DRIVEN (NT:21) | MODEL X/Y This part replaces 24341-37E11.

24341-37E12

Unavailable

18

GEAR, 5TH DRIVEN (NT:20)

24351-37E00

Unavailable

19

BEARING, DRIVE (22X56X15) | MODEL T

09262-22023

Unavailable

19

BEARING, DRIVE (22X56X15) | MODEL V/W/X/Y

09262-22030

$63.16

20

SEAL, DRIVE (28X38X6)

09283-28020

$9.41

21

BUSH, 1ST DRIVEN GEAR

09300-20037

$19.47

22

BUSH, 2ND DRIVEN GEAR

09300-25031

$20.80

23

BUSH, 3RD DRIVEN GEAR

09300-25031

$20.80

24

CIRCLIP, 3RD DRIVEN

09380-25010

$2.80

25

BEARING, DRIVE (17X40X12)

09262-17023

$15.57

26

WASHER, 2ND DRIVE GEAR | MODEL T This part replaces 08211-17301.

09181-17223

$2.81

26

WASHER, 1ST (17X30X1.0) | MODEL V/W/X/Y

09181-17223

$2.81

27

WASHER, 1ST DRIVEN NO.2 | MODEL T

08211-20301

$2.97

27

WASHER, 1ST (20X30X1.0) | MODEL V/W/X/Y

09181-20195

$2.68

28

WASHER, 2ND (22X34X1.5) | MODEL T This part replaces 08211-22342.

09181-22240

$4.45

28

WASHER, 2ND DRIVEN GEAR | MODEL V/W/X/Y,22X34X1.5

09181-22240

$4.45

29

WASHER, 5TH DRIVE | MODEL T This part replaces 08211-25341.

09181-25167

$2.95

29

WASHER, 2ND DRIVEN NO.2 | MODEL V/W/X/Y,25X34X1.0

09181-25167

$2.95

30

WASHER, 5TH DRIVE | MODEL T This part replaces 08211-25341.

09181-25167

$2.95

30

WASHER, 3RD DRIVEN GEAR | MODEL V/W/X/Y,25X34X1.0

09181-25167

$2.95

31

WASHER, 3RD DRIVEN NO.2

08221-25305

$2.58

32

RETAINER, CNTR SHAFT BRG

24741-21A00

$2.80

33

SCREW This part replaces 02112-06123.

02112-0612A

$1.46

34

GEAR, KICK STARTER (NT:27) | MODEL T This part replaces 26260-37E00.

26260-37E01

$108.08

34

GEAR, KICK STARTER (NT:27) | MODEL V/W/X/Y

26260-37E01

$108.08

35

WASHER (17X24X0.5) | MODEL T This part replaces 08221-17245.

09181-17130

$2.80

35

WASHER, KICK (17X24X0.5) | MODEL V/W/X/Y

09181-17130

$2.80

36

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.95

37

SPROCKET, ENGINE (NT:13) This part replaces 27511-15D00.

27511-37F00

$24.64

37

SPROCKET, ENGINE (NT:14) | OPT

27511-47D00

$34.03

38

SPACER, ENGINE SPROCKET

27531-28C00

$12.73

39

CHAIN ASSY,DRIVE | MODEL T/V/W This part replaces 27600-43D00-114.

27600-46K00-114

$156.72

39

CHAIN ASSY,DRIVE | MODEL X/Y; Includes Item(s) 40 This part replaces 27600-43D00-112.

27600-46K00-114

$156.72

40

.JOINT SET,CHAIN This part replaces 27620-43D00.

27620-46K00

$10.80

41

O RING (D:1.9,ID:19.8)

09280-20006

$1.82

42

CIRCLIP, ENGINE SPROCKET

09380-22006

$2.88

43

RETAINER

24741-20A00

$2.80

44

SCREW This part replaces 02122-06123.

02122-0612A

$1.46
