2000 Suzuki RM250 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

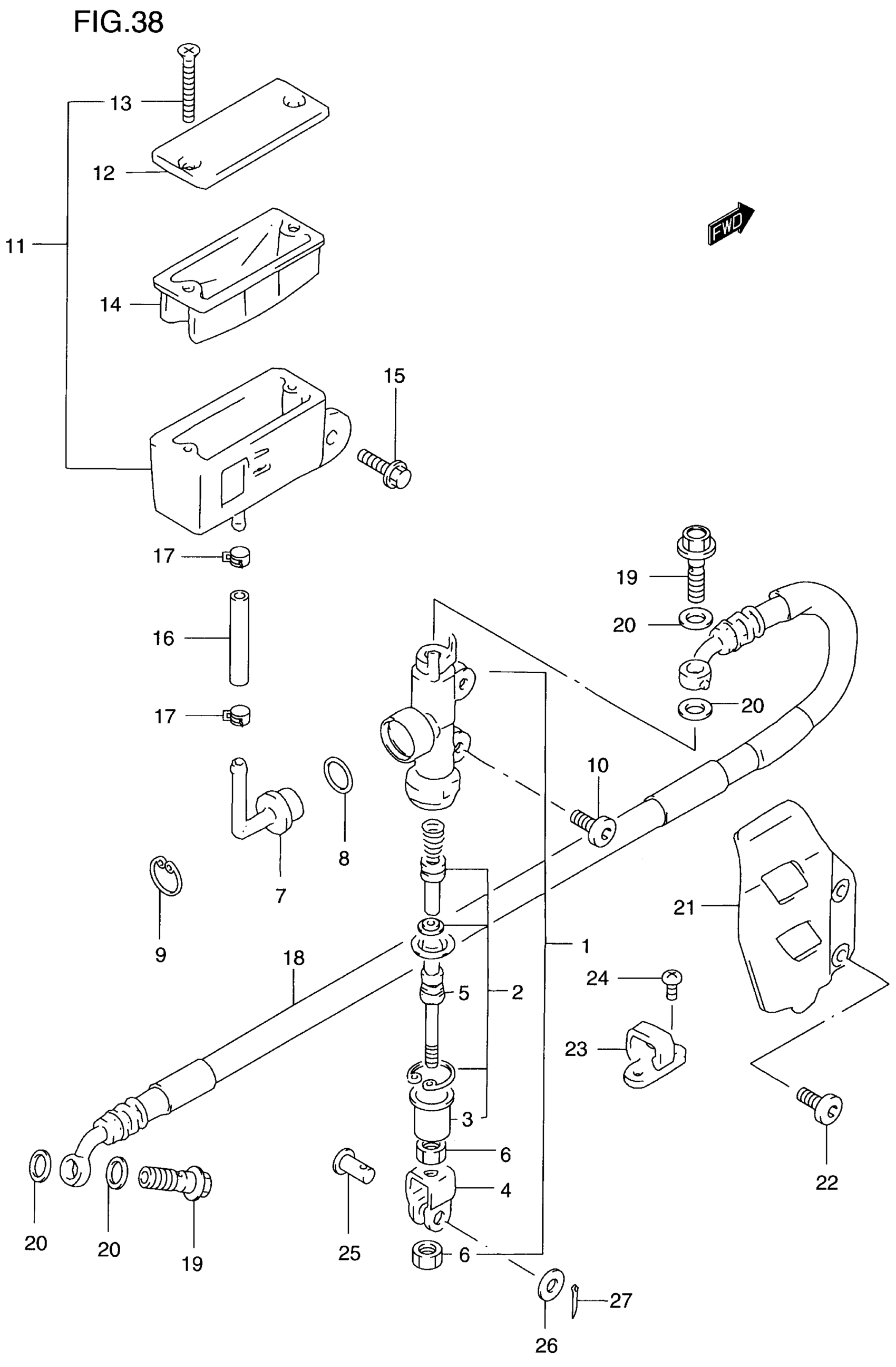

2000 Suzuki RM250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-36E00

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-00B21

1
Out of stock

5

ROD, PUSH

69670-36E00

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-00B20

1
Out of stock

8

O RING

69686-34200

1
Out of stock

9

CIRCLIP

69674-00B20

1
Out of stock

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

2
Out of stock

11

TANK ASSY,RESER | Includes Item(s) 12 - 14 This part replaces 69740-36E00.

69740-36E01

1
Out of stock

12

CAP

59669-27C01

1
Out of stock

13

SCREW

69689-36E00

2

$3.65

In stock

14

DIAPHRAGM

59667-14500

1
Out of stock

15

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock

16

1

$18.80

In stock

17

CLAMP

69735-00B20

2

$5.43

In stock

18

HOSE,RR BRAKE This part replaces 69480-36E00.

69480-36E02

1
Out of stock

19

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

GUARD, REAR MASTER CYLINDER

43570-36E00

1
Out of stock

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

2
Out of stock

23

GUIDE, HOSE | MODEL T

61196-27C20

1
Out of stock

24

SCREW | MODEL T/V This part replaces 02142-05103.

02142-0510B

2
Out of stock

24

SCREW | MODEL W/X/Y This part replaces 02142-05103.

02142-0510B

1
Out of stock

25

PIN

09200-08048

1
Out of stock

26

WASHER | MODEL T/V

09160-08074

1
Out of stock

26

WASHER | MODEL W/X/Y This part replaces 09160-08119.

09160-08090

1
Out of stock

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock
