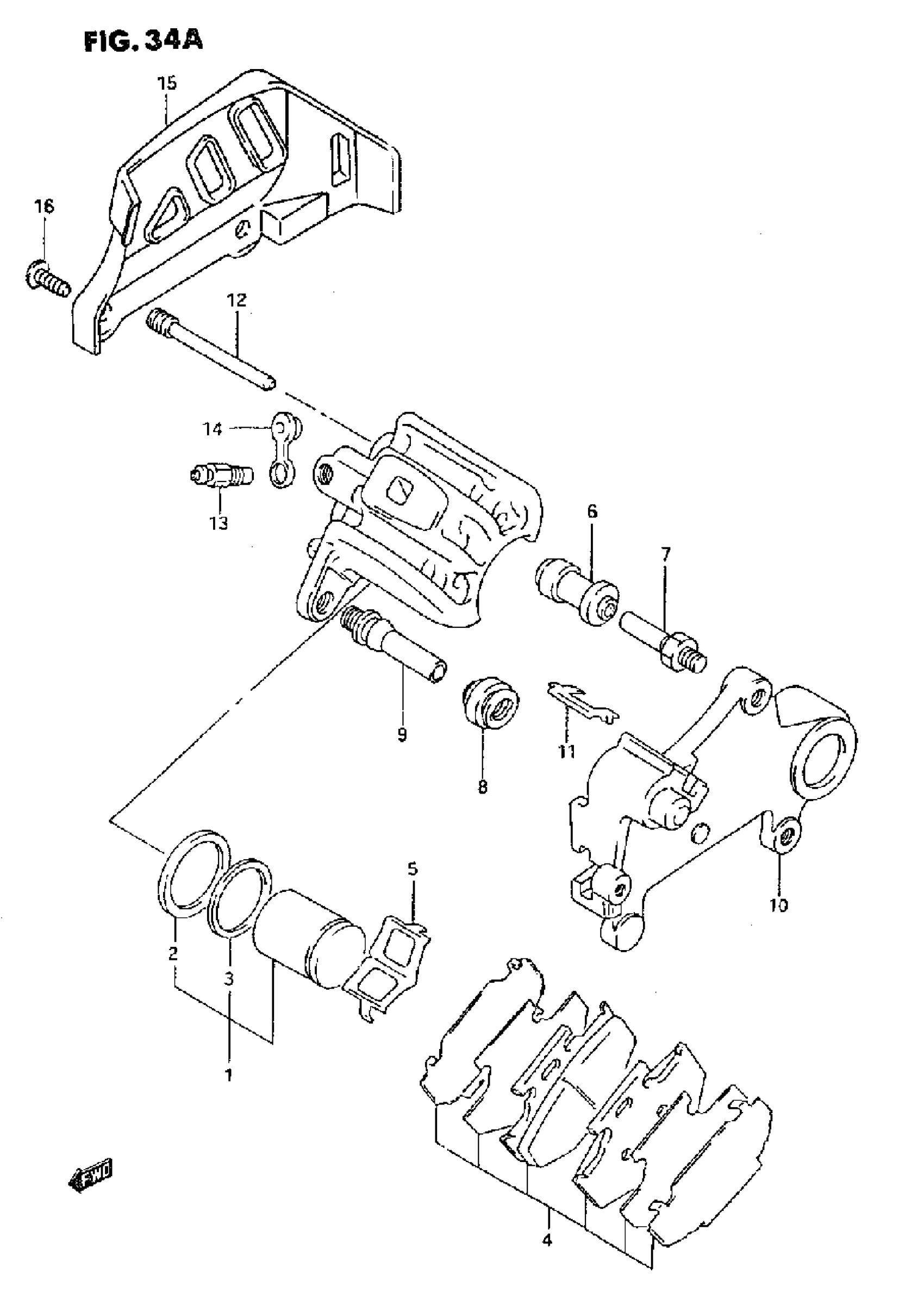

Suzuki RM250 (1995) REAR CALIPER (MODEL S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 69100-43D30.

69100-43D10-999

Unavailable

1

PISTON SET

69100-43830

$59.73

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.04

3

SEAL, DUST

59108-17C00

Unavailable

4

PAD SET

69100-43860

Unavailable

5

SPRING

59315-27C10

$13.20

6

BOOT

59386-13A00

$7.28

7

PIN

59382-14500

$8.43

8

BOOT

59303-14500

$5.06

9

PIN

59305-27C00

$26.52

10

BRACKET

69351-43D01

Unavailable

11

RETAINER

69113-43D00

$9.97

12

.PIN HANGER

69345-43D00

$10.88

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

GUARD, CALIPER

69725-27C30

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.37
