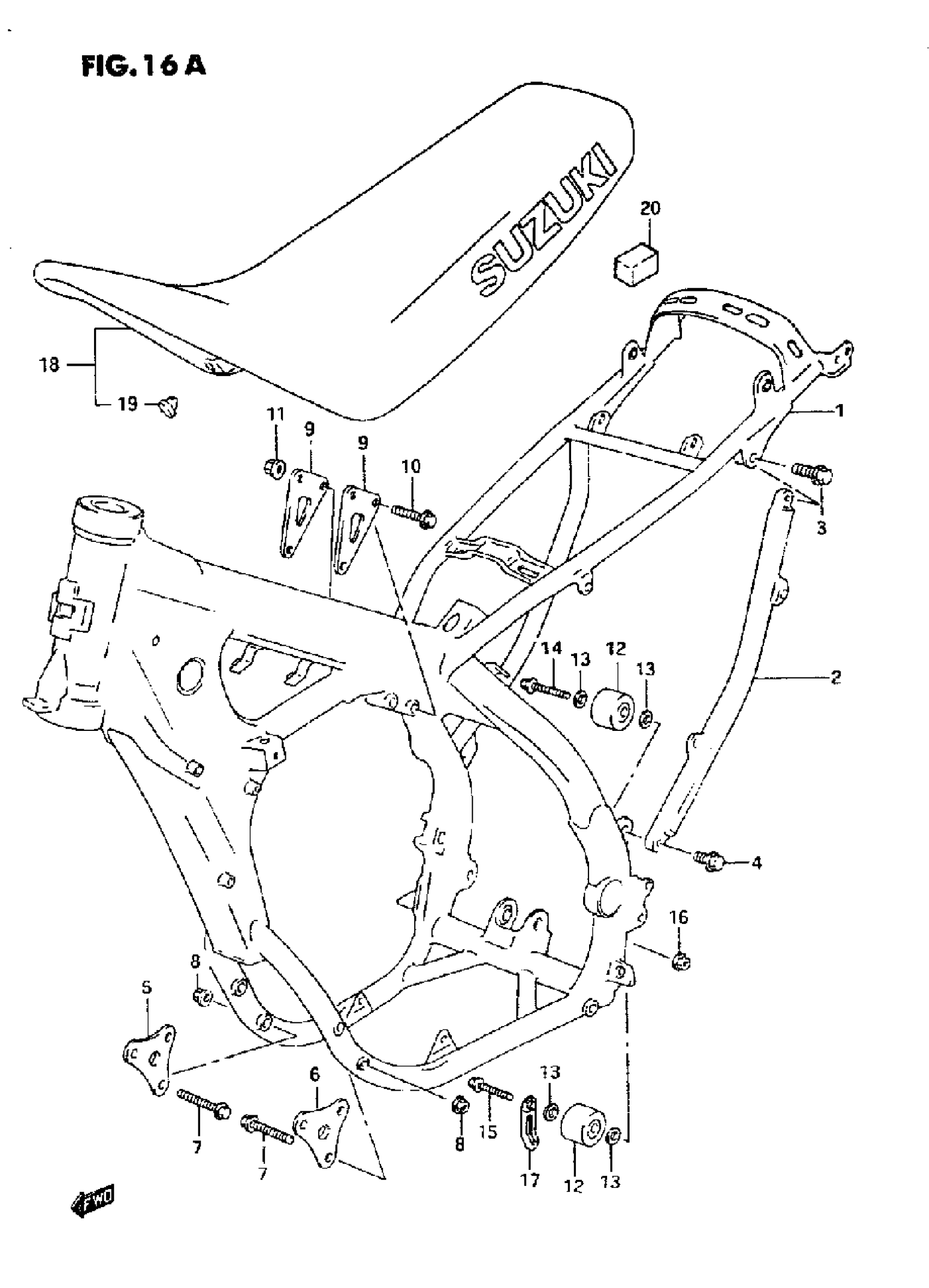

Suzuki RM250 (1995) FRAME - SEAT (MODEL R/S) Diagram

#

Description
Price

1

FRAME (CHARCOAL) | MODEL R This part replaces 41100-28E10-24K.

41100-28E20-24K

Unavailable

1

FRAME (CHARCOAL) | MODEL S

41100-28E20-24K

Unavailable

2

TUBE, FRAME SIDE LH

41670-28E01

Unavailable

3

BOLT This part replaces 01560-08203.

01560-0820A

$3.42

4

BOLT This part replaces 01560-08163.

01560-0816A

Unavailable

5

PLATE, ENGINE MOUNT FRONT

41991-28E10

Unavailable

6

PLATE, ENGINE MOUNT FRONT LH | MODEL R This part replaces 41992-28E10.

41992-28E11

Unavailable

6

PLATE, ENGINE MOUNT FRONT LH | MODEL S

41992-28E11

Unavailable

7

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.19

8

NUT

09159-08034

$1.62

9

PLATE, ENGINE MOUNT UPPER

41993-28E10

Unavailable

10

BOLT

09103-08043

$2.87

11

NUT

09159-08067

$5.03

12

ROLLER, CHAIN CONTROL

43910-27C11

$72.98

13

WASHER

08211-08121

$2.00

14

BOLT, UPPER

09103-08083

$3.38

15

BOLT, UPPER

09103-08043

$2.87

16

NUT, LOWER

08319-31087

$2.31

17

CLAW

09404-08420

$2.90

18

SEAT ASSY | MODEL R This part replaces 45100-28E10-A5K.

45100-28E12-D6Z

Unavailable

18

SEAT ASSY | MODEL S This part replaces 45100-28E12-A5K.

45100-28E12-D6Z

Unavailable

19

CUSHION

09329-10001

$2.14

20

CUSHION

45299-28E00

Unavailable
