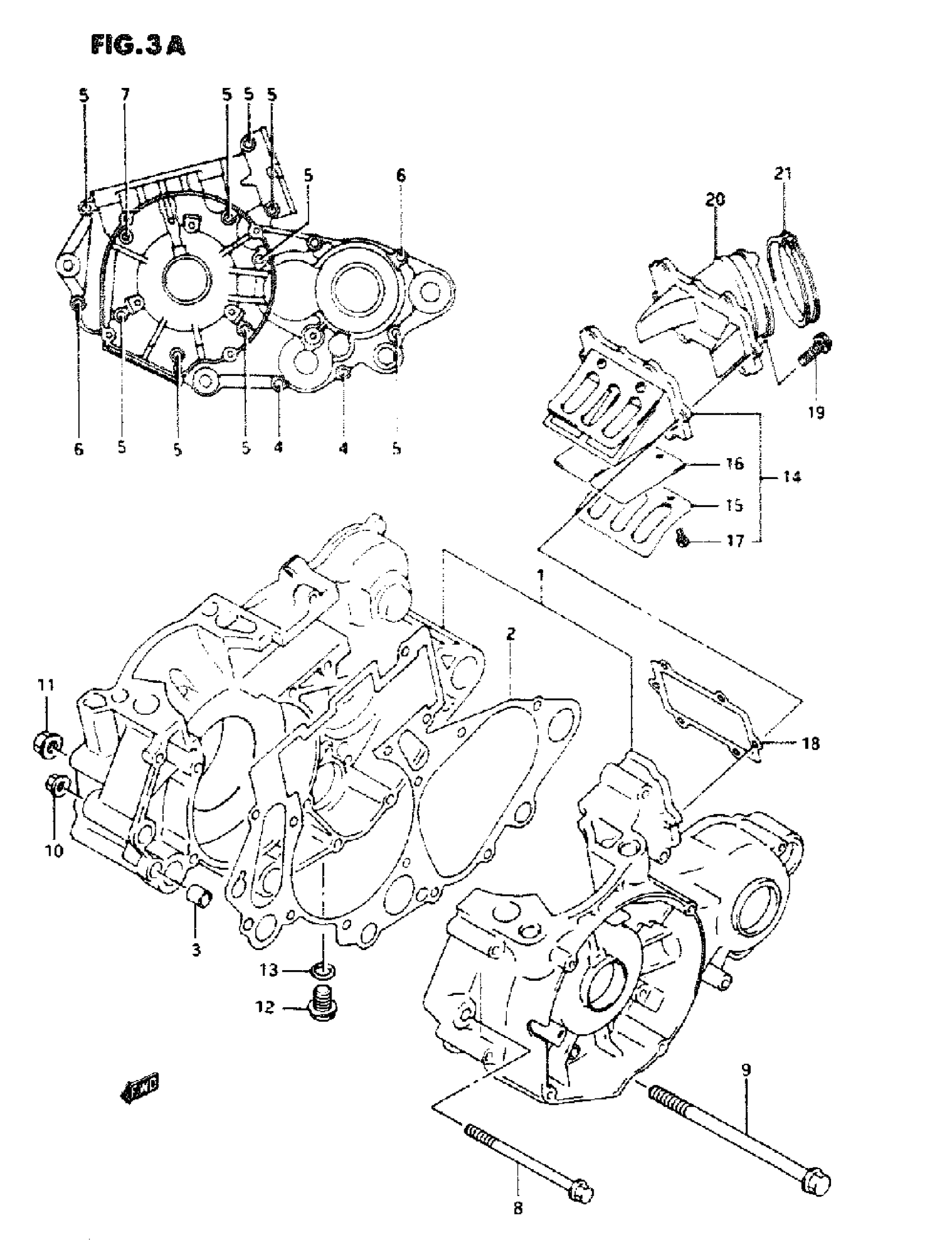

Suzuki RM250 (1995) CRANKCASE(MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 11301-28820.

11301-28822

Unavailable

1

CRANKCASE SET | MODEL S This part replaces 11301-28830.

11301-28831

Unavailable

2

GASKET, CRANKCASE

11481-28E10

$34.25

3

PIN

04211-09129

$1.64

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

5

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

6

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

7

BOLT This part replaces 01547-06753.

01547-0675B

$4.28

8

BOLT (8X102)

09103-08296

$6.41

9

BOLT (10X140)

09103-10119

$10.42

10

NUT

09159-08034

$1.62

11

NUT (M10)

09159-10060

$1.86

12

BOLT This part replaces 01500-12163.

01500-1216B

$4.22

13

GASKET

09168-12002

$1.59

14

VALVE ASSY,REED This part replaces 13150-28E01.

13150-28E02

Unavailable

15

STOPPER,REED VA This part replaces 13152-28E00.

13152-28E01

Unavailable

16

VALVE,REED This part replaces 13153-28E00.

13153-28E01

Unavailable

17

SCREW This part replaces 02112-33063.

02112-3306A

$2.00

18

GASKET, REED VALVE

13156-01C10

$3.18

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

20

PIPE,INTAKE This part replaces 13110-28E10.

13110-28E11

Unavailable

21

CLAMP This part replaces 09402-56208.

09402-56901

$4.84
