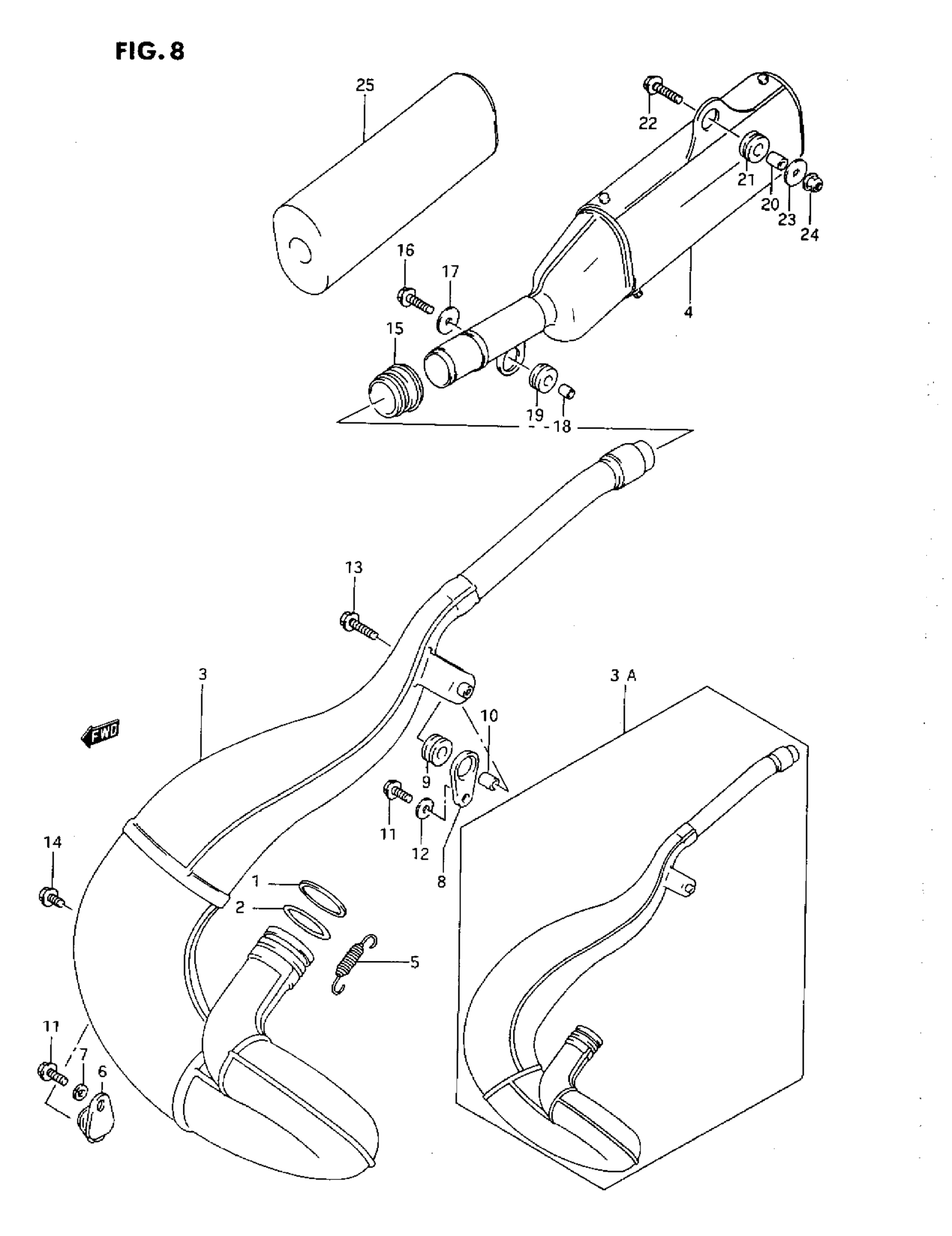

Suzuki RM250 (1993) MUFFLER Diagram

#

Description
Price

1

WASHER, EXHAUST PIPE

14172-28C30

$2.08

2

O-RING, EXHAUST PIPE

14171-28C30

$19.10

3

BODY, MUFFLER 1ST | MODEL P

14310-28E00-H01

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 14310-28E10-H01.

14310-28E10

Unavailable

4

BODY, MUFFLER 2ND

14330-28E00-H01

Unavailable

5

SPRING This part replaces 09443-12042.

09443-12042-XC0

$7.81

6

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.23

7

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

8

PLATE, MUFFLER MOUNTING

14761-27C00

$8.38

9

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.58

10

SPACER This part replaces 09180-06062.

09180-06268

$2.17

11

BOLT

01547-06167

$1.70

12

WASHER (6.5X20X1.2) | MODEL P This part replaces 09160-06027.

09160-06077

$1.97

12

WASHER, CLUTCH RLSE NO.2 | MODEL R This part replaces 09160-06069.

09160-06052

$1.49

13

BOLT

01547-06257

$2.09

14

BOLT

01547-06127

$1.73

15

CONNECTOR, MUFFLER

14771-28C02

$37.75

16

BOLT

01547-06207

$2.09

17

WASHER, FRONT | MODEL P This part replaces 09160-06004.

09160-06134

$1.97

17

WASHER (6.5X24X1.2) | MODEL R This part replaces 09160-06002.

09160-06114

$2.09

18

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.73

19

CUSHION

09320-10041

Unavailable

20

SPACER (6.5X11.5X13)

09180-06212

$3.73

21

CUSHION

09320-11016

Unavailable

22

BOLT

01547-06257

$2.09

23

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.09

24

NUT

08319-31067

$2.09

25

SILENCER | OPT

14351-28E00

Unavailable
