1988 Suzuki RM250 Rear Brake Diagram

← All diagrams

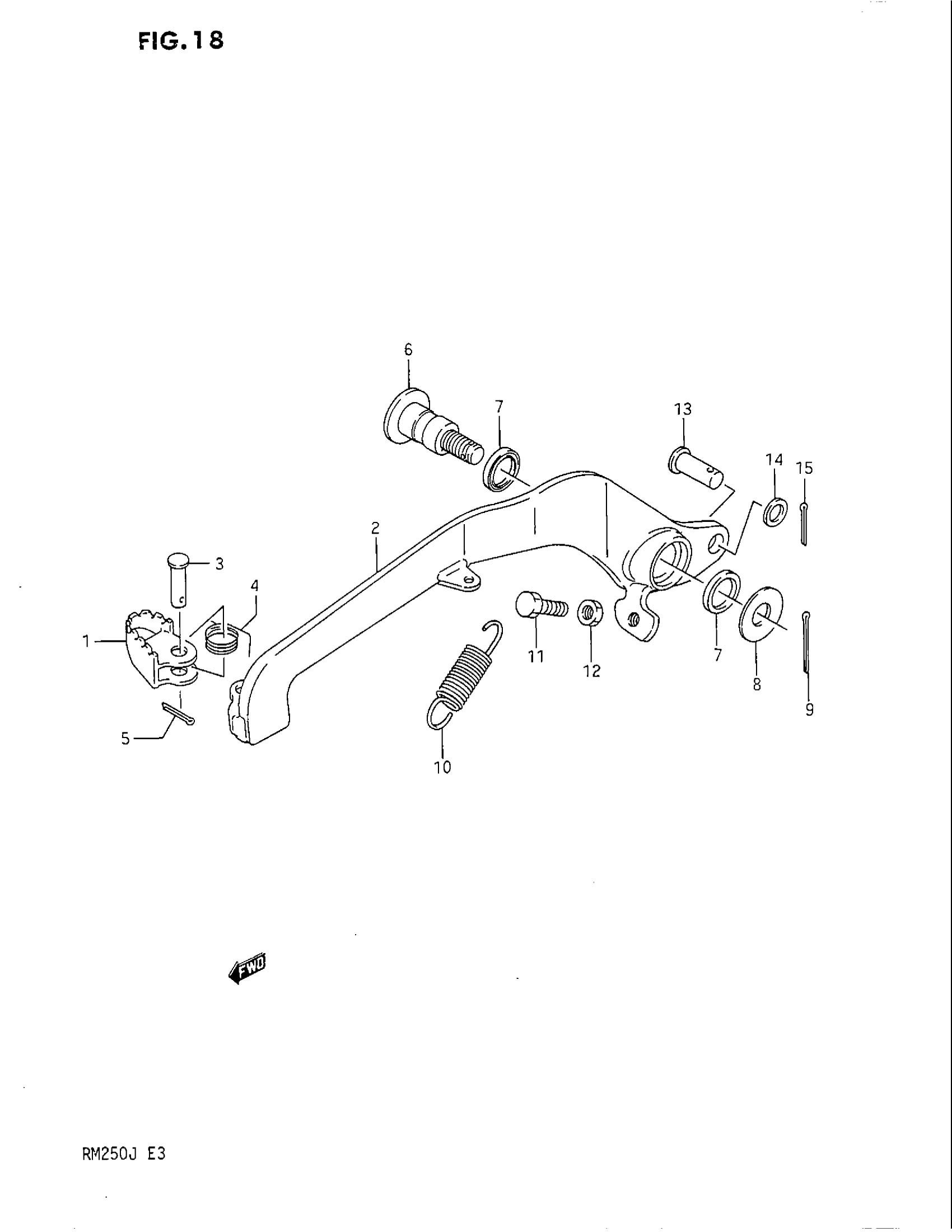

Find the part on the Rear Brake diagram for your 1988 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-01B10

1
Out of stock

2

ARM, REAR BRAKE

43120-26C01

1
Out of stock

3

PIN

09200-06060

1
Out of stock

4

SPRING

09444-11005

1
Out of stock

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

6

SHAFT, BRAKE PEDAL This part replaces 43142-01B30.

43142-27C00

1
Out of stock

7

DUST SEAL

09284-15005

2
Out of stock

8

THRUST WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 09443-11023.

09443-11023-XC0

1
Out of stock

11

BOLT

09100-06009

1
Out of stock

12

.NUT This part replaces 08310-11067.

08310-00067

1
Out of stock

13

PIN

09200-08048

1
Out of stock

14

WASHER

09160-08074

1
Out of stock

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock
