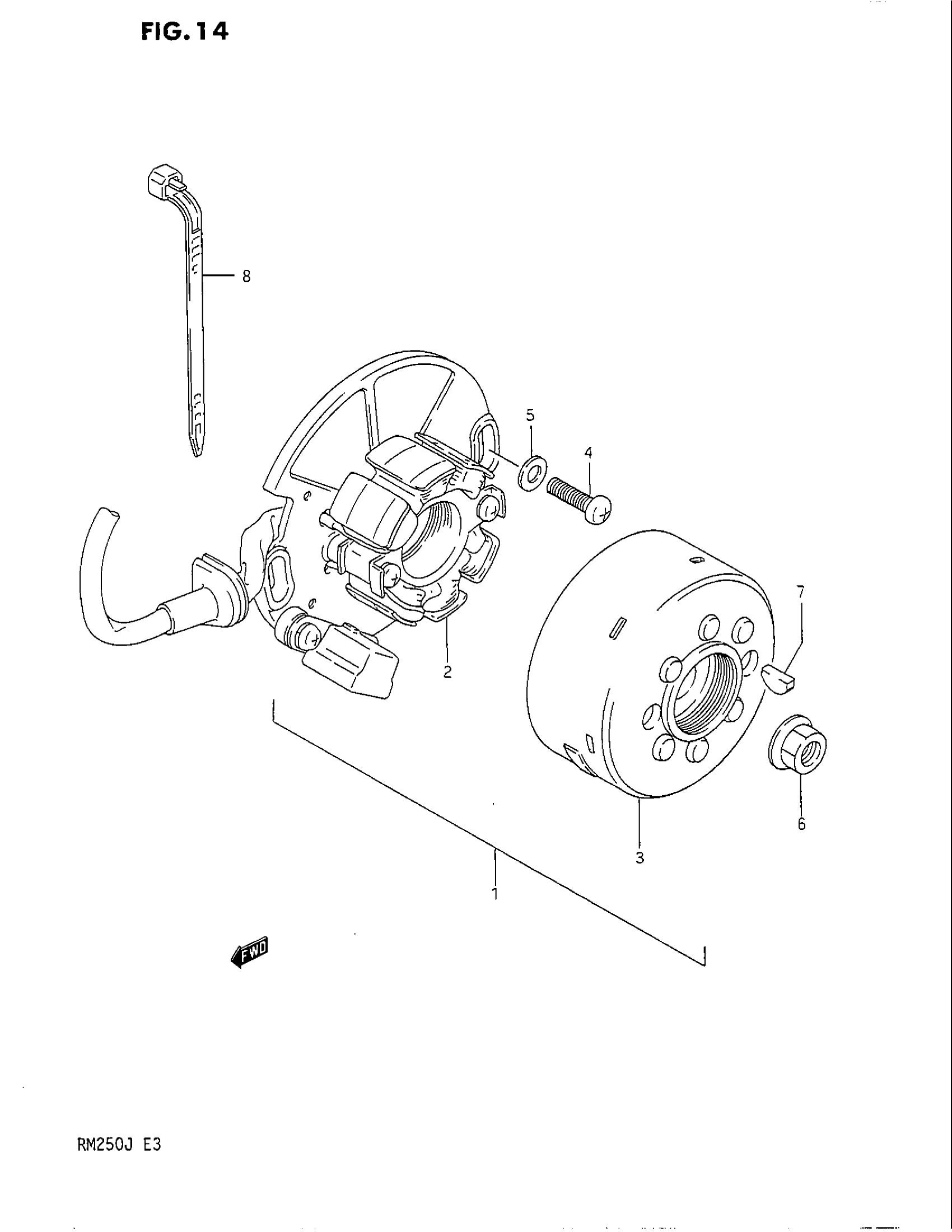

Suzuki RM250 (1988) MAGNETO Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 32100-00B30.

32100-00B31

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32101-00B30.

32101-00B31

Unavailable

3

ROTOR

32102-00B30

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.83

5

WASHER This part replaces 08322-21067.

08322-01067

$1.93

6

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.46

7

KEY This part replaces 08341-31049.

09420-04008

$3.18

8

CLAMP (L:125)

09407-14403

$2.31

8

CLAMP (L:165)

09407-18402

$2.29

8

CLAMP (L:235)

09407-25401

$4.33
