1988 Suzuki RM250 Fuel Tank Diagram

← All diagrams

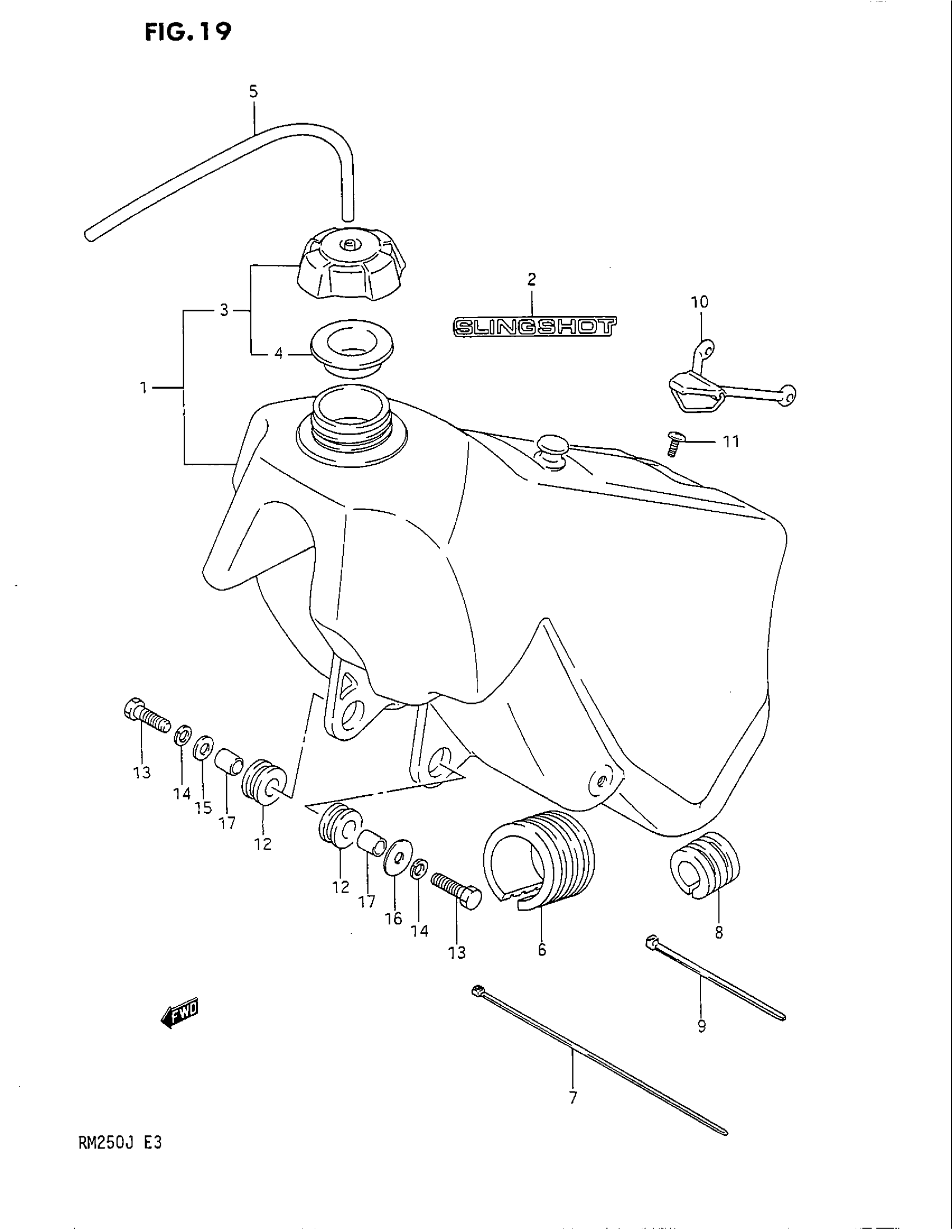

Find the part on the Fuel Tank diagram for your 1988 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 44100-26871-25Y.

44100-26872-25Y

1
Out of stock

2

EMBLEM, FUEL TANK

68111-26C00-9BS

1
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

1
Out of stock

4

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

5

HOSE,5X10X600 This part replaces 09352-50823-280.

44421-13ER0

1
Out of stock

6

CUSHION, UPPER FRONT

44541-26C00

1
Out of stock

7

CLAMP This part replaces 09407-20402.

09407-25402

1
Out of stock

8

CUSHION, UPPER REAR

44542-26C00

1
Out of stock

9

CLAMP, REAR

09407-14407

1
Out of stock

10

BAND, REAR

44560-26C00

1
Out of stock

11

SCREW This part replaces 02142-06164.

02142-0616A

1
Out of stock

12

CUSHION

09320-12030

2
Out of stock

13

BOLT This part replaces 01107-08307.

01500-08307

2
Out of stock

14

2

$2.28

In stock

15

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

16

WASHER, LH

09160-08032

1
Out of stock

17

SPACER

09180-08033

2
Out of stock
