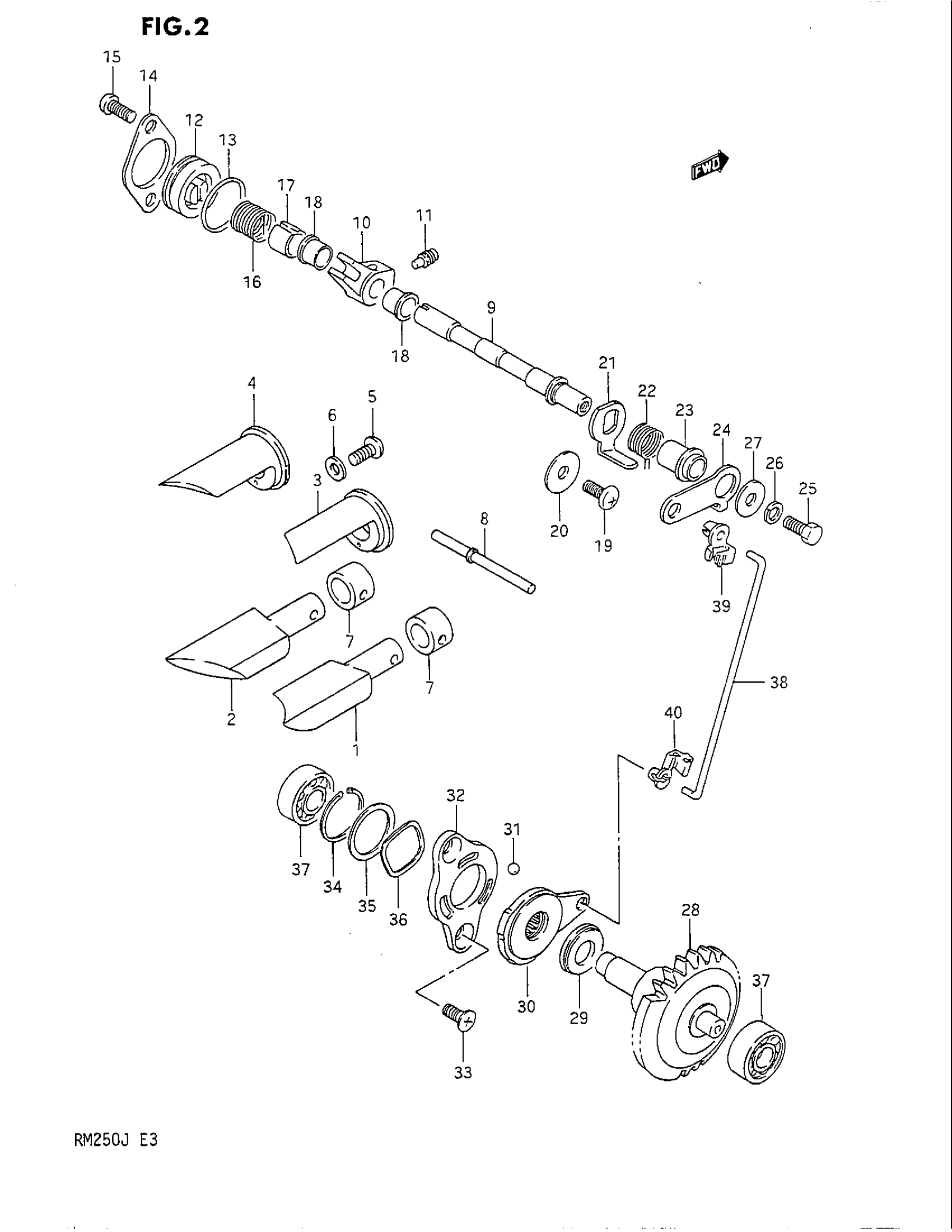

Find the part on the Exhaust Valve diagram for your 1988 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM250 Exhaust Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, EXHAUST,RH

11254-26C01

1
Out of stock

2

VALVE, EXHAUST,LH

11255-26C01

1
Out of stock

3

GUIDE, EXHAUST VALVE,RH

11261-26C02

1
Out of stock

4

GUIDE, EXHAUST VALVE,LH

11262-26C02

1
Out of stock

5

SCREW This part replaces 02112-05128.

02112-05127

3
Out of stock

6

3

$2.33

In stock

7

SPACER, EXHAUST VALVE This part replaces 11263-26C00.

11263-29E00

2
Out of stock

8

1

$27.27

In stock

9

SHAFT, EXHAUST VALVE

11259-00B22

1
Out of stock

10

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B22.

11264-00B24

1
Out of stock

11

1

$4.20

In stock

12

CAP, EXHAUST VALVE This part replaces 11258-01B00.

11258-27C01

1
Out of stock

13

1

$1.95

In stock

14

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

1
Out of stock

15

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

16

SPRING

09444-16005

1
Out of stock

17

SPACER

11269-00B20

1
Out of stock

18

BUSH

09301-08008

2
Out of stock

19

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

20

WASHER

08212-06201

1

$1.80

In stock

22

SPRING

09444-15008

1

$4.51

In stock

23

SPACER This part replaces 11268-01B00.

11268-01B01

1
Out of stock

25

BOLT This part replaces 01104-05126.

01500-0512B

1
Out of stock

26

LOCK WASHER This part replaces 08321-21056.

08321-0105A

1
Out of stock

27

1

$2.45

In stock

28

GOVERNOR ASSY, EXHAUST VALVE This part replaces 12670-00B30.

12670-28C00

1
Out of stock

29

BEARING

09263-10002

1

$9.87

In stock

30

ACTUATOR, EXHAUST VALVE

12680-01820

1
Out of stock

31

BALL

06111-06003

3
Out of stock

32

STATOR, ACTUATOR

12682-00B20

1
Out of stock

33

SCREW (5X10)

09120-05003

2
Out of stock

34

CIRCLIP

09380-19003

1
Out of stock

35

SHIM (19.1X25X0.3)

09181-19004

1
Out of stock

36

LOCK WASHER

09164-19001

1
Out of stock

37

BEARING (8X22X7)

09262-08005

2
Out of stock

38

ROD, EXHAUST VALVE

12685-00B20

1
Out of stock

39

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

1
Out of stock

40

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

1
Out of stock
