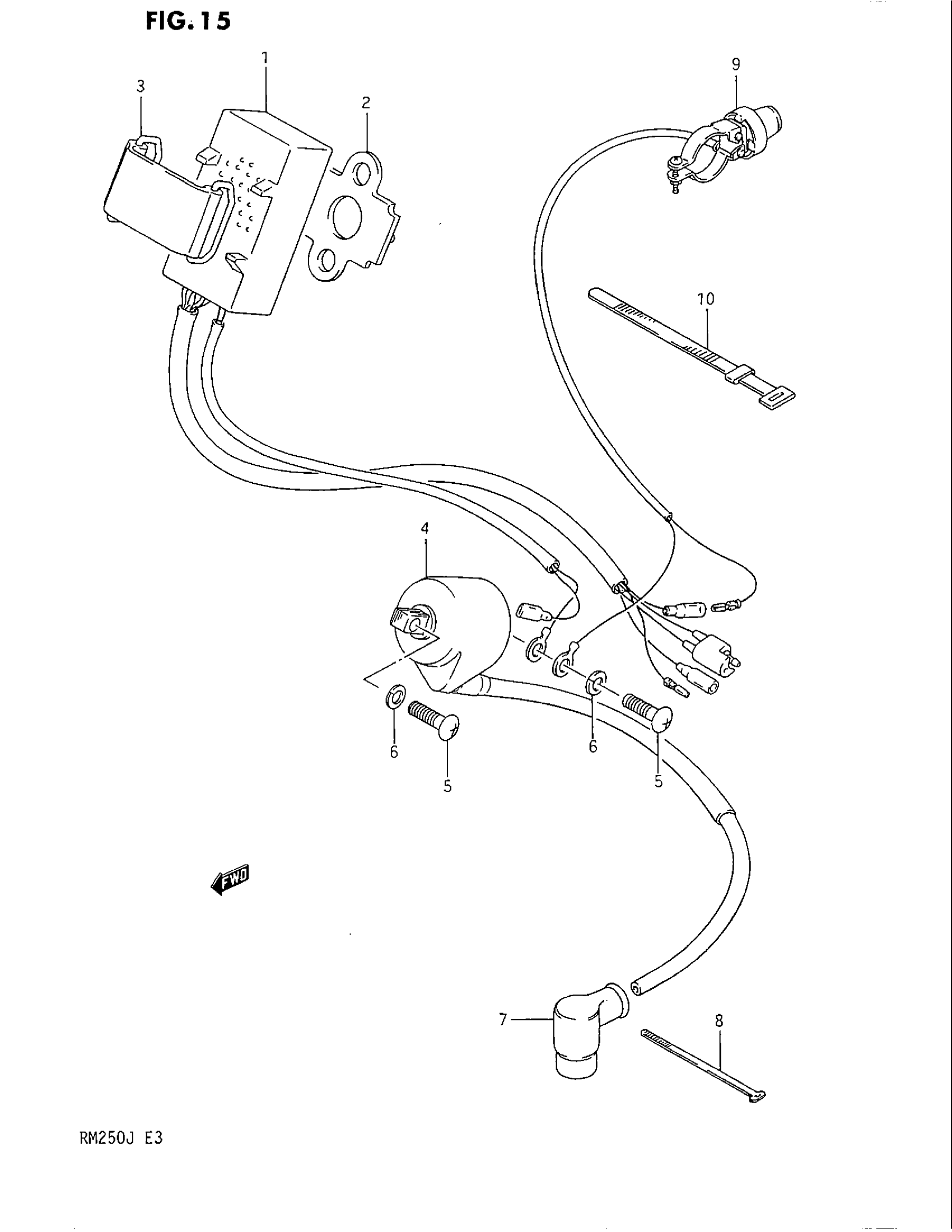

Suzuki RM250 (1988) ELECTRICAL Diagram

#

Description

Price

1

C.D.I. UNIT

32900-00B30

Unavailable

2

PROTECTOR

32941-14300

Unavailable

3

BAND, CDI UNIT This part replaces 32942-14110.

32942-14111

$8.11

4

COIL ASSY, IGNITION This part replaces 33410-26C00.

33410-12C00

Unavailable

5

SCREW This part replaces 02112-06206.

02112-0620A

$1.45

6

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

7

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$22.33

8

BELT

09407-09402

$2.67

9

SWITCH ASSY, ENGINE STOP This part replaces 37820-00B00.

37820-14X50

$44.43

10

CLAMP

09407-12402

$2.80
