1988 Suzuki RM250 Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1988 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

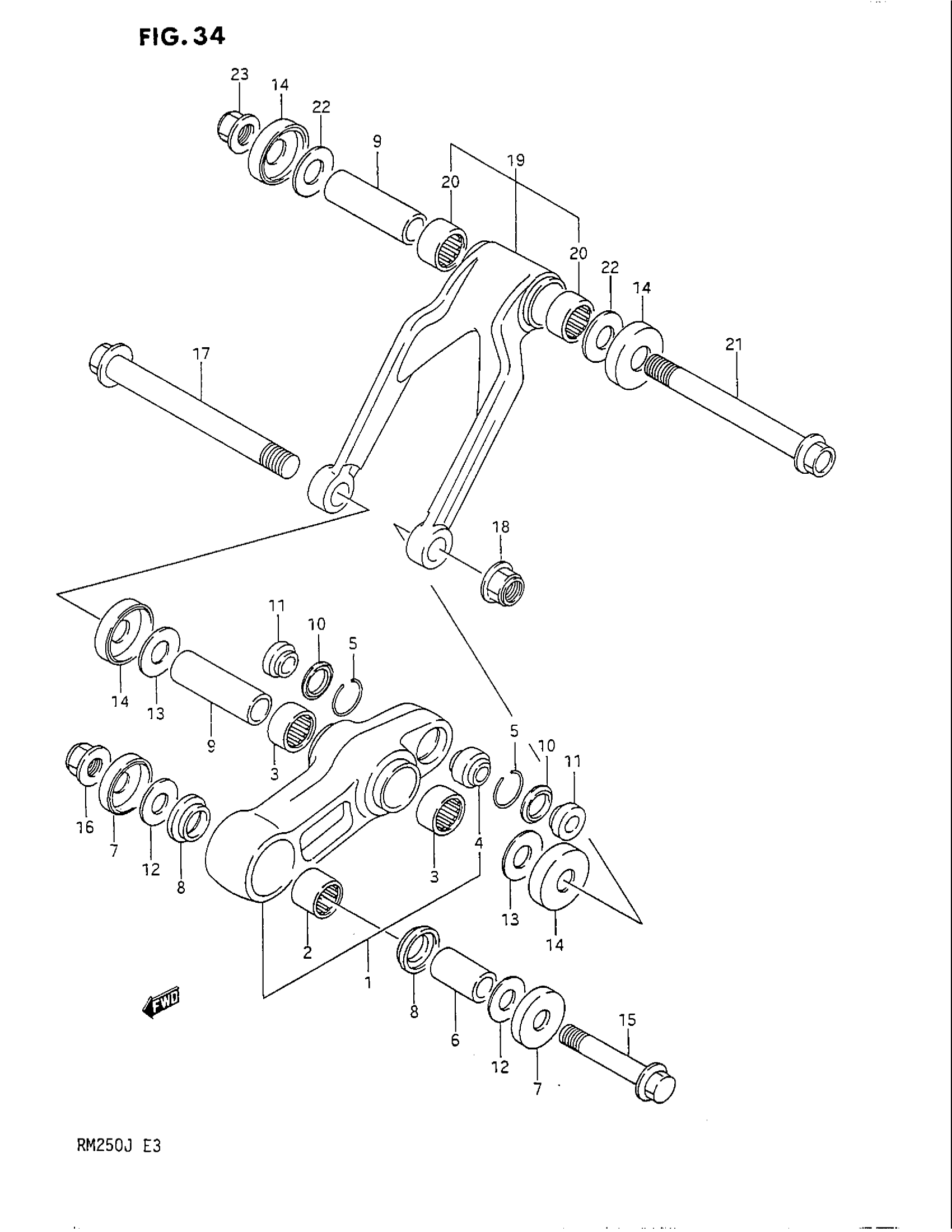

1988 Suzuki RM250 Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 5

62600-26830

1
Out of stock

2

BEARING, FRONT

09263-20053

1
Out of stock

3

BEARING, CENTER

09263-20063

2
Out of stock

4

BEARING, REAR

62175-00B00

1
Out of stock

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

2
Out of stock

6

SPACER, LOWER This part replaces 62317-00B20.

62317-27C10

1
Out of stock

7

COVER SWGARM PIVOT This part replaces 61262-00B00.

61262-03B01

2
Out of stock

8

COLLAR, FRONT

62316-01B20

2
Out of stock

9

SPACER, CENTER This part replaces 62646-00B20.

62626-05D00

2
Out of stock

10

DUST SEAL, REAR

62226-14520

2
Out of stock

11

SPACER, REAR

62684-14520

2
Out of stock

12

WASHER, FRONT

08211-12281

2
Out of stock

13

WASHER, CENTER

08211-14322

2
Out of stock

14

SEAL This part replaces 62683-01B00.

62683-27C01

4
Out of stock

15

BOLT, FRONT

62658-00B20

1
Out of stock

16

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

17

SHAFT

62621-01B00

1
Out of stock

18

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

19

ROD SET, CUSHION LEVER | Includes Item(s) 20

62600-01890

1
Out of stock

20

BEARING

09263-20063

2
Out of stock

21

BOLT

62622-00B20

1
Out of stock

22

WASHER

08211-14322

2
Out of stock

23

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock
