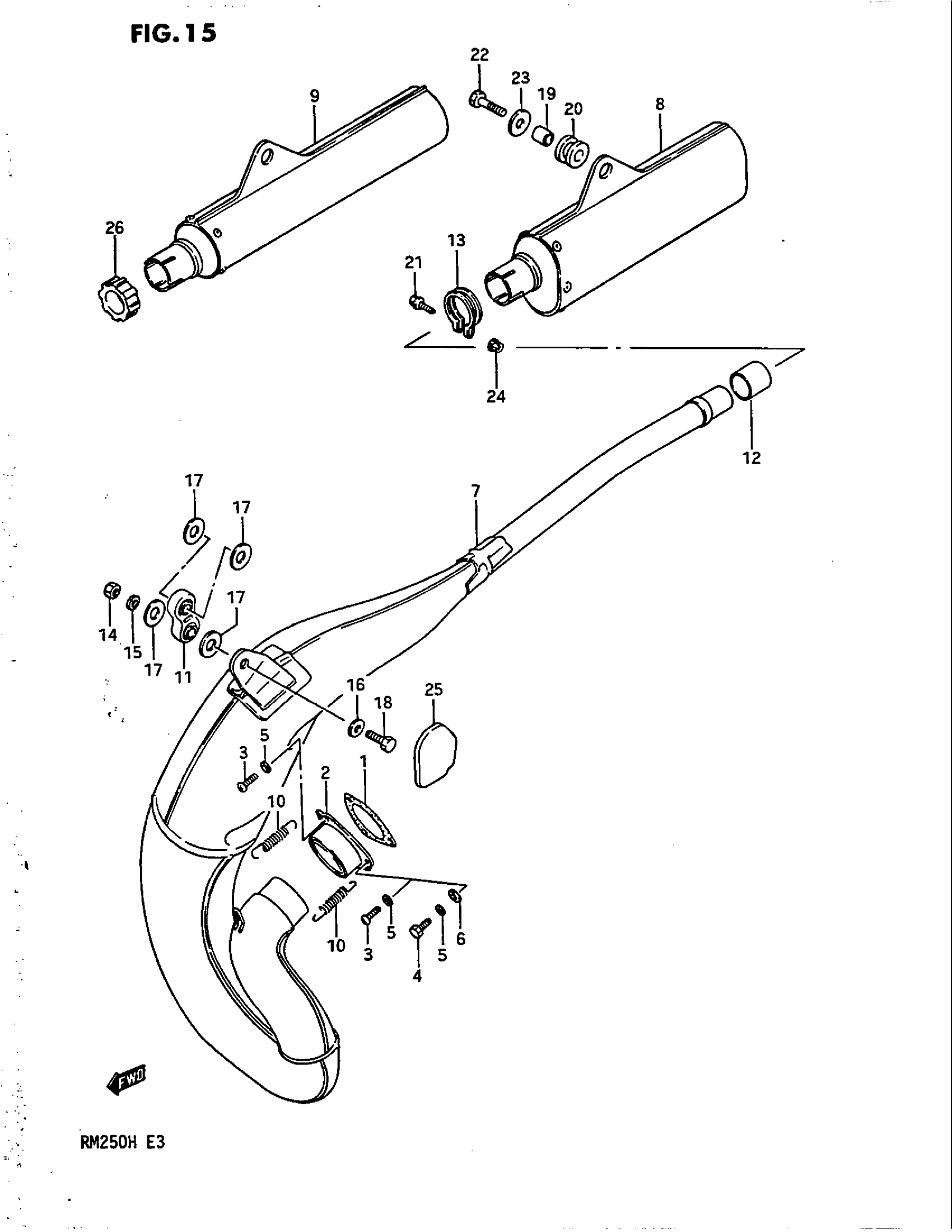

Suzuki RM250 (1987) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK This part replaces 14181-16300.

14181-16300-H17

$6.28

2

FLANGE, EXHAUST PIPE | MODEL G This part replaces 14170-00B00.

14170-00B20

Unavailable

2

FLANGE, EXHAUST PIPE | MODEL H

14170-00B20

Unavailable

3

SCREW | MODEL G This part replaces 02112-06164.

02112-0616A

$1.43

3

SCREW | MODEL H

02112-06167

$1.43

4

BOLT | MODEL H This part replaces 09128-06006.

09128-06057

$1.64

5

LOCK WASHER | MODEL G This part replaces 08321-21064.

08321-0106A

$1.83

5

LOCK WASHER | MODEL H This part replaces 08321-21067.

08321-01067

$1.83

6

WASHER (6X10X2) | MODEL H

09160-06106

$2.97

7

MUFFLER, 1ST | MODEL G

14310-00B13-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 14310-00B51-H01.

14310-00B51

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 14330-00B12-H01.

14330-00B50

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 14330-00B50-H01.

14330-00B50

Unavailable

10

SPRING

09443-12033

$5.20

11

DAMPER, MUFFLER

14770-40000

Unavailable

12

CONNECTOR, MUFFLER This part replaces 14771-14600.

14771-14601

Unavailable

13

CLAMP

14772-14600

Unavailable

14

NUT This part replaces 08310-22088.

08310-00087

$1.83

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

16

WASHER This part replaces 09160-08035.

09160-08130

$2.01

17

WASHER

09161-13001

Unavailable

18

BOLT (8X32)

09100-08176

$2.67

19

SPACER (8.4X12X13) | MODEL G

09180-08138

$2.87

19

SPACER (8.4X12X12) | MODEL H

09180-08033

$2.15

20

CUSHION

09320-11014

Unavailable

21

BOLT This part replaces 01517-06258.

01550-06257

$2.31

22

BOLT This part replaces 09100-08129.

01500-0825A

$2.21

23

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.10

24

NUT This part replaces 08316-26068.

08316-2006A

$2.87

25

CUSHION | MODEL H

14424-00B20

Unavailable

26

CUSHION, TAIL PIPE | MODEL H This part replaces 14652-00B00.

14652-00B01

Unavailable
