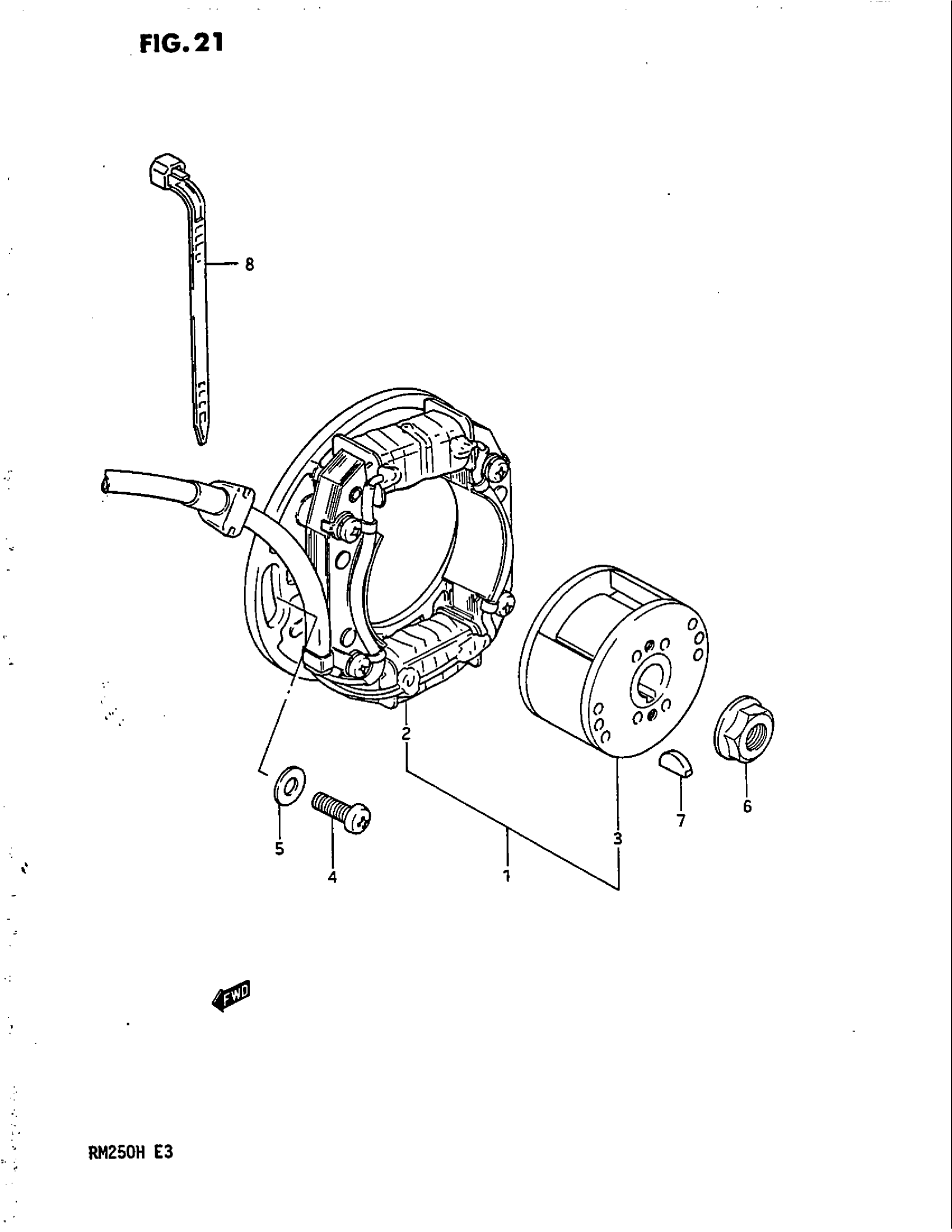

Suzuki RM250 (1987) MAGNETO (MODEL G) Diagram

MAGNETO ASSY | Includes Item(s) 2 - 3

32100-00B00

Unavailable

STATOR ASSY

32101-00B00

Unavailable

ROTOR

32102-14320

Unavailable

SCREW

02112-06167

$1.46

WASHER This part replaces 08322-21067.

08322-01067

$1.94

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.46

KEY This part replaces 08341-31049.

09420-04008

$3.18

CLAMP (L:125)

09407-14403

$2.31

CLAMP (L:235)

09407-25401

$4.33
