1987 Suzuki RM250 Crankshaft Diagram

← All diagrams

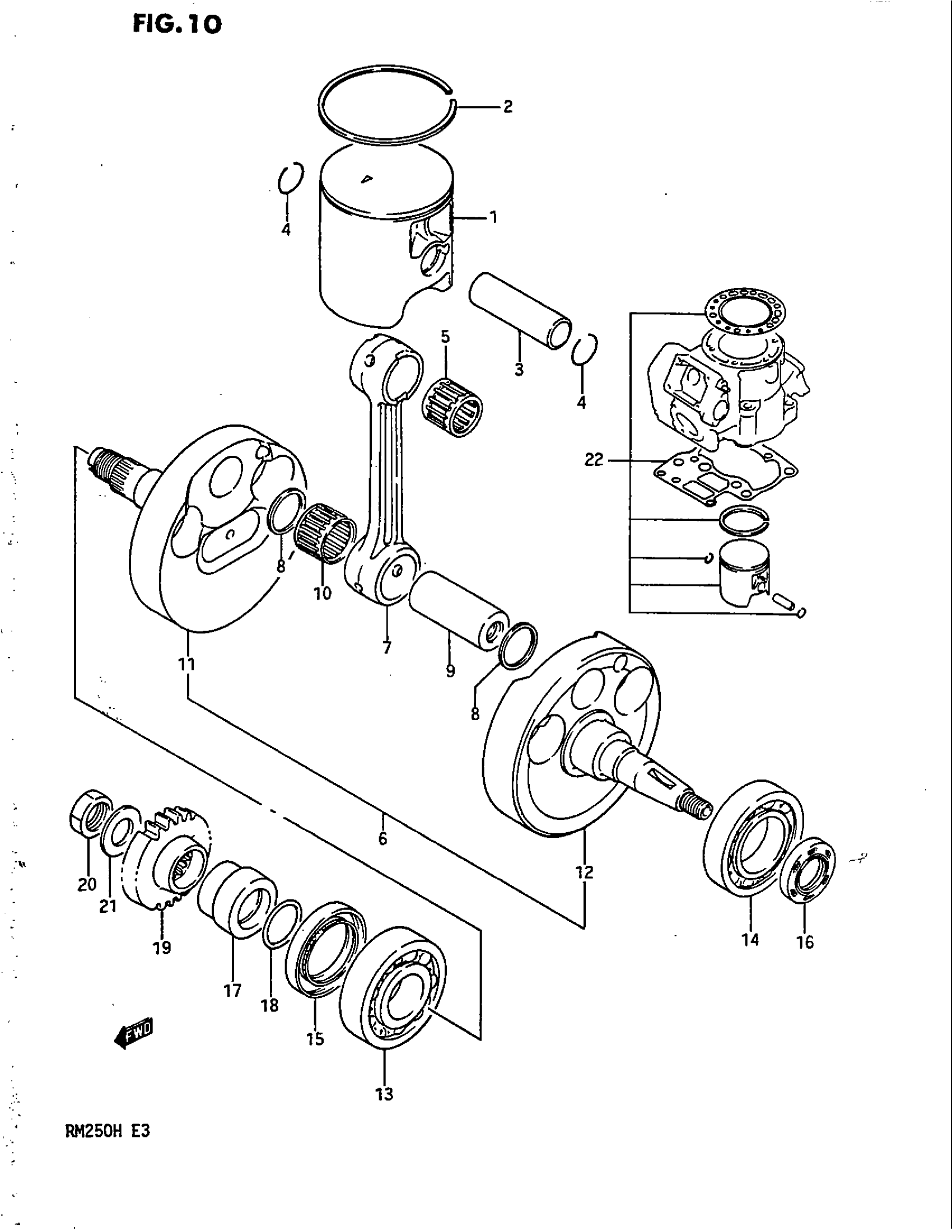

Find the part on the Crankshaft diagram for your 1987 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki RM250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12110-00B24-0F0

1
Out of stock

2

RING, PISTON This part replaces 12141-41600.

12141-41620

1
Out of stock

3

PIN, PISTON

12151-00B20

1
Out of stock

4

CIRCLIP

09381-18002

2
Out of stock

5

BEARING, PISTON PIN

09263-18016

1
Out of stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-00B20

1
Out of stock

7

ROD, CONNECTING This part replaces 12161-00B00.

12161-05D00

1
Out of stock

8

WASHER

09160-24015

2
Out of stock

9

PIN, CRANK

12210-00B20

1
Out of stock

10

BEARING This part replaces 09263-24019.

09263-24026

1
Out of stock

11

CRANKSHAFT, RH

12221-00B20

1
Out of stock

12

CRANKSHAFT, LH

12261-00B20

1
Out of stock

13

BEARING, RH

09262-25066

1
Out of stock

14

BEARING, LH

09262-30066

1
Out of stock

15

OIL SEAL, RH

09289-36003

1
Out of stock

16

OIL SEAL, LH (20X37X6) This part replaces 09283-20046.

09283-20051

1
Out of stock

17

SPACER, PRI DRIVE GEAR

12359-00B20

1
Out of stock

18

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

19

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

21111-14321

1
Out of stock

20

NUT

09140-16019

1
Out of stock

21

WASHER

09164-16002

1
Out of stock

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-00830.

12101-00832

1
Out of stock
