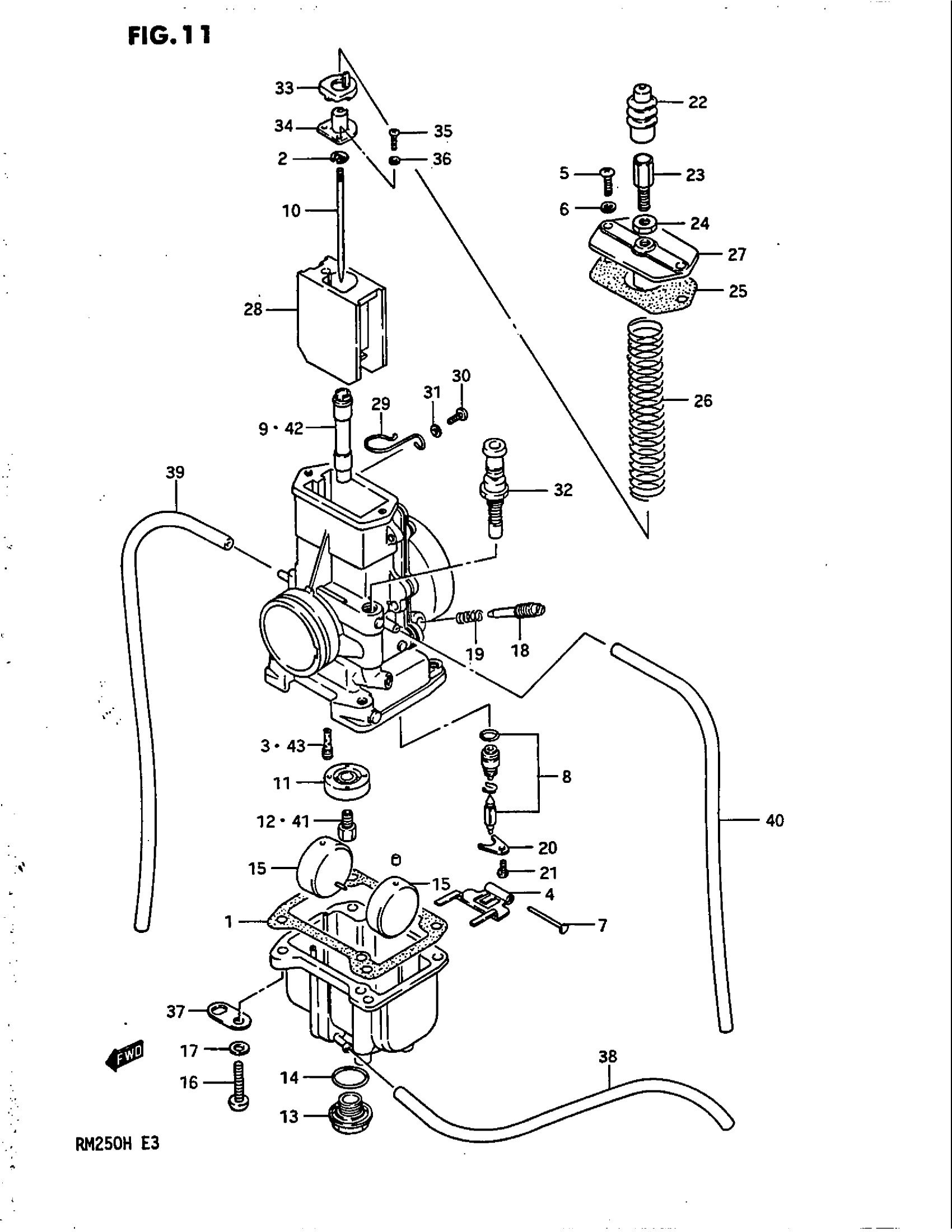

Suzuki RM250 (1987) CARBURETOR (MODEL G) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 37

13200-00B00

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$6.15

3

JET, PILOT (50)

09492-50010

Unavailable

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.24

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

7

PIN

13254-92311

$2.31

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-0)

09494-00357

Unavailable

10

NEEDLE, JET (6DJ33-3)

13383-00B00

Unavailable

11

RING

13331-14300

Unavailable

12

JET, MAIN (300)

09491-60007

$14.18

13

CAP, DRAIN

13247-32210

$17.20

14

O RING

13249-41310

$4.03

15

FLOAT

13252-18620

$20.55

16

SCREW This part replaces 02112-05206.

02112-0520B

$1.86

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.83

18

SCREW, PILOT AIR This part replaces 13269-46010.

13269-95110

$15.07

19

SPRING

13268-01010

$4.11

20

PLATE, NEEDLE VALVE

13373-39110

$6.25

21

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

22

CAP, ADJUSTER

13681-41510

$13.20

23

ADJUSTER, CABLE

13577-41612

$6.60

24

NUT

13661-16600

$4.37

25

GASKET, TOP

13266-14300

Unavailable

26

SPRING, THROTTLE VALVE

13573-14300

Unavailable

27

TOP

13261-14300

Unavailable

28

THROTTLE VALVE (CA:3.0)

13551-00B00

Unavailable

29

CLIP

13692-14500

Unavailable

30

SCREW This part replaces 02112-04167.

02112-0416A

$1.24

31

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

32

PLUNGER ASSY

13400-14500

Unavailable

33

RING

13387-14230

Unavailable

34

CONNECTOR

13398-14310

Unavailable

35

SCREW This part replaces 02112-03106.

02112-0310B

$0.89

36

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.78

37

PLATE

13693-13A00

Unavailable

38

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$4.68

39

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$4.68

40

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$4.68

41

JET, MAIN (280) | OPT This part replaces 09491-56001.

09491-56003

Unavailable

41

JET, MAIN (290) | OPT

09491-58002

Unavailable

41

JET, MAIN (310) | OPT

09491-62005

$12.87

41

JET, MAIN (330) | OPT

09491-66002

$12.38

41

JET, MAIN (340) | OPT

09491-68002

$12.38

42

JET, NEEDLE (R-2) | OPT

09494-00453

Unavailable

42

JET, NEEDLE (Q-6) | OPT

09494-00356

Unavailable

42

JET, NEEDLE (Q-8) | OPT

09494-00393

Unavailable

43

JET, PILOT (40) | OPT

09492-40004

Unavailable

43

JET, PILOT (60) | OPT

09492-60004

Unavailable
