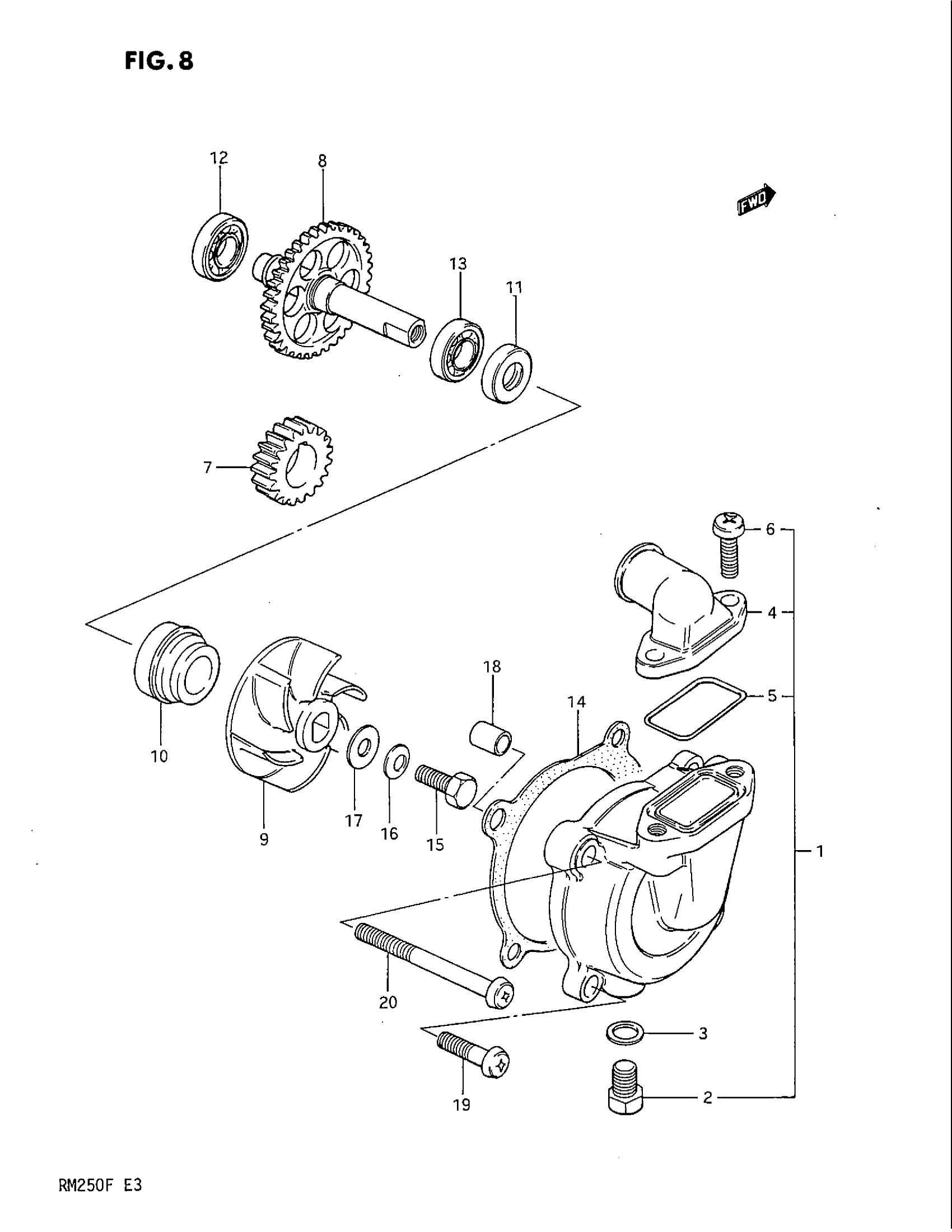

Suzuki RM250 (1985) WATER PUMP Diagram

#

Description
Price

1

CASE,WATER PUMP | MODEL E This part replaces 17410-14300.

17410-1431V

Unavailable

1

CASE,WATER PUMP | MODEL F; Includes Item(s) 2 - 6 This part replaces 17410-14310.

17410-1431V

Unavailable

2

BOLT, DRAIN

17415-14300

$2.95

3

GASKET (8.2X14X1) | MODEL E This part replaces 17413-14100.

09168-08016

$1.70

3

GASKET (8.2X14X1) | MODEL F This part replaces 09168-08008.

09168-08016

$1.70

4

CONNECTOR | MODEL E This part replaces 17412-14300.

17412-28E00

Unavailable

4

CONNECTOR | MODEL F This part replaces 17412-14310.

17412-28E00

Unavailable

5

O RING

17414-14300

$2.86

6

SCREW This part replaces 02112-06165.

02112-0616A

$1.46

7

GEAR, DRIVE (NT:19)

17451-14300

Unavailable

8

SHAFT (NT:36)

17461-14300

Unavailable

9

IMPELLER

17491-14300

Unavailable

10

.SEAL,MECHANICAL | MODEL E This part replaces 17470-14100.

17470-02F11

$27.96

10

.SEAL,MECHANICAL | MODEL F This part replaces 17470-19A00.

17470-02F11

$27.96

11

.SEAL OIL (10X21X5)

09283-10004

$4.61

12

BEARING, INNER

09262-10004

$35.53

13

BEARING This part replaces 09262-12003.

08113-69010

$21.64

14

GASKET, WATER PUMP CASE This part replaces 17431-14302.

17431-14303

Unavailable

15

BOLT

09100-06099

$2.08

16

LOCK WASHER

09164-06006

$2.66

17

GASKET This part replaces 09168-06016.

09168-06025

$2.80

18

PIN

04211-09129

$1.70

19

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

20

SCREW This part replaces 02112-06605.

02112-0660B

$3.30
