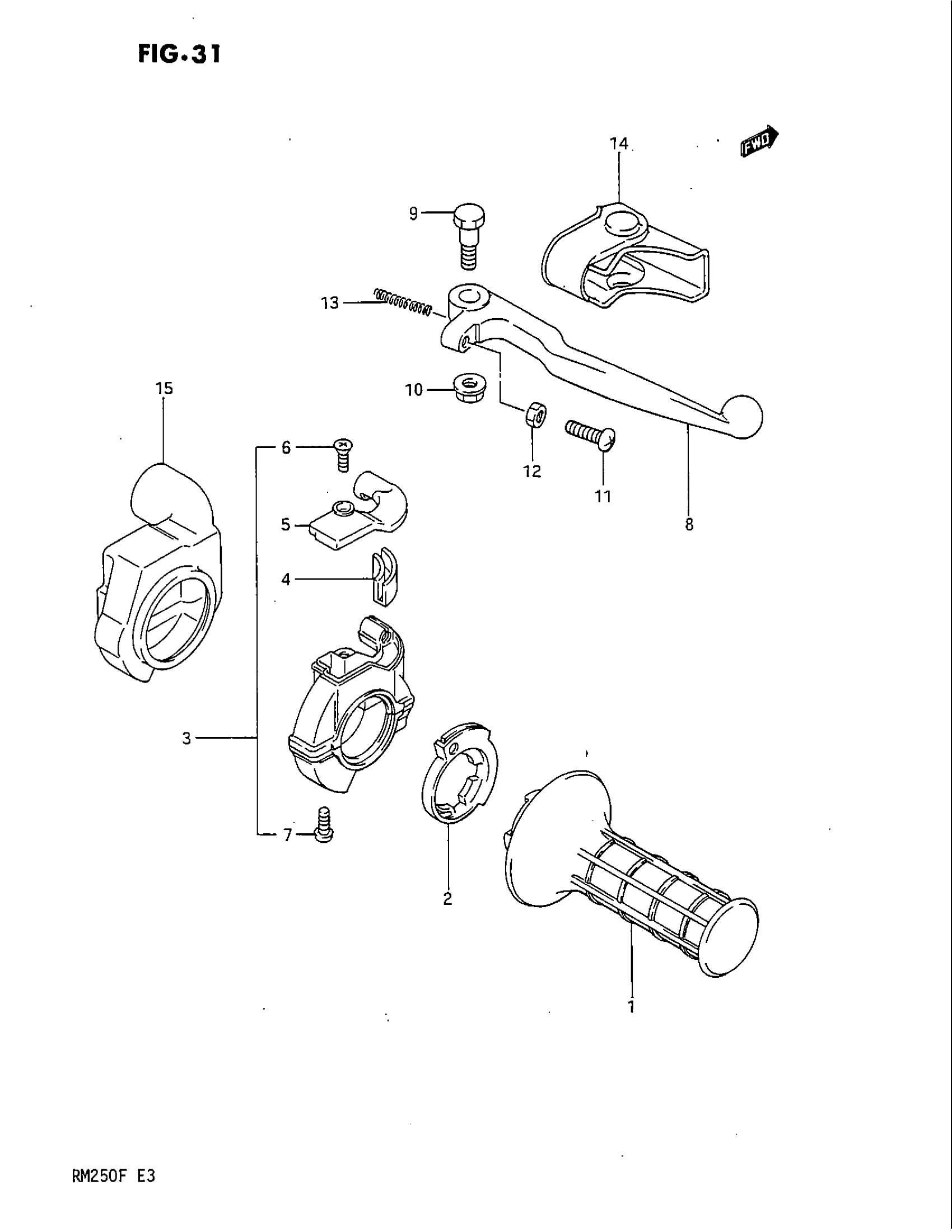

Suzuki RM250 (1985) RIGHT HANDLE SWITCH (MODEL F) Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-14300.

57110-27C00

$25.23

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-14302

Unavailable

4

GUIDE PIECE

57122-14301

Unavailable

5

COVER

57129-14302

Unavailable

6

SCREW This part replaces 02132-04068.

02122-0410A

$1.25

7

SCREW This part replaces 02112-05168.

02112-05167

$2.01

8

LEVER, BRAKE This part replaces 57421-14500.

57421-14502

Unavailable

9

BOLT, BRAKE LEVER

57431-14500

$6.01

10

NUT This part replaces 57442-14500.

08316-1006B

$2.57

11

BOLT, ADJUST This part replaces 57431-14510.

57431-14511

$5.71

12

NUT This part replaces 08310-12055.

08310-0005A

$1.90

13

SPRING, RETURN This part replaces 57318-14500.

57318-14502

$4.28

14

COVER, BRAKE LEVER This part replaces 57341-14500.

57341-14501

$10.58

15

COVER, THROTTLE

57129-14501

Unavailable
