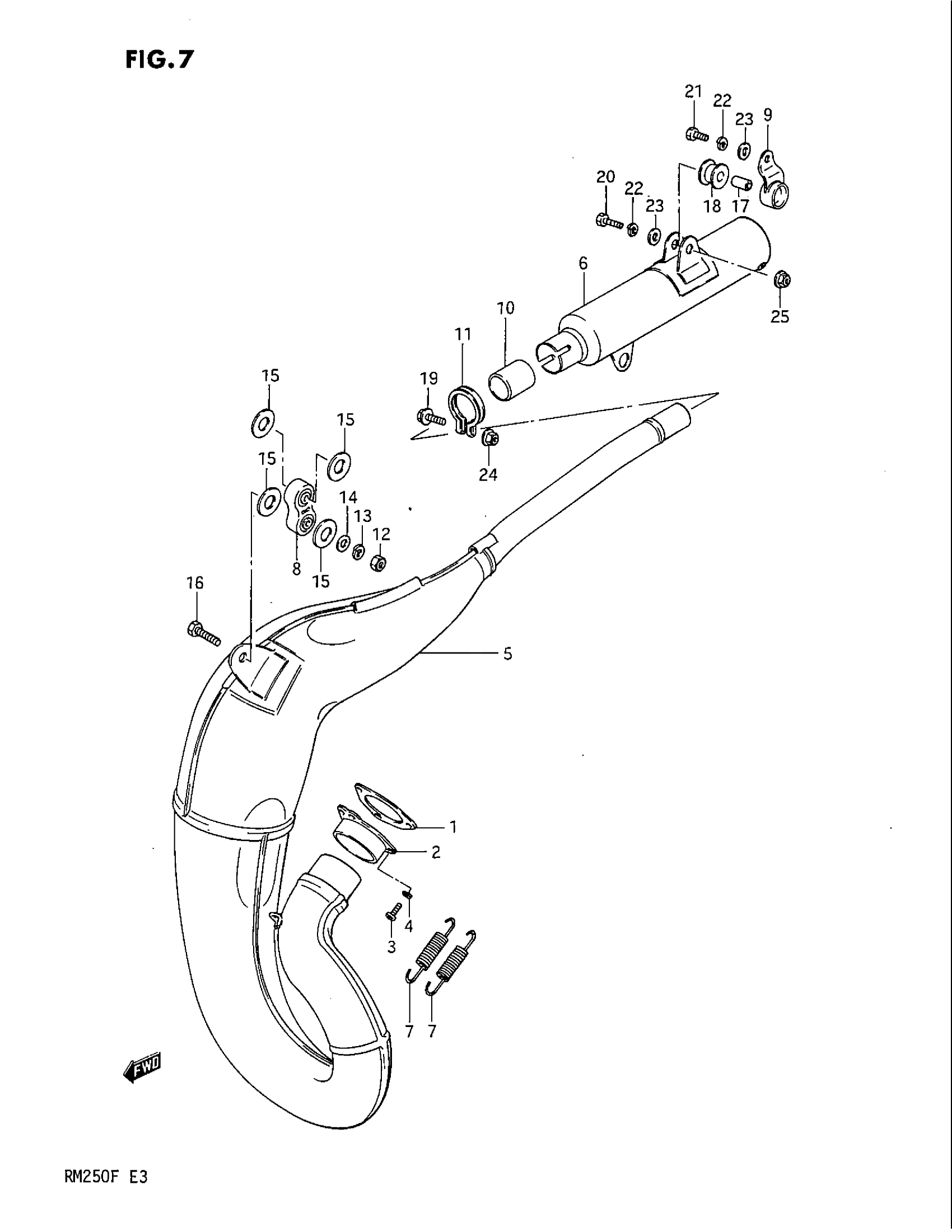

Suzuki RM250 (1985) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK This part replaces 14181-16300.

14181-16300-H17

$6.28

2

FLANGE, EXHAUST PIPE This part replaces 14170-14301.

14170-00B20

Unavailable

3

SCREW This part replaces 02112-06165.

02112-0616A

$1.43

4

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.83

5

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 14310-14611-H01.

14310-14614

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 14310-14614-H01.

14310-14614

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 14330-14611-H01.

14330-14612

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 14330-14612-H01.

14330-14612

Unavailable

7

SPRING This part replaces 09443-12024.

09443-12024-XC0

Unavailable

8

DAMPER, MUFFLER

14770-40000

Unavailable

9

DAMPER, MUFFLER

14770-14600

Unavailable

10

CONNECTOR, MUFFLER This part replaces 14771-14600.

14771-14601

Unavailable

11

CLAMP

14772-14600

Unavailable

12

NUT This part replaces 08310-22088.

08310-00087

$1.83

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

14

WASHER This part replaces 09160-08035.

09160-08130

$2.01

15

WASHER

09161-13001

Unavailable

16

BOLT (8X32)

09100-08176

$2.67

17

SPACER This part replaces 09180-08102.

09180-08194

$2.80

18

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.20

19

BOLT This part replaces 01517-06258.

01550-06257

$2.31

20

BOLT This part replaces 01107-08358.

01500-0835B

$2.80

21

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

23

WASHER This part replaces 08322-11088.

08322-01087

$1.86

24

NUT This part replaces 08316-26068.

08316-2006A

$2.87

25

NUT This part replaces 08316-26088.

08316-20087

$3.00
