1985 Suzuki RM250 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1985 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

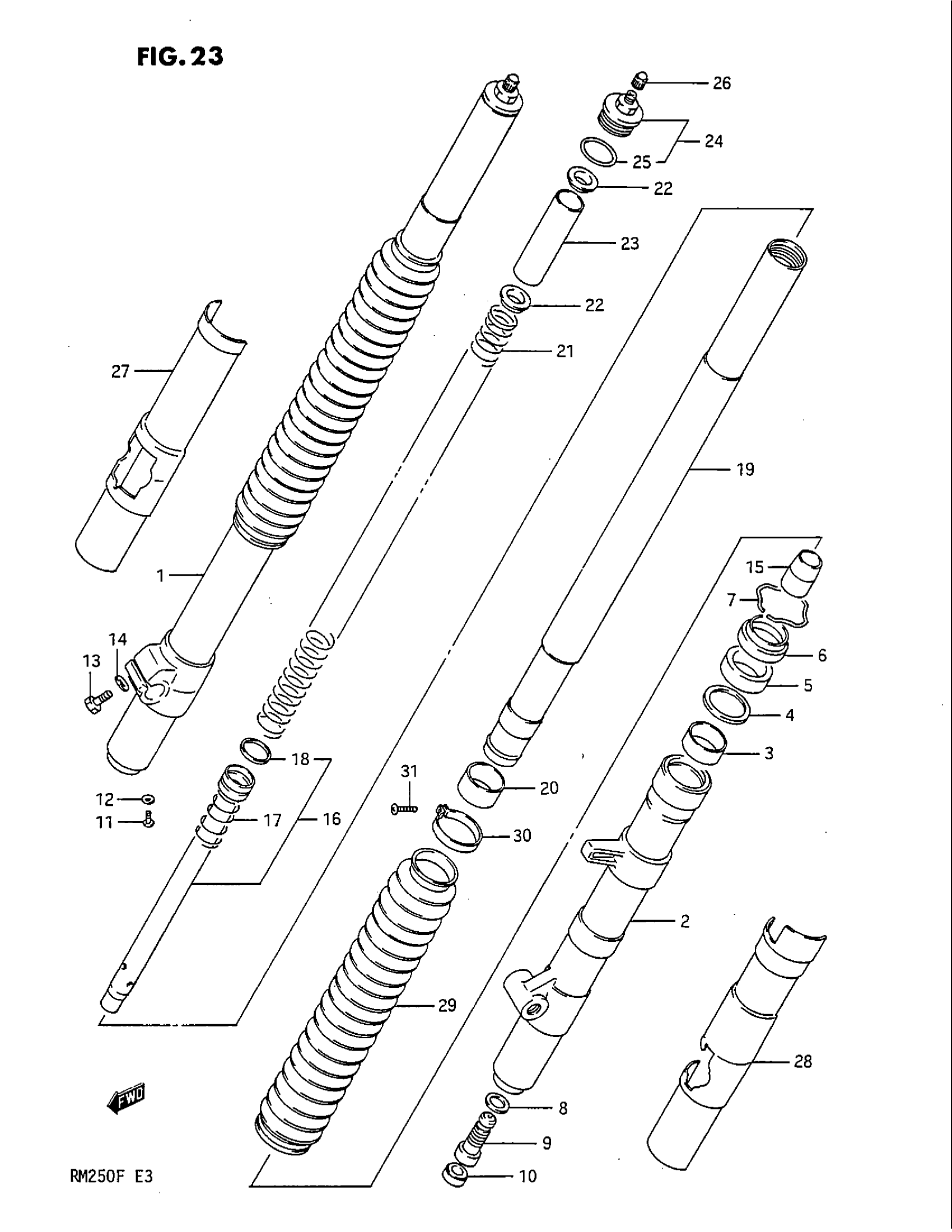

1985 Suzuki RM250 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH

51103-14630

1
Out of stock

DAMPER ASSY, LH | Includes Item(s) 1 - 28

51104-14630

1
Out of stock

1

OUTER TUBE, RH

51130-14500

1
Out of stock

2

OUTER TUBE, LH

51140-14520

1
Out of stock

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

2
Out of stock

4

WASHER

51158-14200

2
Out of stock

5

OIL SEAL

51153-14330

2
Out of stock

6

DUST SEAL

51173-14330

2
Out of stock

7

RING, STOPPER

51156-14200

2
Out of stock

8

GASKET

51148-14330

2
Out of stock

9

VALVE

51770-14620

2
Out of stock

10

CAP

51189-14500

2
Out of stock

11

2

$1.67

In stock

12

GASKET

51183-03010

2
Out of stock

13

BOLT This part replaces 01107-08308.

01500-08307

2
Out of stock

14

2

$2.28

In stock

15

PIECE, OIL LOCK

51195-14330

2
Out of stock

16

CYLINDER

51146-14630

2
Out of stock

17

SPRING

51177-14330

2
Out of stock

18

RING

51196-14330

2
Out of stock

19

INNER TUBE

51110-14520

2
Out of stock

20

PISTON

51121-14200

2
Out of stock

21

SPRING

51171-14620

2
Out of stock

22

GUIDE, SPRING This part replaces 51172-14500.

51172-14200

4
Out of stock

23

SPACER

51176-14620

2
Out of stock

24

CAP

51351-14500

2
Out of stock

25

.O RING This part replaces 51117-14200.

51117-14201

2
Out of stock

26

CAP, VALVE

51294-20400

2
Out of stock

27

PROTECTOR, RH (YELLOW)

51201-14500-163

1
Out of stock

28

PROTECTOR, LH (YELLOW)

51202-14501-163

1
Out of stock

29

BOOT This part replaces 51571-14500-19F.

51571-14500-38K

2
Out of stock

30

BAND, BOOT UPPER This part replaces 51575-14520.

51575-14500

2
Out of stock

31

2

$1.67

In stock
