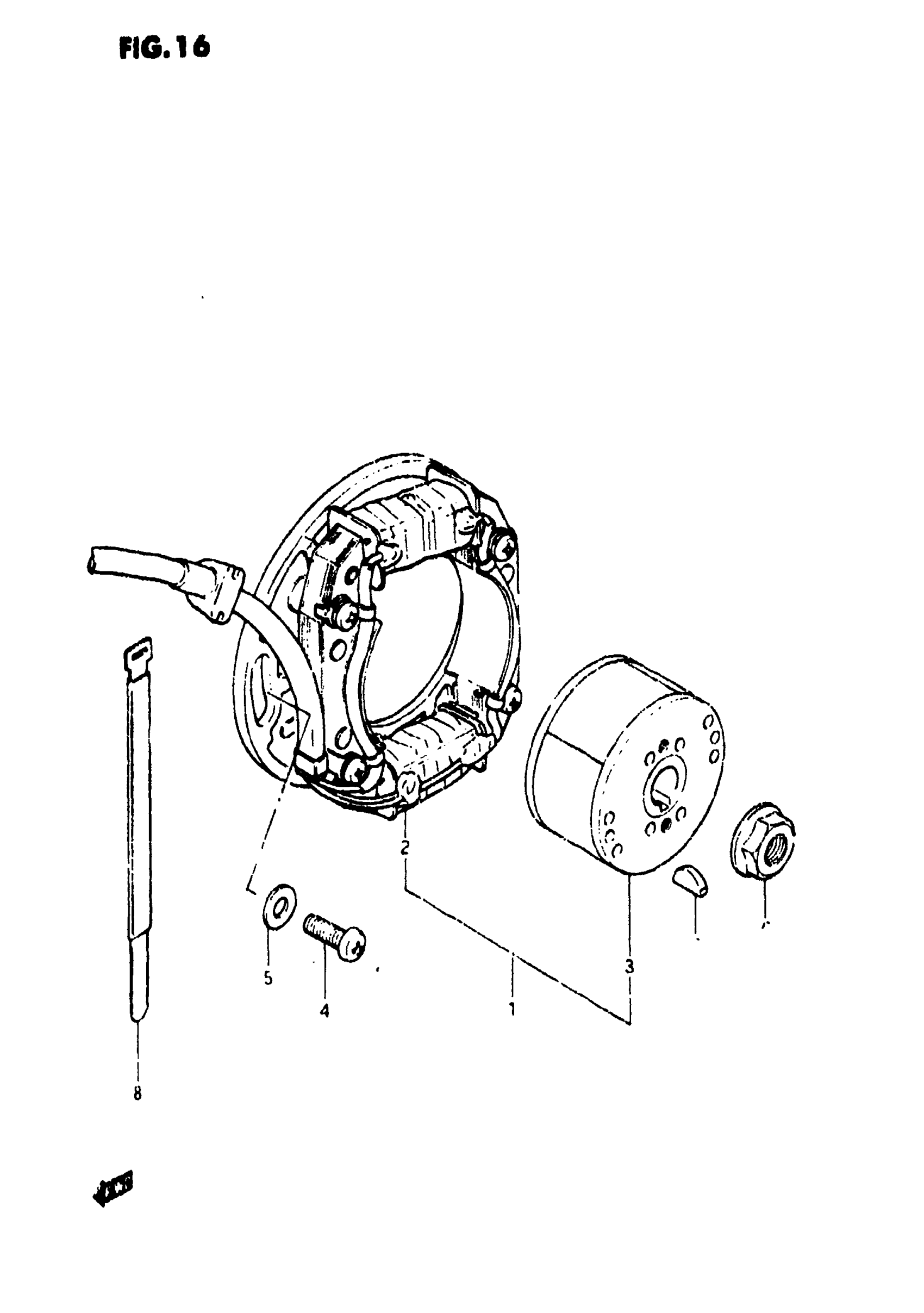

Suzuki RM250 (1983) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL Z

32100-14310

Unavailable

1

STATOR ASSY | MODEL D; Includes Item(s) 2 - 3 This part replaces 32100-14320.

32101-00B00

Unavailable

2

STATOR ASSY | MODEL Z

32101-14310

Unavailable

2

STATOR ASSY | MODEL D This part replaces 32101-14320.

32101-00B00

Unavailable

3

ROTOR | MODEL Z

32102-14310

Unavailable

3

ROTOR | MODEL D

32102-14320

Unavailable

4

SCREW This part replaces 02112-06168.

02112-06167

$1.46

5

WASHER This part replaces 08322-21068.

08322-01067

$1.94

6

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.46

7

KEY This part replaces 08341-31049.

09420-04008

$3.18

8

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

8

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
