1983 Suzuki RM250 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

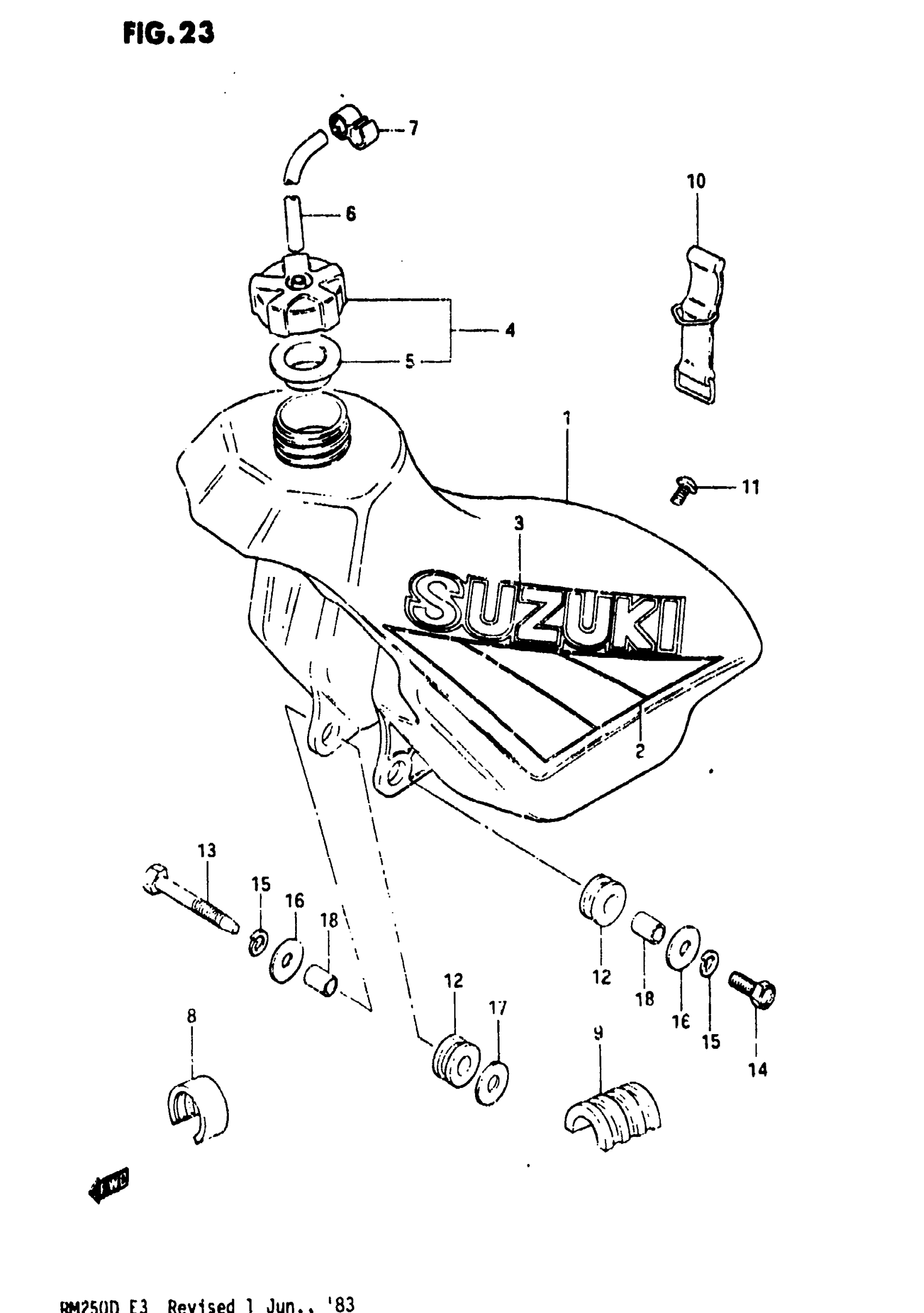

1983 Suzuki RM250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44101-14821-163

1
Out of stock

2

TAPE SET

68110-14310-74H

1
Out of stock

3

EMBLEM

68111-40210-64D

2
Out of stock

4

CAP SET,FUEL TA This part replaces 44200-40820.

44200-40822

1
Out of stock

5

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

7

CLAMP

44486-40200

1
Out of stock

8

CUSHION, UPPER FRONT

44541-14300

1
Out of stock

9

CUSHION, UPPER REAR

44542-14300

1
Out of stock

10

BAND, REAR

44560-41300

1
Out of stock

11

SCREW This part replaces 09125-06009.

09125-06073

1
Out of stock

12

CUSHION

09320-12030

2
Out of stock

13

BOLT This part replaces 01704-08758.

01500-0875B

1
Out of stock

14

BOLT This part replaces 01107-08258.

01500-08257

1
Out of stock

15

2

$2.28

In stock

16

WASHER This part replaces 09160-08035.

09160-08130

2
Out of stock

17

WASHER, RH

09160-08032

1
Out of stock

18

SPACER This part replaces 09180-08003.

09180-08191

2
Out of stock
