1980 Suzuki RM250 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1980 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

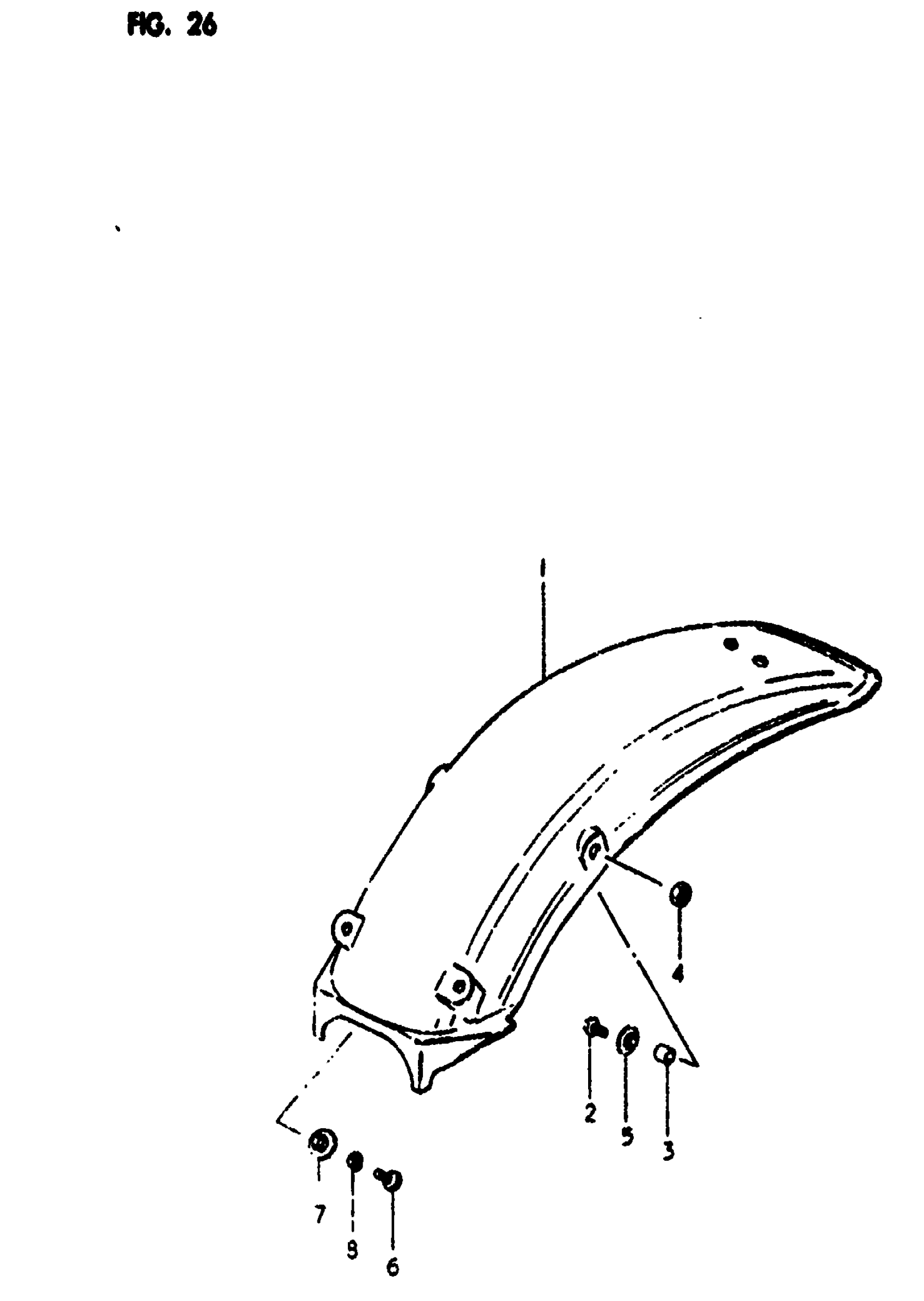

1980 Suzuki RM250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW) This part replaces 63111-40211-163.

63111-40213-163

1
Out of stock

2

SCREW

02142-06167

2
Out of stock

3

2

$2.22

In stock

4

NUT This part replaces 08319-31068.

08319-31067

2
Out of stock

5

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

6

2

$2.10

In stock

7

WASHER

09169-06016

2
Out of stock

8

2

$2.28

In stock
← Front Fender Stand - Footrest →
