1980 Suzuki RM250 Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1980 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

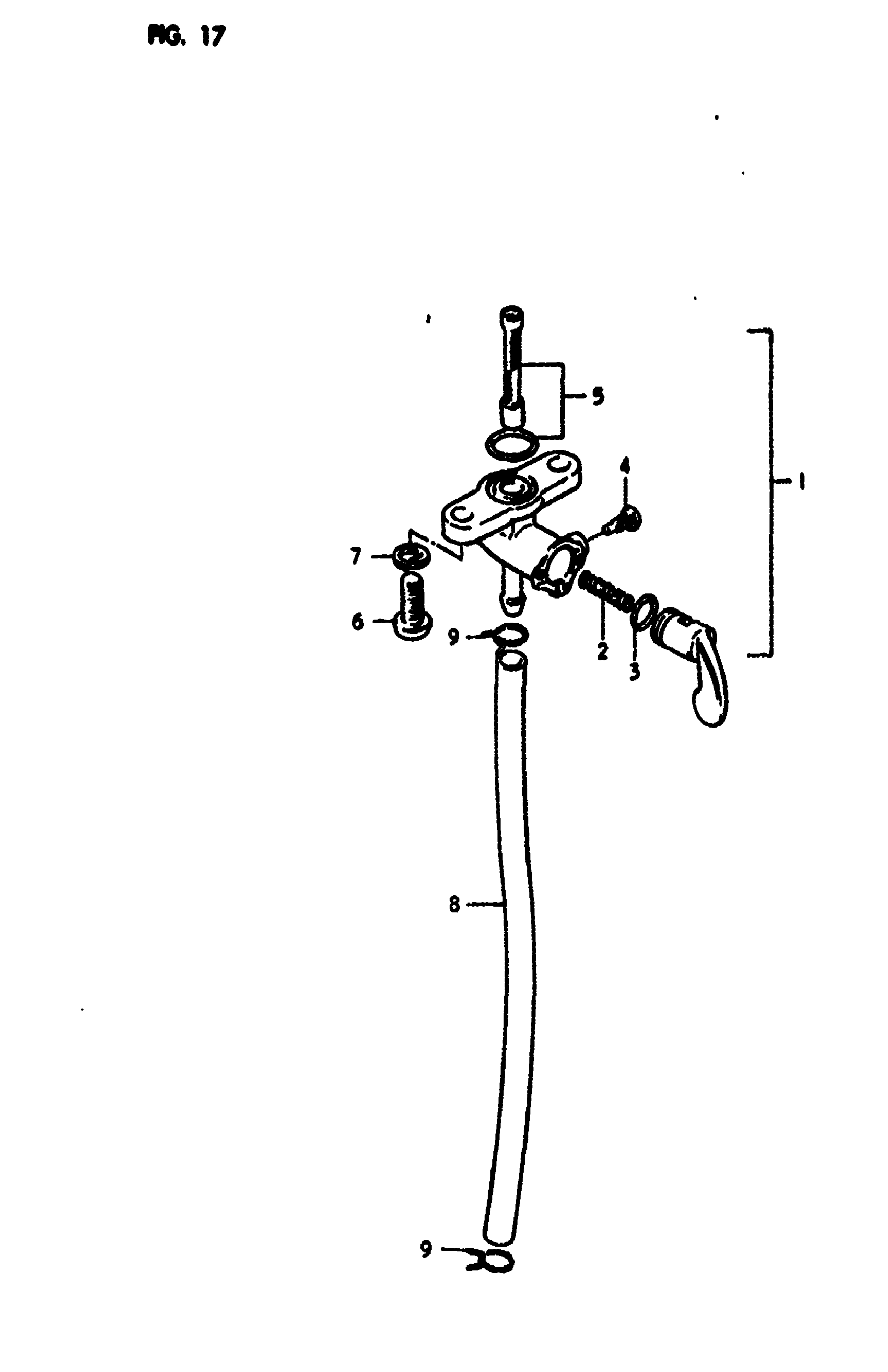

1980 Suzuki RM250 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY, FUEL | Includes Item(s) 2 - 5 This part replaces 44300-41370.

44300-41371

1
Out of stock

2

SPRING This part replaces 44357-41370.

44357-32470

1
Out of stock

3

O RING

44353-41370

1
Out of stock

4

SCREW

44343-41370

1
Out of stock

5

FILTER SET

44300-41810

1
Out of stock

6

SCREW This part replaces 02112-06168.

02112-06167

2
Out of stock

7

2

$2.28

In stock

8

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

9

CLIP This part replaces 09401-08404.

09401-08301

2
Out of stock
← Carburetor Fuel Tank →

More Air & Fuel diagrams
