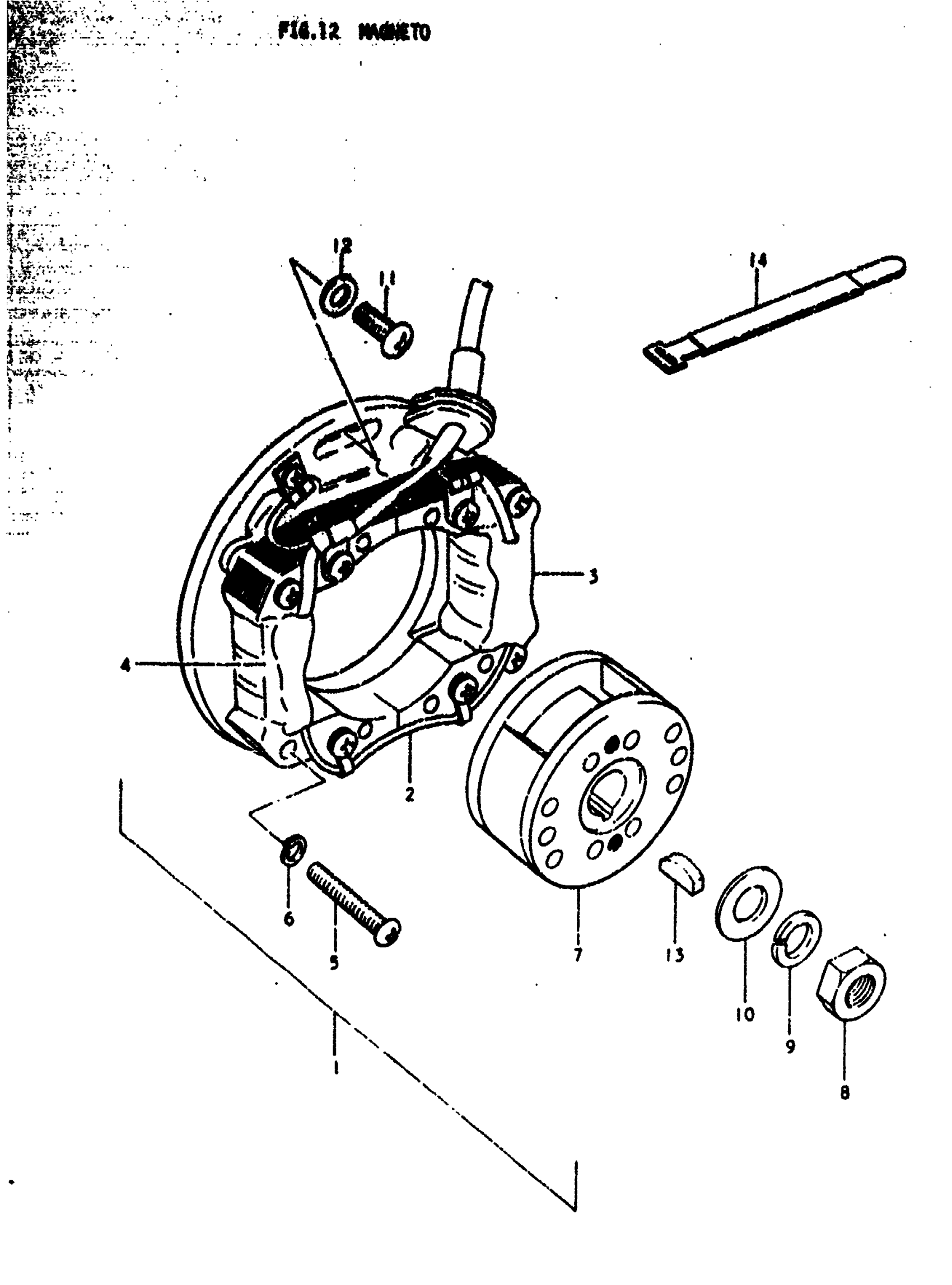

Suzuki RM250 (1979) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 7

32100-41112

Unavailable

2

STATOR ASSY

32101-41111

Unavailable

3

COIL, PRIMARY

32140-28601

Unavailable

4

COIL, PULSER

32150-41110

Unavailable

5

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

7

ROTOR This part replaces 32102-41112.

32102-14310

Unavailable

8

NUT This part replaces 09140-10003.

09140-10041

$2.21

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

10

WASHER This part replaces 08322-21108.

08322-01107

$1.88

11

SCREW This part replaces 02112-06168.

02112-06167

$1.43

12

WASHER This part replaces 08322-21068.

08322-01067

$1.86

13

KEY This part replaces 08341-31049.

09420-04008

$3.08

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
