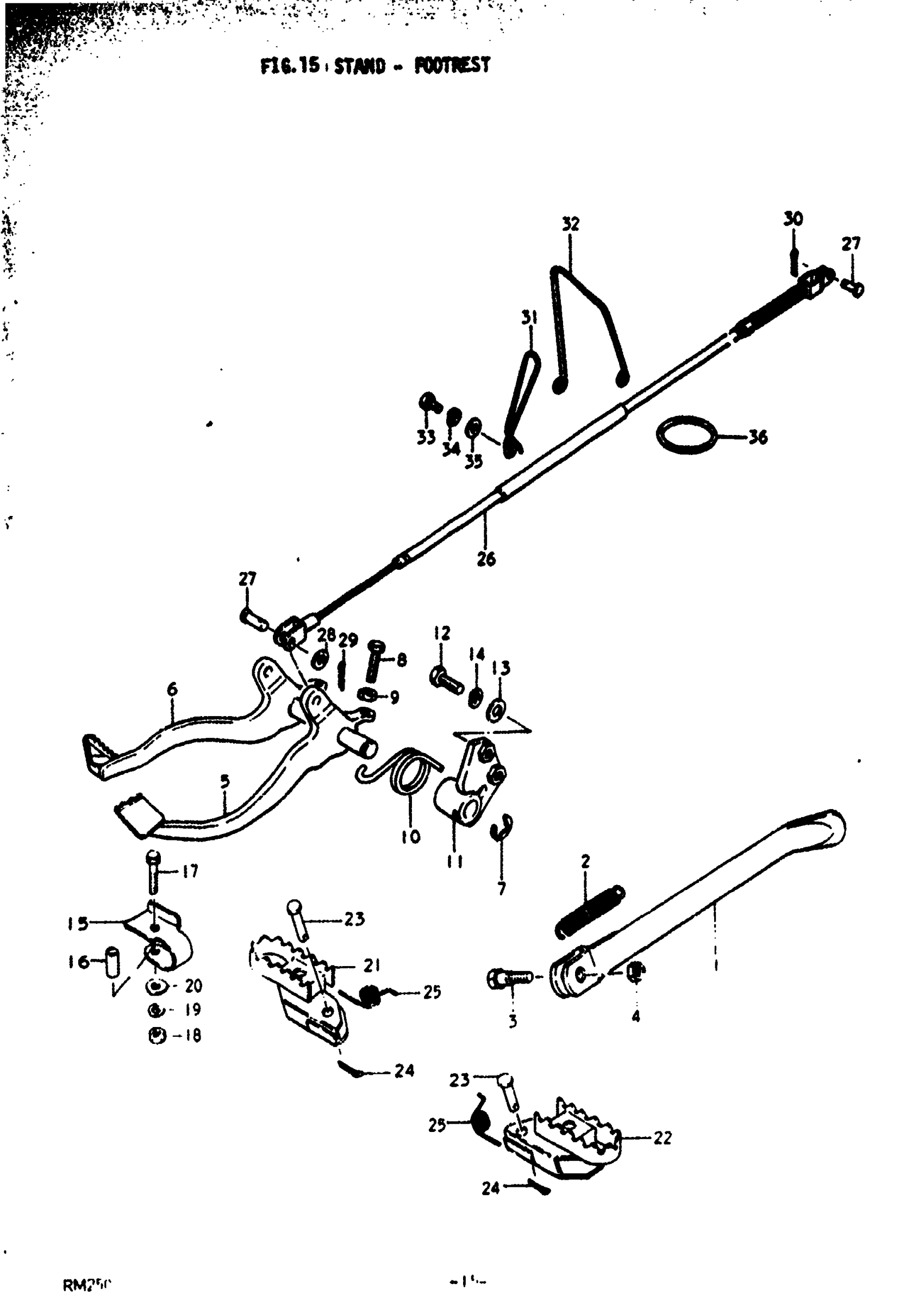

Suzuki RM250 (1978) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP | A,B,C,C2

42310-41100

Unavailable

2

SPRING | A,B,C,C2 This part replaces 09443-14005.

09443-14017

$2.80

3

BOLT | A,B,C,C2; 10x30

09100-10067

$2.71

4

NUT | A,B,C,C2 This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE | A; TO 43110-41101 This part replaces 43110-41100.

43110-41202

Unavailable

6

PEDAL, BRAKE | A,B,C; TO 43110-41102 This part replaces 43110-41101.

43110-41202

Unavailable

6

PEDAL, BRAKE | C2 This part replaces 43110-41102.

43110-41202

Unavailable

7

E-RING, BUSH | A,B,C,C2 This part replaces 08332-11098.

08332-1109A

$1.81

8

BOLT | A,B,C,C2; 6x23

09100-06009

$1.79

9

.NUT | A,B,C,C2 This part replaces 08310-11068.

08310-00067

$1.83

10

SPRING | A,B,C,C2

09448-28002

Unavailable

11

BRACKET, BRAKE PEDAL BOSS | A,B

43130-41100

Unavailable

11

BRACKET, BRAKE PEDAL BOSS | C,C2

43130-41101

Unavailable

12

BOLT | A,B,C,C2 This part replaces 01107-08206.

01500-0820A

$2.87

13

WASHER | A,B,C,C2 This part replaces 08322-21088.

08322-01087

$1.86

14

.LOCK WASHER | A,B,C,C2 This part replaces 08321-21088.

08321-01087

$1.83

15

GUARD, STONE | A

43160-41100

Unavailable

16

SPACER | A; 6.5x14x15

43162-41990

Unavailable

17

BOLT | A This part replaces 01107-06358.

64455-07L00

$1.61

18

.NUT | A This part replaces 08310-11068.

08310-00067

$1.83

19

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$1.83

20

WASHER (6.5X18X2) | A; 6.5x18x2 This part replaces 09160-06013.

09160-06121

$3.67

21

FOOTREST, RH | A,B

43550-41100

Unavailable

21

FOOTREST,FRONT, | C,C2 This part replaces 43550-41102.

43550-48501

$45.57

22

FOOTREST, RH | A,B

43560-41100

Unavailable

22

FOOTREST,FRONT, | C,C2 This part replaces 43560-41102.

43560-48501

$42.95

23

PIN | A,B

09200-08002

$1.97

23

PIN | C,C2

09200-10008

$2.64

24

COTTER PIN | A,B,C,C2 This part replaces 04111-20208.

04111-2020A

$1.22

25

SPRING | A,B

09448-14012

$2.80

25

SPRING | C,C2

09448-15004

$2.33

26

CABLE, REAR BRAKE | A,B This part replaces 58510-41100.

58510-41101

Unavailable

26

CABLE, REAR BRAKE | C; FROM 58510-41100

58510-41101

Unavailable

26

CABLE, REAR BRAKE | C2

58510-41110

Unavailable

27

PIN | A,B,C,C2

09200-05001

$1.52

28

WASHER | A,B,C,C2 This part replaces 08322-21068.

08322-01067

$1.86

29

COTTER PIN | A,B,C,C2 This part replaces 04111-20208.

04111-2020A

$1.22

30

.COTTER PIN | A,B,C,C2 This part replaces 04111-20158.

04111-2015A

$1.22

31

GUIDE, REAR BRAKE CABLE | A,B,C

58621-41100

Unavailable

32

GUIDE, REAR BRAKE CABLE | C2

58622-41110

Unavailable

33

BOLT | A,B,C This part replaces 01107-06128.

01500-06127

$1.97

33

BOLT, CANISTER | C2 This part replaces 01107-06168.

01500-06167

$1.97

34

LOCK WASHER | A,B,C This part replaces 08321-21068.

08321-01067

$1.83

35

WASHER | A,B,C This part replaces 08322-21068.

08322-01067

$1.86

36

O RING | C2

58642-41300

$6.22
