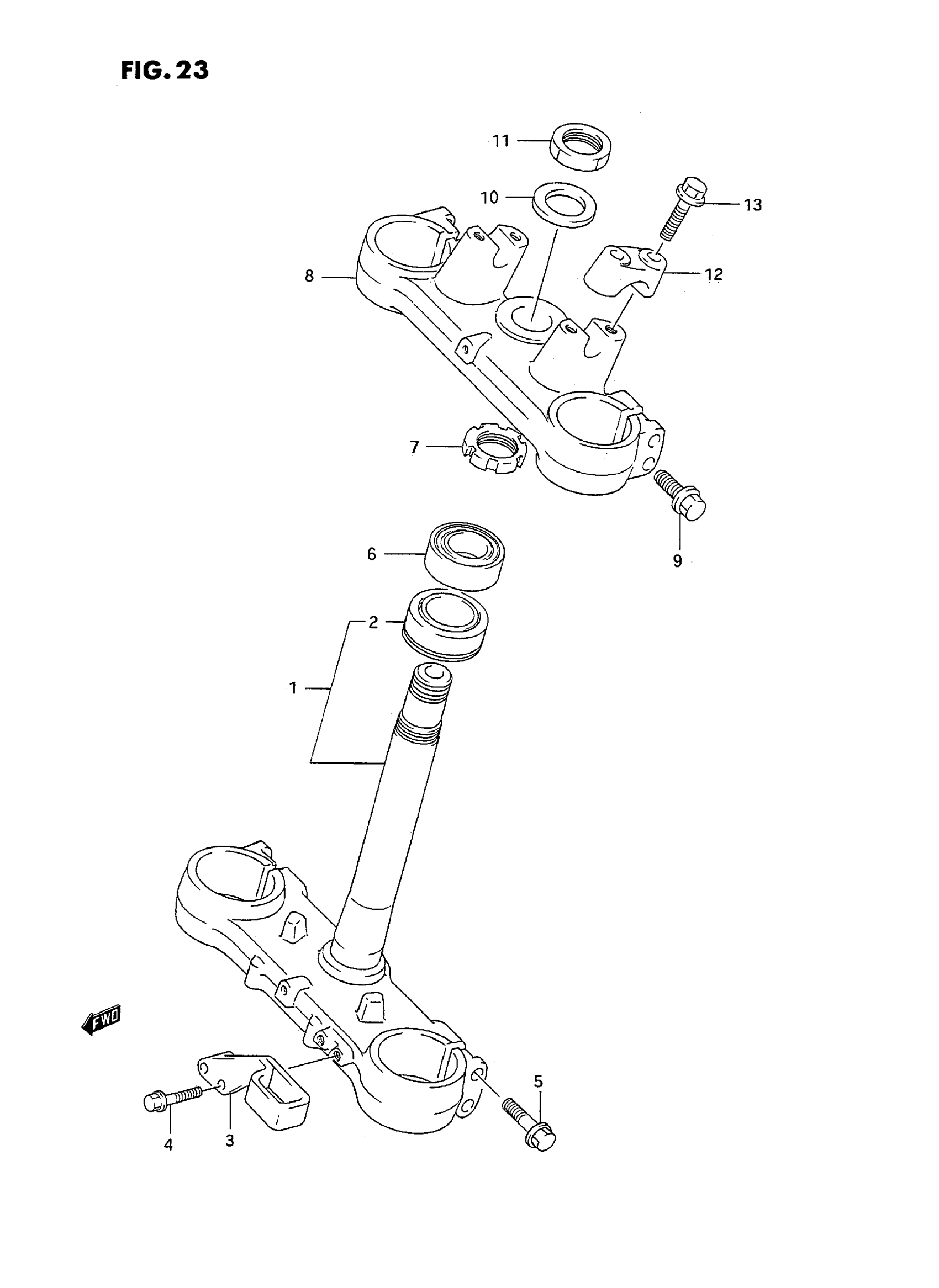

Suzuki RM125S (1995) STEERING STEM (MODEL N) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 This part replaces 51410-43D00.

51410-43D01

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

3

GUIDE, HOSE

58621-27C40

$23.52

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.01

5

BOLT This part replaces 51328-27C40.

51166-27E30

$4.11

6

BEARING

09265-28003

Unavailable

7

NUT, STEERING

51631-28C10

Unavailable

8

HEAD, STEERING STEM This part replaces 51310-27C40.

51310-28E00

Unavailable

9

BOLT This part replaces 51328-27C40.

51166-27E30

$4.11

10

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$20.30

11

NUT, STEM HEAD

51353-27C40

$31.45

12

HOLDER, HANDLE

56211-27100

$20.22

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.66

14

REFER TO FIG.23A(E-11) FOR

SPECIAL NOTE

Unavailable
