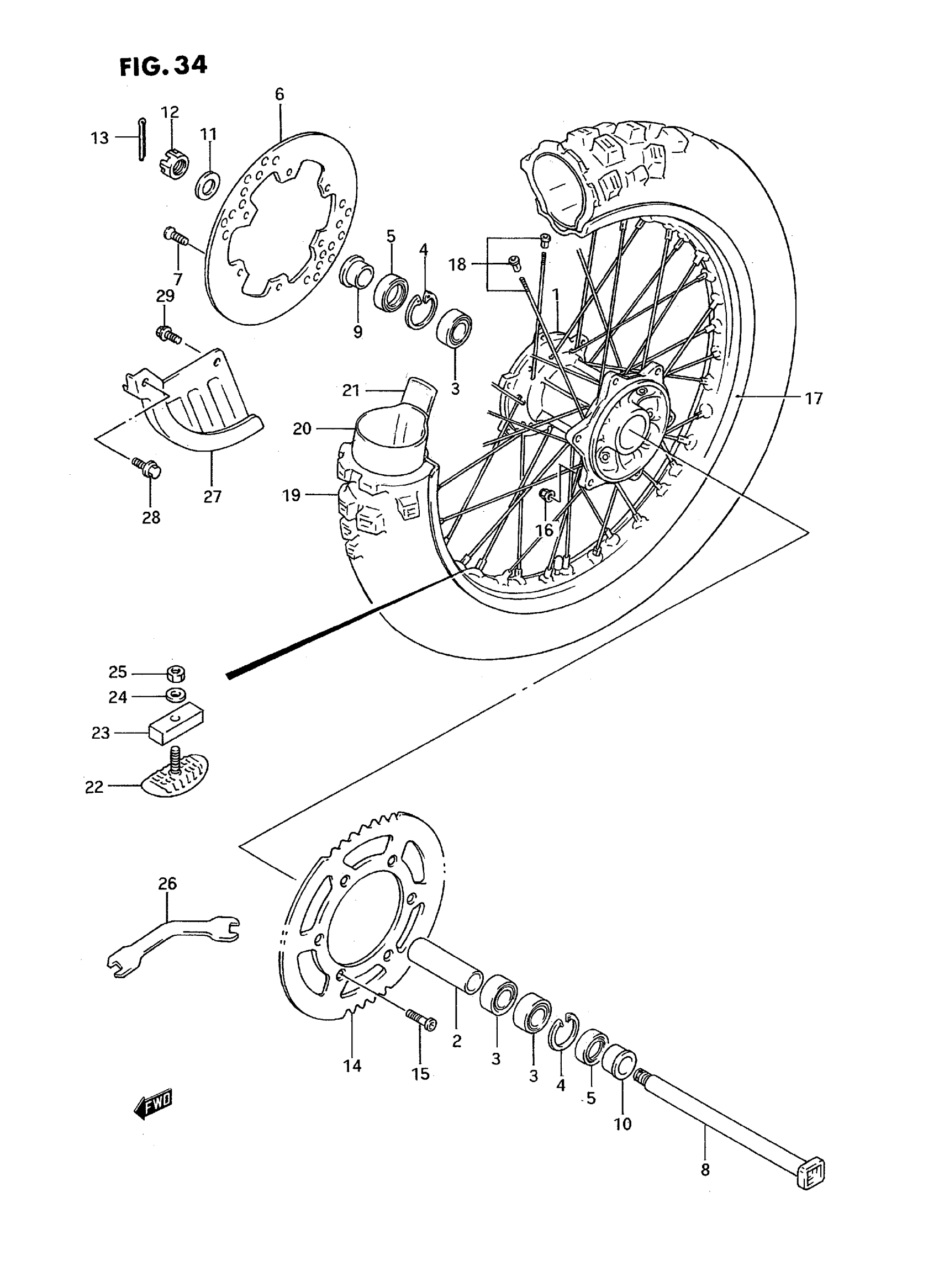

Suzuki RM125S (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

64111-43D00

Unavailable

2

SPACER, BEARING

64731-43D00

Unavailable

3

BEARING

08133-60047

$23.64

4

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.51

5

SEAL, DUST (26X42X8) | MODEL N/P/R

09282-26001

$16.75

5

SEAL (29X42X6) | MODEL S This part replaces 64841-28E00.

64841-28E01

$7.22

6

DISC, REAR BRAKE This part replaces 69211-43D10.

69211-43D00

$333.07

7

SCREW

59421-29E00

$5.43

8

AXLE, REAR | MODEL N->64711-27C30 This part replaces 64711-27C20.

64711-27C30

Unavailable

8

AXLE, REAR | MODEL N

64711-27C30

Unavailable

8

AXLE, REAR | MODEL P/R/S

64711-28E00

Unavailable

9

SPACER, RH | MODEL N/P/R

64741-43D00

Unavailable

9

SPACER, RH | MODEL S

64741-28E10

Unavailable

10

SPACER, LH | MODEL N

64751-43D01

Unavailable

10

SPACER, LH | MODEL P/R

64751-28E00

Unavailable

10

SPACER, LH | MODEL S

64751-28E20

$24.99

11

WASHER

09160-19022

$4.42

12

NUT | MODEL N/P This part replaces 08314-41188.

08314-40187

$5.09

12

NUT | MODEL R/S This part replaces 08314-40183.

08314-4018A

$4.19

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.37

14

SPROCKET,RR (NT:49) | MODEL N/P/R This part replaces 64511-40281.

64511-28E00

$134.48

14

SPROCKET,RR (NT:49) | MODEL S

64511-28E00

$134.48

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM->64511-14D60 This part replaces 64511-40285.

64511-14D60

Unavailable

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM

64511-14D60

Unavailable

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM->64511-15D20 This part replaces 64511-40271.

64511-36E00

$140.88

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-15D20.

64511-36E00

$140.88

14

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$172.72

14

SPROCKET, REAR (NT:49) | OPT STEEL->64511-15D00

64511-00B01

Unavailable

14

SPROCKET,RR (NT:49) | OPT ALUMINIUM This part replaces 64511-15D00.

64511-28E00

$134.48

14

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B11.

64511-00B12

$139.53

14

SPROCKET, REAR (NT:51) | OPT STEEL->64511-40261

64511-00B21

Unavailable

15

SCREW

09120-08010

$2.39

16

NUT

09159-08067

$5.03

17

RIM, REAR WHEEL (2.15X19) This part replaces 65311-27C10.

65311-36E00

Unavailable

18

SPOKE ASSY, WHEEL

65320-28C10

Unavailable

19

TIRE, REAR (100/90-19) (DUNLOP) | MODEL N/P/R->65110-43D10 This part replaces 65110-43D00.

65110-36F00

Unavailable

19

TIRE, REAR (100/90-19) (DUNLOP) | MODEL S->55200-44610 This part replaces 65110-43D40.

65110-36E10

Unavailable

20

TUBE This part replaces 65200-01B30.

55200-44611

$44.78

21

PROTECTOR

65261-01B30

$9.25

22

STOPPER, BEAD | MODEL N This part replaces 65270-46910.

65270-43D00

$66.32

22

STOPPER, BEAD | MODEL P/R/S

65270-43D00

$66.32

23

CUSHION, BEAD STOPPER

65271-27C00

$8.37

24

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$1.86

24

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$2.18

25

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$1.83

25

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.86

26

SPANNER, OPEN

09813-00039

Unavailable

27

COVER, REAR DISC This part replaces 69231-28C00.

69200-28C00

$26.04

28

BOLT (6X20) | MODEL N This part replaces 09103-06130.

09103-06286

$2.19

28

BOLT | MODEL P This part replaces 01517-06207.

01550-06207

$2.31

28

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

29

BOLT | MODEL N/P This part replaces 01517-06128.

01550-06127

$2.31

29

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97
