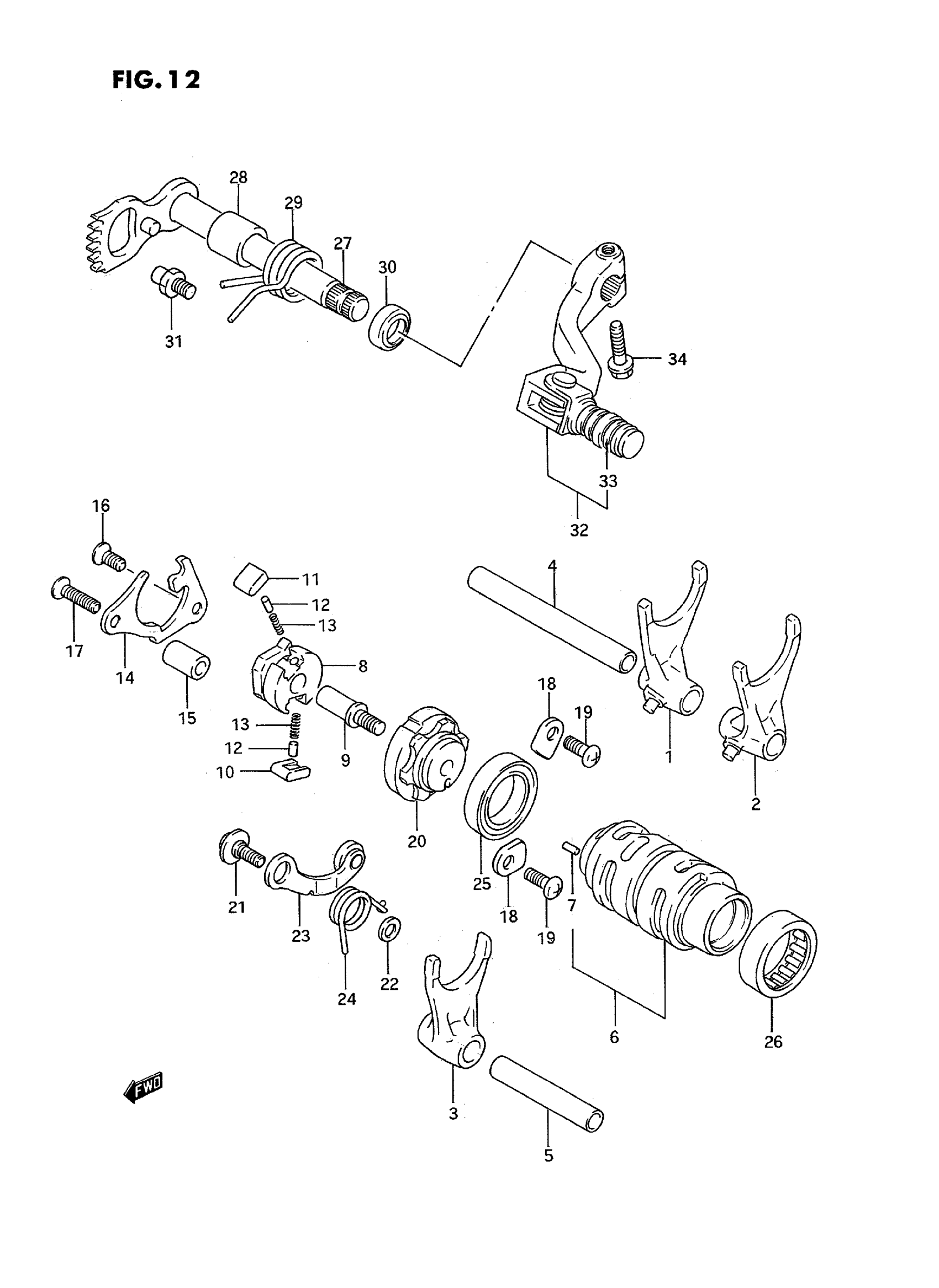

Suzuki RM125S (1995) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-43D00

Unavailable

2

FORK, NO.2

25221-43D00

Unavailable

3

FORK, NO.3

25231-43D00

Unavailable

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$25.08

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$20.82

6

CAM | Includes Item(s) 7

25310-43D00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.10

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL N This part replaces 25313-27C00.

25313-27C02

$14.73

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL P/R/S This part replaces 25313-27C01.

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-28C00

$27.32

15

SPACER (6.2X12X18)

09180-06204

Unavailable

16

SCREW This part replaces 02122-06128.

02122-06127

$1.83

17

SCREW This part replaces 02122-06308.

02122-0630B

$2.07

18

RETAINER | MODEL N/P This part replaces 24741-20A10.

24741-21A00

$2.80

18

RETAINER | MODEL R/S

24741-20A00

$2.80

19

SCREW This part replaces 02112-06108.

02112-06107

$1.45

20

PLATE, STOPPER

25381-28C20

Unavailable

21

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

22

WASHER

08211-06121

$1.56

23

STOPPER, CAM

25350-28C20

Unavailable

24

SPRING

09448-18031

Unavailable

25

BEARING, RH

08140-69050

$32.18

26

BEARING, LH

09263-30035

Unavailable

27

SHAFT, GEAR SHIFTING

25510-43D00

Unavailable

28

SPACER (14X20X17.5)

09180-14016

$3.57

29

SPRING

09444-26013

$2.84

30

OIL SEAL (14X22X6)

09283-14006

$6.04

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

32

LEVER ASSY,GEAR | Includes Item(s) 33 This part replaces 25600-27C05.

25600-27C06

Unavailable

33

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

34

BOLT

01547-06257

$2.01
