1991 Suzuki RM125M Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

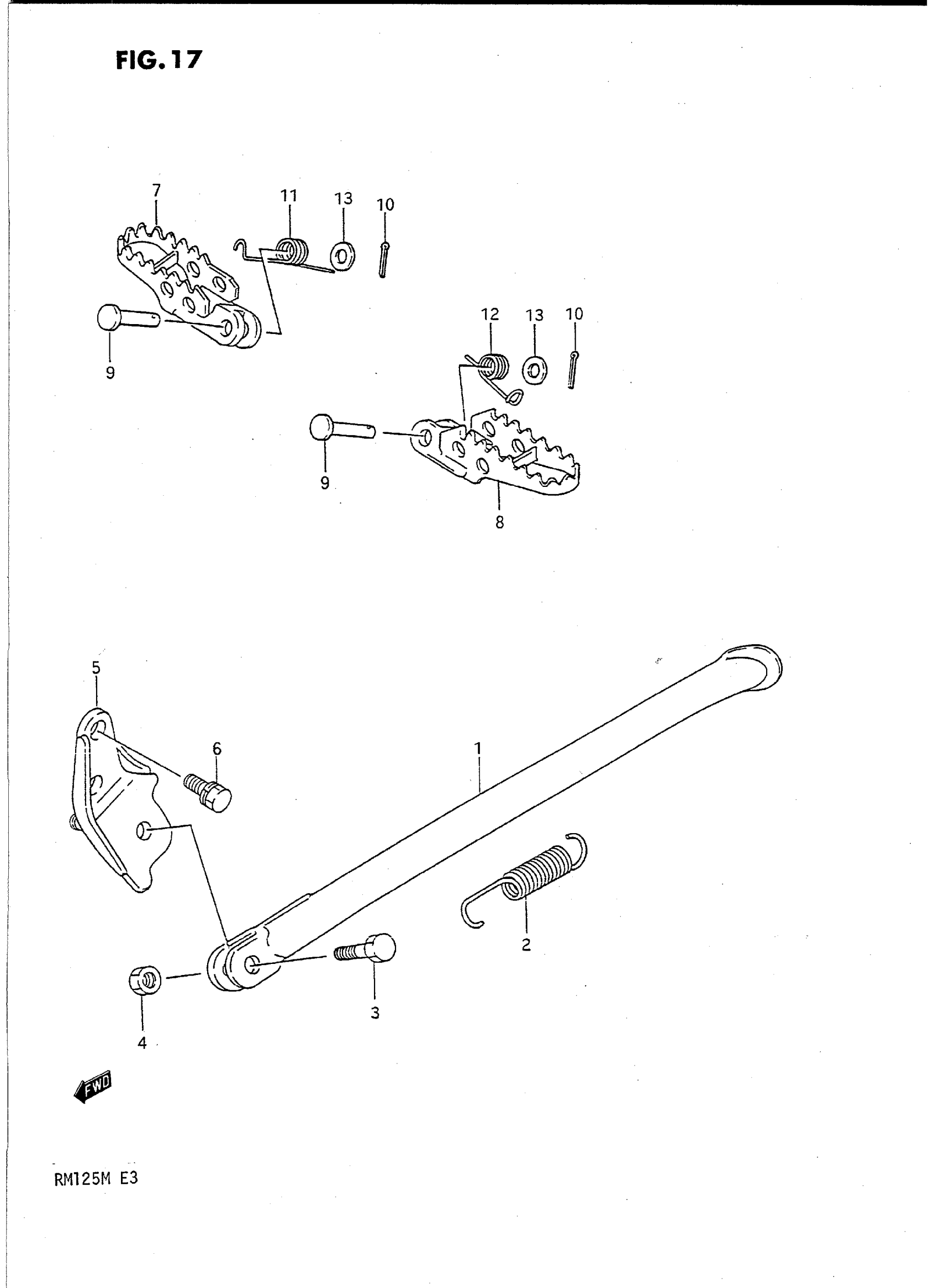

1991 Suzuki RM125M Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (BLACK) | MODEL K/L This part replaces 42310-26C00-19F.

42310-26C00-019

1
Out of stock

1

STAND, PROP (BLACK) | MODEL M

42310-26C00-019

1
Out of stock

2

SPRING

09443-17007

1
Out of stock

3

BOLT (10X30)

09100-10067

1
Out of stock

4

NUT This part replaces 08310-22107.

08310-00107

1
Out of stock

5

BRACKET (BLACK) | MODEL K/L This part replaces 42330-26C00-19F.

42330-26C00-019

1
Out of stock

5

BRACKET (BLACK) | MODEL M

42330-26C00-019

1
Out of stock

7

FOOTREST, RH (BLUE) | MODEL K This part replaces 43550-26C01-19F.

43550-26C02-19F

1
Out of stock

7

FOOTREST, RH (BLUE) | MODEL L

43550-26C02-19F

1
Out of stock

8

FOOTREST, LH (BLUE) | MODEL K This part replaces 43560-26C01-19F.

43560-26C02-19F

1
Out of stock

8

FOOTREST, LH (BLUE) | MODEL L

43560-26C02-19F

1
Out of stock

9

PIN | MODEL K/L

09200-08064

2
Out of stock

9

PIN | MODEL M

09200-10019

2

$6.61

In stock

10

2

$1.31

In stock

11

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 09448-14040.

09448-14040-XC0

1
Out of stock

11

SPRING, RH | MODEL L

09448-14043

1
Out of stock

11

SPRING, RH | MODEL M

09448-18027

1
Out of stock

12

SPRING, LH | MODEL K/L

09448-14038

1
Out of stock

12

SPRING | MODEL M This part replaces 09448-18026.

09448-18026-XC0

1
Out of stock

13

WASHER | MODEL K/L This part replaces 08322-21088.

08322-01087

2
Out of stock

13

WASHER | MODEL M This part replaces 08322-11107.

08322-01107

2
Out of stock
