1991 Suzuki RM125M Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

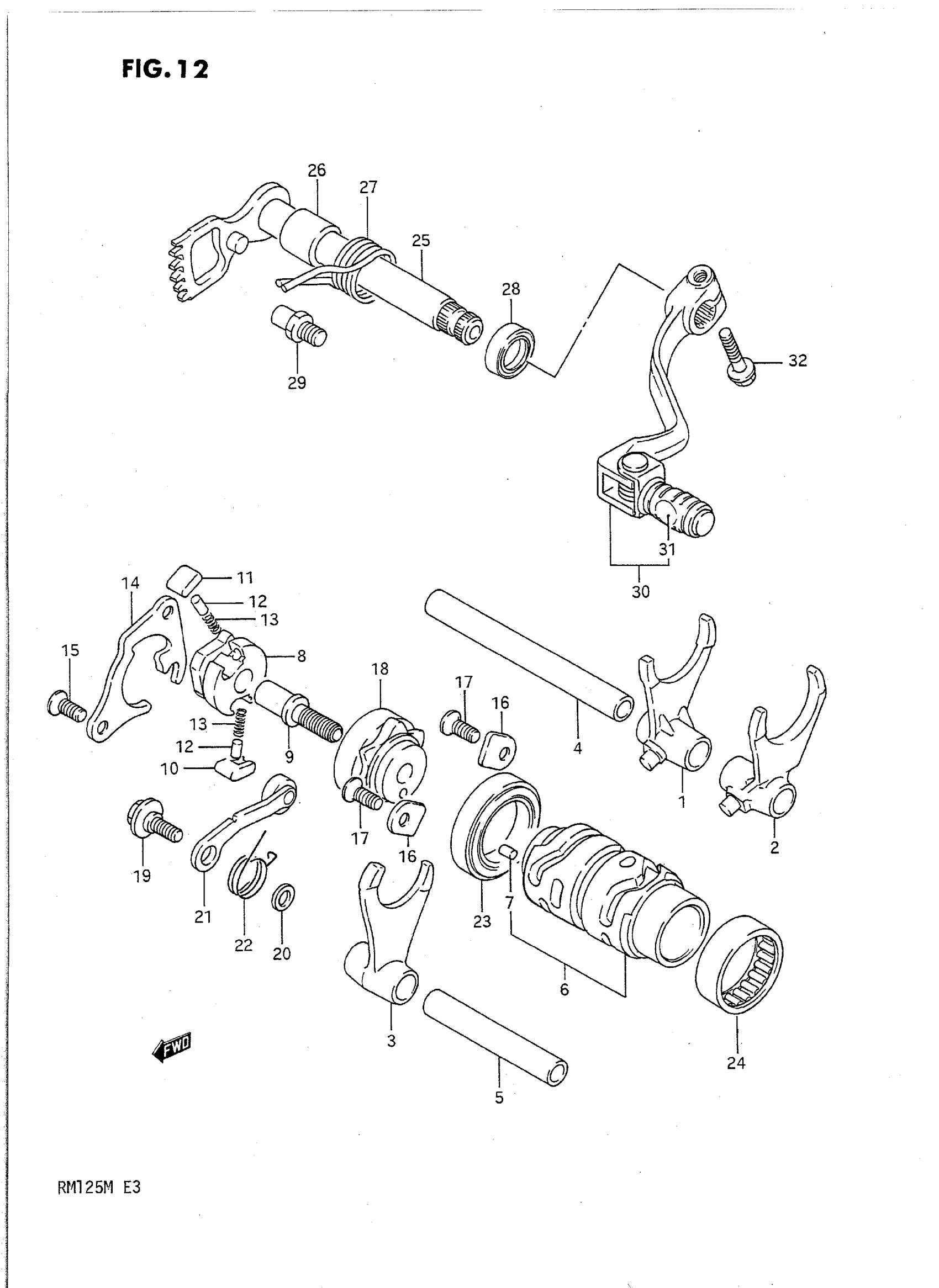

1991 Suzuki RM125M Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, NO.1

25211-27C01

1
Out of stock

2

FORK, NO.2

25221-27C01

1
Out of stock

3

FORK, NO.3

25231-27C01

1
Out of stock

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

1
Out of stock

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

1
Out of stock

6

CAM | MODEL K This part replaces 25310-27C03.

25310-27C30

1
Out of stock

6

CAM | MODEL L This part replaces 25310-27C10.

25310-27C30

1
Out of stock

6

CAM | MODEL M; Includes Item(s) 7

25310-27C30

1
Out of stock

7

PIN, SHIFT CAM STOPPER PLATE | L:11.8

09261-04011

1
Out of stock

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

9

PIN, SHIFT CAM DRIVEN GEAR This part replaces 25313-27C00.

25313-27C02

1
Out of stock

10

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

11

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

12

PIN

09261-05003

2
Out of stock

13

SPRING

09440-04003

2
Out of stock

14

LIFTER, PAWL

25331-27C00

1
Out of stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

RETAINER

24741-20A00

2
Out of stock

17

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

18

PLATE, SHIFT CAM STOPPER | MODEL K This part replaces 25381-27C02.

25381-28C20

1
Out of stock

18

PLATE, SHIFT CAM STOPPER | MODEL L This part replaces 25381-27C10.

25381-28C20

1
Out of stock

18

PLATE, STOPPER | MODEL M

25381-28C20

1
Out of stock

19

BOLT, SHIFT CAM STOPPER

09111-06041

1
Out of stock

20

WASHER

08211-06121

1
Out of stock

21

STOPPER, CAM | MODEL K/L This part replaces 25350-27C00.

25350-27C30

1
Out of stock

21

STOPPER, CAM | MODEL M

25350-27C30

1
Out of stock

22

SPRING

09448-18020

1
Out of stock

23

BEARING, RH

08140-69050

1
Out of stock

24

BEARING, LH

09263-30035

1
Out of stock

25

SHAFT, GEAR SHIFTING This part replaces 25510-27C03.

25510-43D00

1
Out of stock

26

SPACER (14X20X17.5)

09180-14016

1
Out of stock

27

SPRING | MODEL K/L

09444-26017

1
Out of stock

27

SPRING | MODEL M

09444-26013

1
Out of stock

28

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

30

LEVER ASSY,GEAR | MODEL K This part replaces 25600-27C01.

25600-27C06

1
Out of stock

30

LEVER ASSY,GEAR | MODEL L This part replaces 25600-27C03.

25600-27C06

1
Out of stock

30

LEVER ASSY,GEAR | MODEL M; Includes Item(s) 31 This part replaces 25600-27C30.

25600-27C06

1
Out of stock

31

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

1
Out of stock

32

BOLT

01547-06257

1
Out of stock
