1991 Suzuki RM125M AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

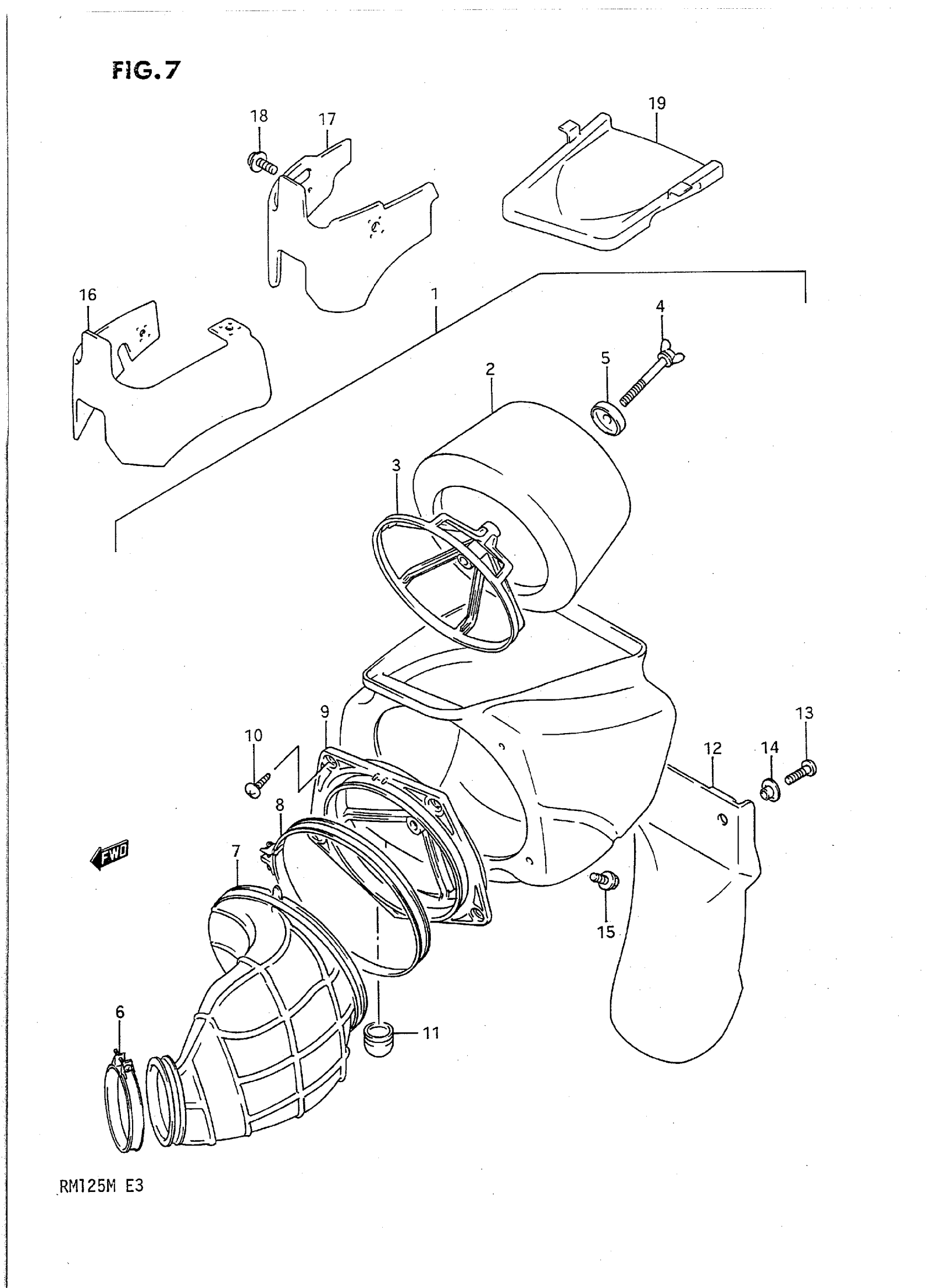

1991 Suzuki RM125M AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 13700-27C00.

13700-27C01

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL L/M; Includes Item(s) 2 - 14 This part replaces 13700-27C11.

13700-27C13

1
Out of stock

2

FILTER | MODEL K This part replaces 13780-00B20.

13780-28C10

1
Out of stock

2

FILTER | MODEL L/M

13780-28C10

1
Out of stock

3

HOLDER, FILTER

13791-00B20

1
Out of stock

4

BOLT, WING

13831-02B00

1
Out of stock

5

WASHER

13792-13A01

1
Out of stock

6

CLAMP

09402-68208

1
Out of stock

7

TUBE, OUTLET | MODEL K

13881-27C00

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 13881-27C10.

13881-27C12

1
Out of stock

8

CLAMP This part replaces 13826-01B20.

13826-43D00

1
Out of stock

9

BASE, FILTER This part replaces 13790-01B21.

13790-05D00

1
Out of stock

10

SCREW This part replaces 03241-05125.

03241-0512A

5
Out of stock

11

TUBE, DRAIN

13878-00B20

1
Out of stock

12

GUARD, MUD

13738-01B00

1
Out of stock

13

SCREW

02142-06167

2
Out of stock

14

SPACER

13838-02B00

2
Out of stock

15

BOLT This part replaces 01517-06205.

01550-0620A

2
Out of stock

16

GUARD, MUD | MODEL K

13739-27C00

1
Out of stock

17

GUARD, MUD | MODEL L/M This part replaces 13739-05D00.

13739-43D00

1
Out of stock

18

SCREW | MODEL L/M

09136-06004

1
Out of stock

19

CAP, AIR CLEANER | MODEL L/M

13741-27C10

1
Out of stock
