Description

Price

1

CYLINDER SET, REAR MASTER | Includes Item(s) 2 - 9

69604-37F30

$331.52

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-37F20

$24.10

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CAP

69669-37F20

$44.55

8

SCREW

69689-37F30

$4.83

9

DIAPHRAGM

69667-37F20

$18.25

10

HOSE,RR BRAKE This part replaces 69480-36F30.

69480-36F33

$71.70

11

UNION (10X1.25X22)

09360-10053

$9.70

12

WASHER (10X15X1.5)

09161-10009

$1.89

13

BOLT

09139-06139

$3.01

14

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.91

15

SCREW This part replaces 02142-0510A.

02142-0510B

$1.82

16

PIN

09200-08048

$2.80

17

WASHER This part replaces 09160-08119.

09160-08090

$2.46

18

PIN, COTTER

04111-2015A

$1.25

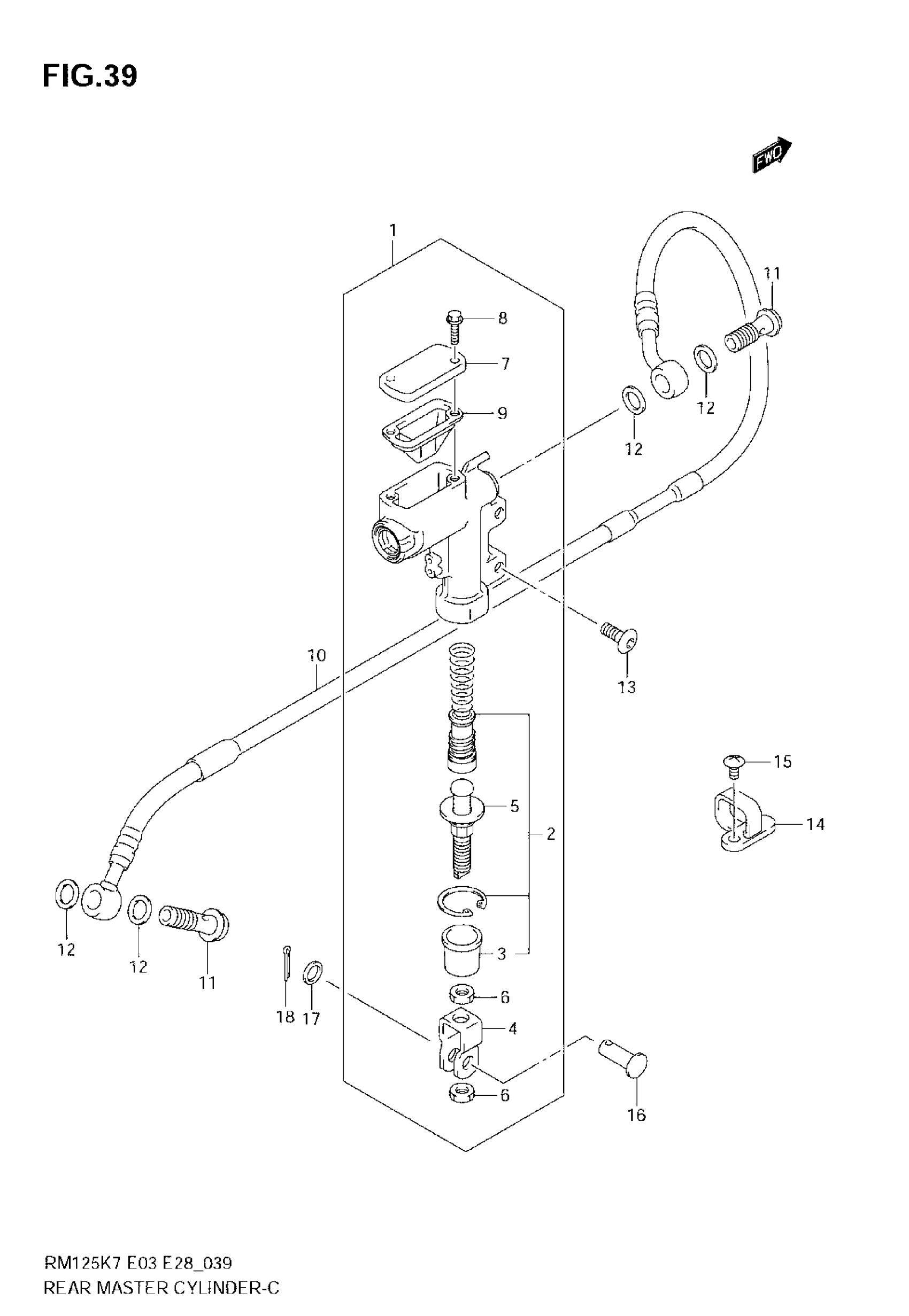

Suzuki RM125 (2008) REAR MASTER CYLINDER Diagram
