Description

Price

1

HEAD, CYLINDER

11111-36F30

$254.50

2

O RING, CYLINDER HEAD NO.1

11147-27C11

$13.15

3

O RING, CYLINDER HEAD NO.2

11148-27C11

$5.12

4

NUT

09159-08049

$4.37

5

WASHER

09168-08021

$2.66

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.18

7

PIN (4X13.8)

04221-04089

$1.15

8

SPARK PLUG (NGK,R6918B-8)

09482-00509

$30.67

9

CYLINDER SET | Includes Item(s) 10

11200-36870

$1,177.47

10

UNION, CYLINDER

16910-09401

$17.41

11

GASKET, CYLINDER

11241-36F00

$17.67

12

STUD BOLT (8X33)

09108-08220

$2.97

13

STUD BOLT (8X30)

09108-08142

$2.95

14

STUD BOLT (8X35)

01421-0835A

$2.39

15

STUD BOLT (8X40)

01421-0840A

$3.38

16

PIN

09206-11004

$4.99

17

NUT

09159-08124

$2.78

18

COVER, CYLINDER NO.1

11231-27C30

$40.95

19

GASKET, CYLINDER COVER NO.1

11233-27C34

$10.10

20

BOLT

09103-06234

$2.17

21

COVER, CYLINDER NO.2

11248-36E00

$41.17

22

GASKET, CYLINDER COVER NO.2

11238-36E01

$7.37

23

BOLT (5X16) This part replaces 09103-05023.

09103-05016

$1.98

24

HOSE(5X8.2X600) | L:600!270 This part replaces 09359-50823-600.

09359-50824-600

$7.46

25

HOSE,5X10X600 | L:600!390 This part replaces 09352-50823-600.

44421-13ER0

$9.48

26

BOLT, ENG MTG

09103-10149

$3.44

27

NUT

09159-10078

$2.81

28

CLAMP

09407-18402

$2.29

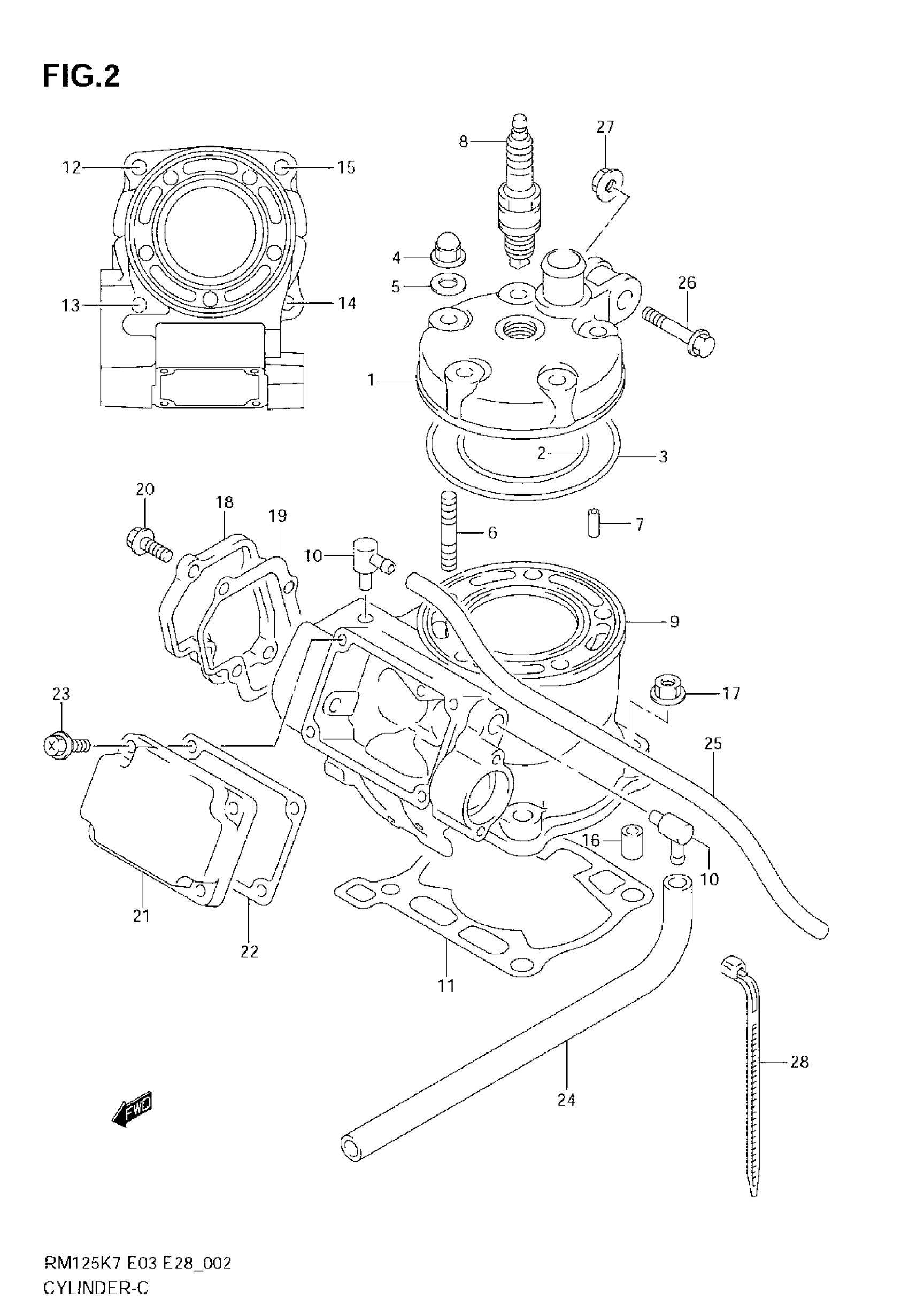

Suzuki RM125 (2008) CYLINDER Diagram
