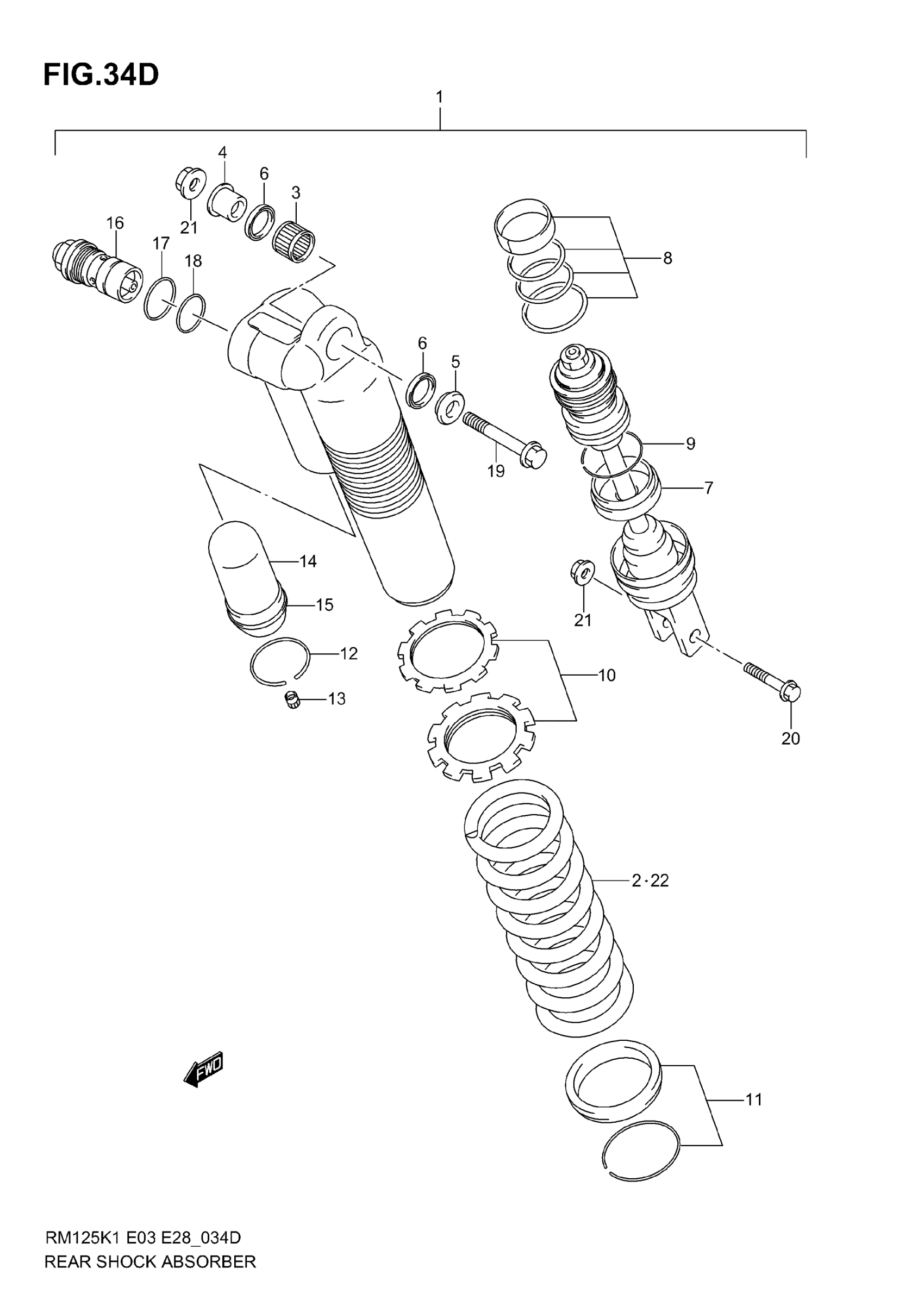

Suzuki RM125 (2006) REAR SHOCK ABSORBER (MODEL K6) Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED) | E3

62100-36FL0-YKS

Unavailable

1

ABSORBER ASSY, RR SHOCK (RED) | E28; Includes Item(s) 2 - 7

62100-36FK0-YKS

Unavailable

2

SPRING (K=5.1)

62211-37FJ0

Unavailable

3

BEARING (16X22X12)

09263-16033

$18.28

4

.SPACER,UPPER BRG,R

62684-36F00

$26.03

5

.SPACER,UPPER BRG,L

62685-36F00

$17.25

6

OIL SEAL (16X22X2.5)

09284-16005

$6.27

7

ROD, PISTON

62120-36FL0

Unavailable

8

O RING SET | Includes Item(s) 9 - 18

62150-36EB0

$80.57

9

RING, STOPPER

62279-36E80

$5.00

10

ADJUSTER SET

62190-36F00

$131.02

11

SPRING SEAT SET

62220-36F00

$97.10

12

RING, STOPPER

62278-36E00

$9.70

13

CAP

51294-20400

$8.32

14

BLADDER

62273-36F00

$72.20

15

CAP, CHAMBER

62275-36E00

$72.57

16

BOLT, PLUG

62130-37FH0

Unavailable

17

O RING

62131-28E00

$5.63

18

O RING

51174-43D00

$5.43

19

BOLT

09103-10360

$5.98

20

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$8.45

21

NUT

09159-10067

$5.60

22

SPRING (SOFT,K=4.6) | OPT

62211-36F60

Unavailable

22

SPRING (SOFT,K=4.8) | OPT

62211-37FH0

Unavailable

22

SPRING (HARD,K=5.3) | OPT

62211-37FK0

Unavailable

22

SPRING (HARD,K=5.5) | OPT

62211-37FL0

Unavailable
