2000 Suzuki RM125 Magneto Diagram

← All diagrams

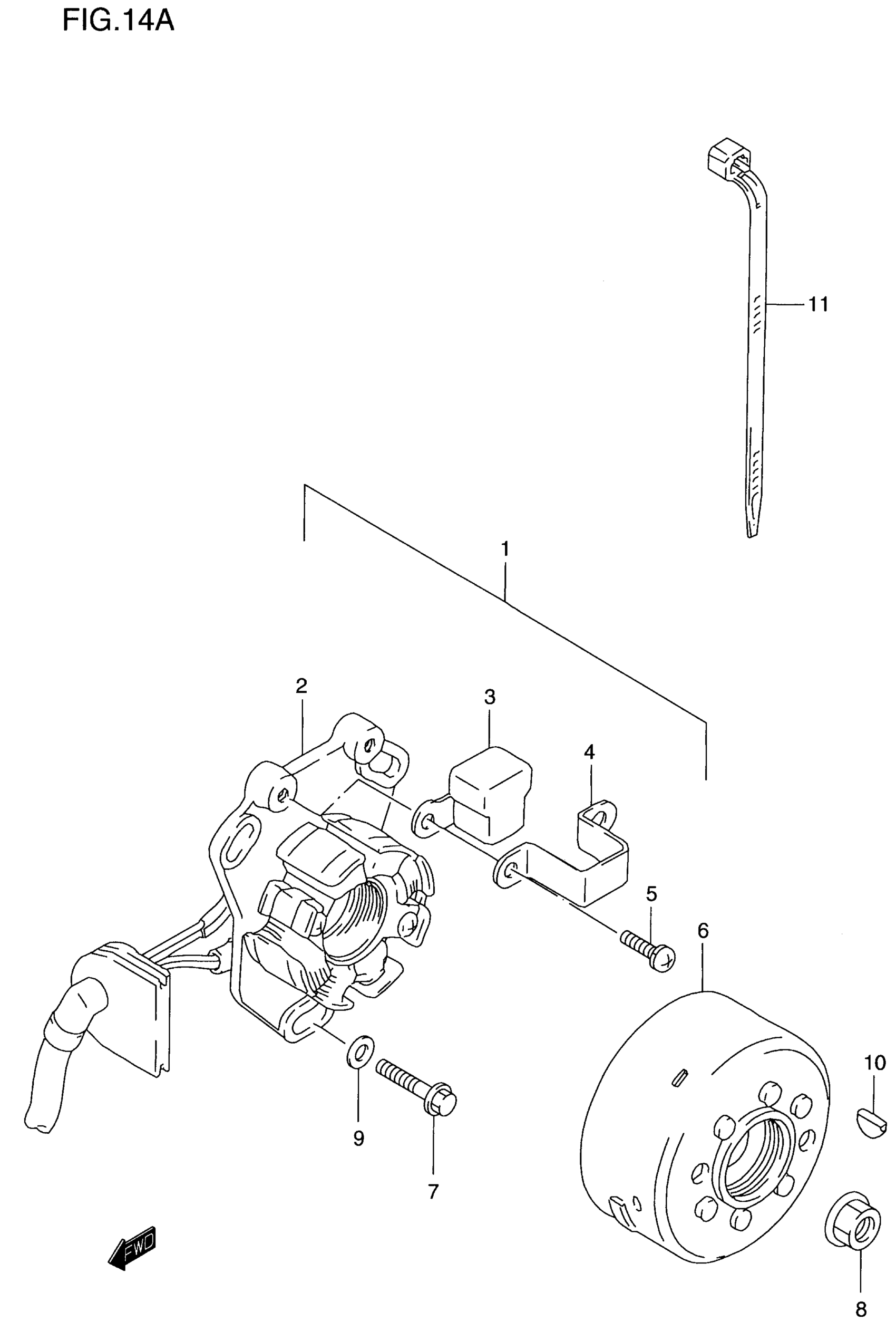

Find the part on the Magneto diagram for your 2000 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM125 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY | MODEL W

32100-36E10

1
Out of stock

1

MANGETO ASSY | MODEL X

32100-36E20

1
Out of stock

1

MANGETO ASSY | MODEL Y; Includes Item(s) 2 - 6

32100-36E30

1
Out of stock

2

STATOR ASSY | MODEL W

32101-36E10

1
Out of stock

2

STATOR ASSY | MODEL X

32101-36E20

1
Out of stock

2

STATOR ASSY | MODEL Y

32101-36E30

1
Out of stock

3

COIL, PICK UP

32150-05D00

1
Out of stock

4

HOLDER, PICK UP COIL

32157-27C01

1
Out of stock

5

2

$2.60

In stock

6

ROTOR

32102-36E10

1
Out of stock

7

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

8

NUT This part replaces 08316-10103.

08316-1010B

1
Out of stock

9

.WASHER This part replaces 08322-01063.

08322-0106B

3
Out of stock

10

KEY

09420-04008

1
Out of stock

11

CLAMP (L:235)

09407-25401

2
Out of stock

11

CLAMP (L:165)

09407-18402

1
Out of stock
