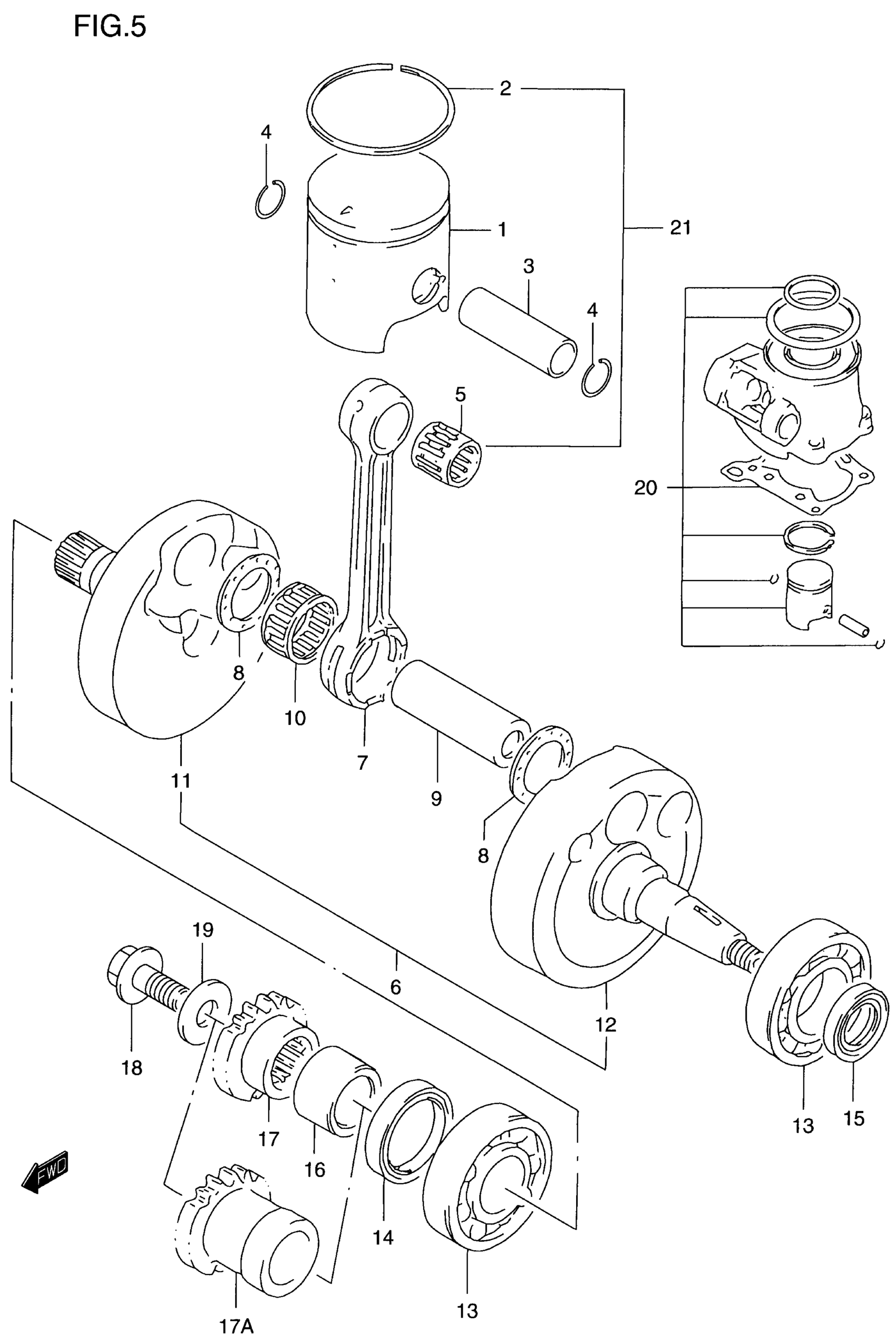

Suzuki RM125 (2000) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | MODEL T/V/W This part replaces 12110-36E01-0F0.

12110-36E20-0F0

Unavailable

1

PISTON | MODEL X

12110-36E20-0F0

Unavailable

1

PISTON | MODEL Y This part replaces 12110-36E30-0F0.

12110-36E31-0F0

Unavailable

2

RING, PISTON

12141-36E01

Unavailable

3

PIN, PISTON

12151-01B41

$20.00

4

CIRCLIP

09381-15001

$1.46

5

BEARING, PISTON PIN

09263-15040

$21.42

6

CRANKSHAFT ASSY | MODEL T

12200-43D10

Unavailable

6

CRANKSHAFT ASSY | MODEL V

12200-36E00

Unavailable

6

CRANKSHAFT ASSY | MODEL W

12200-36E10

Unavailable

6

CRANKSHAFT ASSY | MODEL X

12200-36E20

Unavailable

6

CRANKSHAFT ASSY | MODEL Y; Includes Item(s) 7 - 12

12200-36E30

Unavailable

7

ROD, CONNECTING | MODEL T

12161-43D00

Unavailable

7

ROD, CONNECTING | MODEL V/W

12161-36E00

Unavailable

7

ROD, CONNECTING | MODEL X/Y This part replaces 12161-36E10.

12161-36E12

Unavailable

8

WASHER

09160-22077

$22.57

9

PIN, CRANK

12211-27C00

$45.25

10

BEARING (22X28X16)

09263-22060

$82.80

11

CRANKSHAFT, RH | MODEL T/V

12220-43D10

Unavailable

11

CRANKSHAFT, RH | MDOEL W This part replaces 12220-36E10.

12220-36E20

Unavailable

11

CRANKSHAFT, RH | MODEL X

12220-36E20

Unavailable

11

CRANKSHAFT, RH | MODEL Y

12220-36E30

Unavailable

12

CRANKSHAFT, LH | MODEL T/V

12260-43D10

Unavailable

12

CRANKSHAFT, LH | MODEL W This part replaces 12260-36E10.

12260-36E20

Unavailable

12

CRANKSHAFT, LH | MODEL X

12260-36E20

Unavailable

12

CRANKSHAFT, LH | MODEL Y

12260-36E30

Unavailable

13

BEARING (22X56X16)

09262-22025

$53.87

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$14.23

15

OIL SEAL, LH (18X30X6) | MODEL T/V/W

09283-18006

$13.20

15

SEAL,OIL | MODEL X/Y This part replaces 09283-18007.

09283-18010

$5.52

16

SPACER | MODEL T/V

12359-27C30

$22.25

17

GEAR, PRIMARY DRIVE (NT:19) | MODEL T/V

21111-43D00

Unavailable

17A

GEAR, PRIMARY DRIVE (NT:19) | MODEL W/X/Y This part replaces 21111-36E10.

21111-36E11

$88.52

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$8.80

19

WASHER

09164-11004

$5.95

20

TOP END KIT, ENGINE | MODEL T/V/W OPT,E3 This part replaces 12100-43842.

12100-43861

Unavailable

20

TOP END KIT, ENGINE | MODEL X OPT,E3

12100-43861

Unavailable

20

TOP END KIT, ENGINE | MODEL Y OPT,E3

12100-36840

Unavailable

21

PISTON KIT | MODEL T/V/W OPT,E28 This part replaces 12100-43852.

12100-43871

Unavailable

21

PISTON KIT | MODEL X OPT,E28

12100-43871

Unavailable

21

TOP END KIT, ENGINE | MODEL Y OPT,E28 This part replaces 12100-36830.

12100-36840

Unavailable
