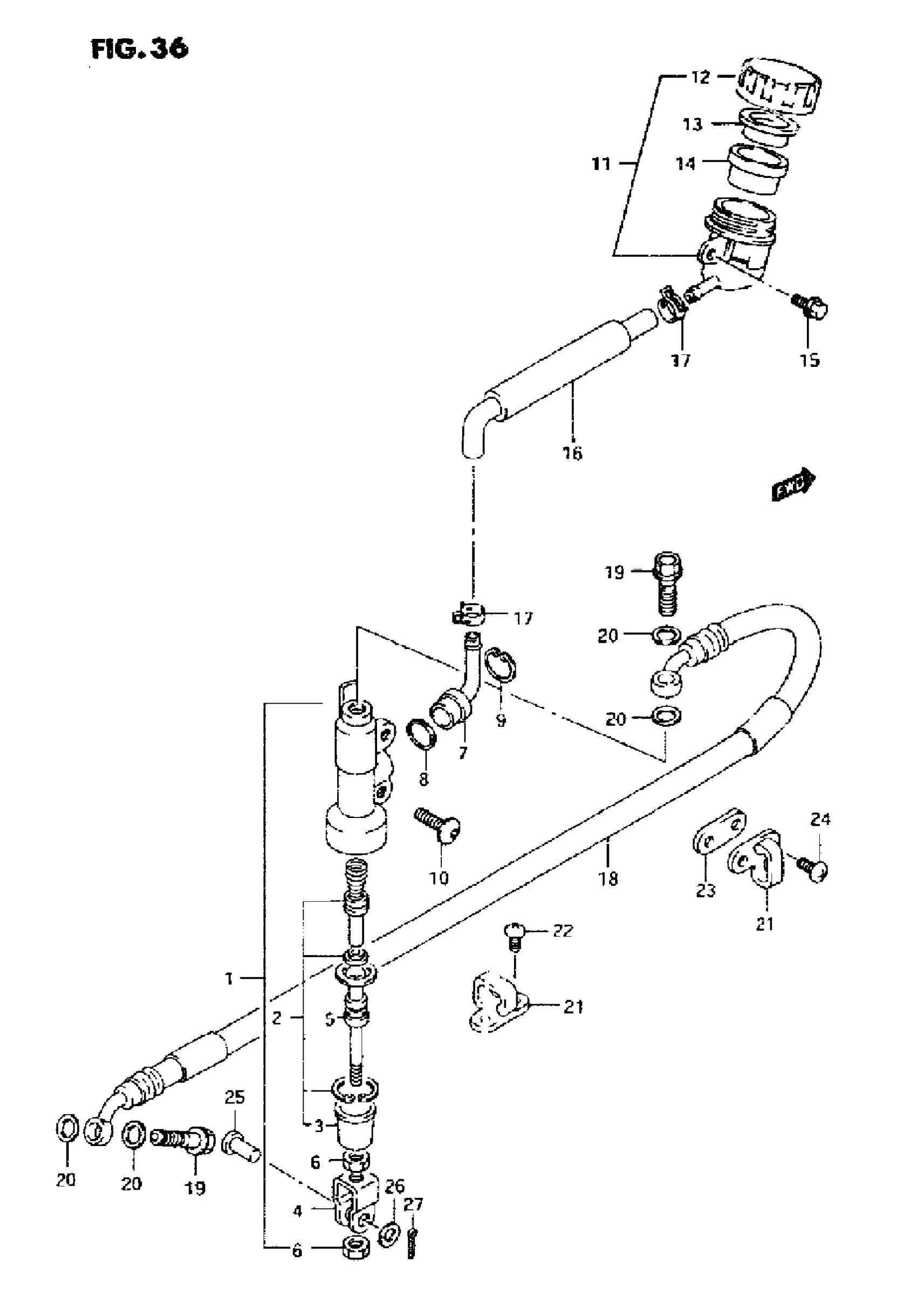

Suzuki RM125 (1995) REAR MASTER CYLINDER (MODEL N) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-43D00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-00B21

$19.22

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

11

TANK ASSY, RESERVOIR

69740-03D10

$85.27

12

CAP

69669-03D10

$25.55

13

PLATE

69668-00B20

$8.65

14

DIAPHRAGM

69667-00B20

$20.82

15

BOLT

01547-06127

$1.67

16

HOSE, RESERVOIR TANK

69731-27C00

Unavailable

17

CLAMP

69735-00B20

$5.43

18

HOSE, REAR BRAKE This part replaces 69480-27C10.

69480-28E00

Unavailable

19

UNION This part replaces 09360-10034.

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

GUIDE, HOSE

61196-27C20

$8.83

22

SCREW, REAR

09125-05042

$1.98

23

SEAT, HOSE GUIDE

61197-27C00

Unavailable

24

SCREW, FRONT

02142-05167

$1.38

25

PIN

09200-08048

$2.80

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
