1995 Suzuki RM125 Crankcase Cover - Water Pump Diagram

← All diagrams

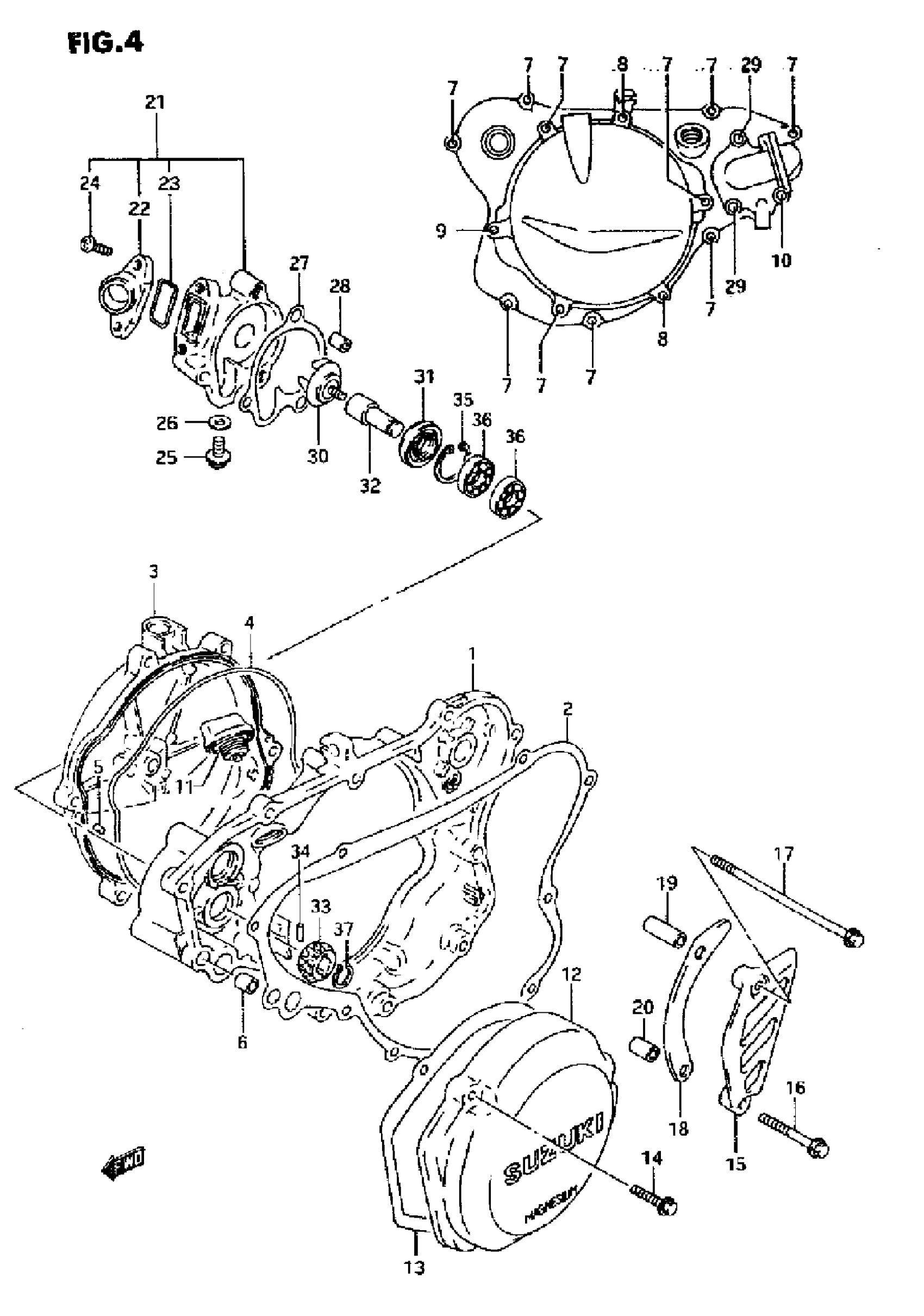

Find the part on the Crankcase Cover - Water Pump diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RM125 Crankcase Cover - Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | MODEL N This part replaces 11341-43D00.

11340-43811

1
Out of stock

1

COVER, CLUTCH | MODEL P/R This part replaces 11340-43810.

11340-43811

1
Out of stock

1

COVER, CLUTCH | MODEL S

11340-43811

1
Out of stock

2

GASKET, CLUTCH COVER | MODEL N/P/R This part replaces 11482-43D00.

11482-43D01

1
Out of stock

2

GASKET, CLUTCH COVER | MODEL S

11482-43D01

1
Out of stock

3

COVER, CLUTCH OUTER | MODEL N This part replaces 11371-43D00.

11371-43D10

1
Out of stock

3

COVER, CLUTCH OUTER | MODEL P/R/S

11371-43D10

1
Out of stock

4

O RING, CLUTCH OUTER COVER

11484-43D00

1
Out of stock

5

PIN (4X13.8)

04221-04089

2
Out of stock

6

PIN

04211-09129

2
Out of stock

7

BOLT | MODEL N/P

01547-06257

10
Out of stock

7

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

10
Out of stock

8

BOLT | MODEL N/P

01547-06657

2
Out of stock

8

BOLT | MODEL R/S This part replaces 01547-06653.

01547-0665B

2
Out of stock

9

BOLT | MODEL N/P

01547-06707

1
Out of stock

9

BOLT | MODEL R/S This part replaces 01547-06703.

01547-0670B

1
Out of stock

10

BOLT (6X100) | MODEL N/P This part replaces 09103-06147.

09103-06501

1
Out of stock

10

BOLT (6X100) | MODEL R/S

09103-06501

1
Out of stock

11

PLUG SET This part replaces 09200-20810.

09200-20811

1
Out of stock

12

COVER, MAGNETO | MODEL N This part replaces 11351-43D00.

11351-43D10

1
Out of stock

12

COVER, MAGNETO | MODEL P/R/S

11351-43D10

1
Out of stock

13

GASKET, MAGNETO COVER

11483-43D00

1
Out of stock

14

BOLT | MODEL N/P

01547-06257

3
Out of stock

14

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

3
Out of stock

15

COVER, ENGINE SPROCKET | MODEL N This part replaces 11360-27C00.

11360-28E00

1
Out of stock

15

COVER, SPROCKET | MODEL P/R/S

11360-28E00

1
Out of stock

16

BOLT | MODEL N/P

01547-06407

1
Out of stock

16

BOLT | MODEL R/S This part replaces 01547-06403.

01547-0640B

1
Out of stock

17

BOLT (6X100) | MODEL N/P This part replaces 09103-06147.

09103-06501

1
Out of stock

17

BOLT (6X100) | MODEL R/S

09103-06501

1
Out of stock

18

PLATE, CHAIN GUIDE

27641-27C10

1
Out of stock

18

PLATE, CHAIN GUIDE | OPT FOR 13T

27641-27C00

1
Out of stock

19

SPACER (6.5X10.5X25)

09180-06203

1
Out of stock

20

SPACER (6.5X10.5X12)

09180-06221

1
Out of stock

21

CASE, WATER PUMP | MODEL N This part replaces 17410-43D01.

17410-43D11

1
Out of stock

21

CASE, WATER PUMP | MODEL P/R This part replaces 17410-43D10.

17410-43D11

1
Out of stock

21

CASE, WATER PUMP | MODEL S

17410-43D11

1
Out of stock

22

CONNECTOR | MODEL N This part replaces 17412-28C10.

17412-28E00

1
Out of stock

22

CONNECTOR | MODEL P/R/S

17412-28E00

1
Out of stock

23

O RING

17414-14300

1
Out of stock

24

SCREW | MODEL N/P/R This part replaces 02112-06164.

02112-0616A

2
Out of stock

24

SCREW | MODEL S This part replaces 02112-06163.

02112-0616A

2
Out of stock

25

BOLT, DRAIN | MODEL N This part replaces 17415-00B00.

17415-43D00

1
Out of stock

25

BOLT, DRAIN | MODEL P/R/S

17415-43D00

1
Out of stock

26

GASKET

17413-28C10

1
Out of stock

27

GASKET, WATER PUMP CASE

17431-43D00

1
Out of stock

28

PIN

04211-09129

2
Out of stock

29

BOLT | MODEL N/P

01547-06357

2
Out of stock

29

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

2
Out of stock

30

IMPELLER, WATER PUMP | MODEL N/P This part replaces 17491-01B03.

17491-43D01

1
Out of stock

30

IMPELLER, WATER PUMP | MODEL R/S This part replaces 17491-43D00.

17491-43D01

1
Out of stock

31

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

1
Out of stock

32

SHAFT, WATER PUMP This part replaces 17511-27C10.

17511-27C11

1
Out of stock

33

GEAR, WATER PUMP DRIVEN | MODEL N/P/R This part replaces 17441-27C10.

17441-43D20

1
Out of stock

33

GEAR, WATER PUMP DRIVEN | MODEL S

17441-43D20

1
Out of stock

34

PIN

09261-03010

1
Out of stock

35

CIRCLIP This part replaces 08331-41246.

08331-41249

1
Out of stock

36

BEARING

08113-69000

2
Out of stock

37

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock
