1995 Suzuki RM125 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

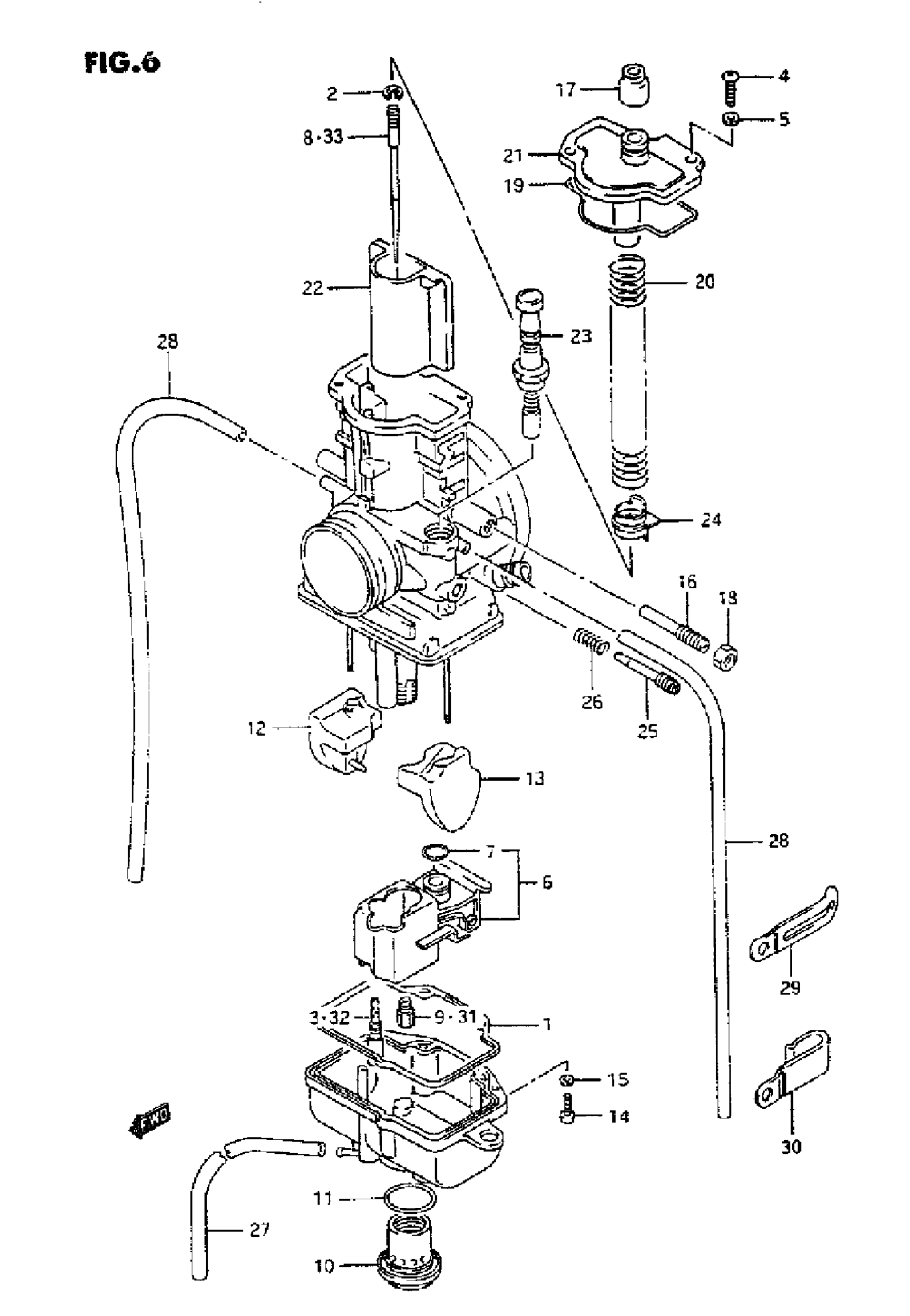

1995 Suzuki RM125 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | MODEL N

13200-43D10

1
Out of stock

1

CARBURETOR ASSY | MODEL P

13200-43D20

1
Out of stock

1

O RING, FLOAT CHAMBER

13696-26C00

1
Out of stock

2

E RING

13394-31210

1
Out of stock

3

JET, PILOT (50) | MODEL N

09492-50018

1
Out of stock

3

JET, PILOT (55) | MODEL P

09492-55013

1
Out of stock

4

2

$1.33

In stock

5

LOCK WASHER This part replaces 08321-21046.

08321-0104A

2
Out of stock

6

VALVE ASSY, NEEDLE

13370-27C00

1
Out of stock

7

1

$5.97

In stock

8

NEEDLE, JET (6BEJ6-66-3) | MODEL N

13383-43D00

1
Out of stock

8

NEEDLE, JET (6AEJ02-63-3) | MODEL P

13383-27C30

1
Out of stock

9

JET, MAIN (320) | MODEL N

09491-64002

1
Out of stock

9

JET, MAIN (360) | MODEL P

09491-72011

1
Out of stock

10

CAP, DRAIN

13247-27C00

1
Out of stock

11

O RING

13389-27C00

1
Out of stock

12

FLOAT, RH

13252-01B20

1
Out of stock

13

FLOAT, LH

13252-01B21

1
Out of stock

14

SCREW This part replaces 02112-03086.

02112-0308A

1
Out of stock

15

LOCK WASHER This part replaces 08321-21036.

08321-2103B

1
Out of stock

16

ADJUSTER

13279-26C00

1
Out of stock

17

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

18

NUT

13607-47070

1
Out of stock

19

O RING, TOP CAP

13251-26C00

1
Out of stock

20

SPRING, THROTTLE VALVE

13573-26C00

1
Out of stock

21

CAP, TOP

13261-01B30

1
Out of stock

22

VALVE, THROTTLE (CA:4.0)

13551-27C00

1
Out of stock

23

PLUNGER

13411-26C00

1
Out of stock

24

RING

13424-26C00

1
Out of stock

25

SCREW, PILOT (I 1/2)

13267-09400

1
Out of stock

26

SPRING

13268-35010

1
Out of stock

27

HOSE | L:600->320 This part replaces 09351-30503-600.

09351-30001-600

1
Out of stock

28

HOSE, AIR VENT (3.5X6.5X600) | L:600->400

09351-35653-600

2
Out of stock

29

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

30

CLAMP This part replaces 09403-06307.

09403-06329

1
Out of stock

31

JET, MAIN (290) | OPT, MODEL N

09491-58002

1
Out of stock

31

JET, MAIN (300) | OPT, MODEL N

09491-60007

1
Out of stock

31

JET, MAIN (310) | OPT, MODEL N

09491-62005

1
Out of stock

31

JET, MAIN (330) | OPT, MODEL N

09491-66002

1
Out of stock

31

JET, MAIN (340) | OPT, MODEL N

09491-68002

1
Out of stock

31

JET, MAIN (350) | OPT, MODEL N

09491-70011

1
Out of stock

31

JET, MAIN (360) | OPT, MODEL N

09491-72011

1
Out of stock

31

JET, MAIN (370) | OPT, MODEL N

09491-74003

1
Out of stock

31

JET, MAIN (380) | OPT, MODEL N

09491-76003

1
Out of stock

31

JET, MAIN (320) | OPT, MODEL P

09491-64002

1
Out of stock

31

JET, MAIN (330) | OPT, MODEL P

09491-66002

1
Out of stock

31

JET, MAIN (390) | OPT, MODEL P

09491-78005

1
Out of stock

31

JET, MAIN (400) | OPT, MODEL P

09491-80010

1
Out of stock

31

JET, MAIN (410) | OPT, MODEL P

09491-88001

1
Out of stock

32

JET, PILOT (45) | OPT, MODEL N

09492-45026

1
Out of stock

32

JET, PILOT (50) | OPT, MODEL P

09492-50018

1
Out of stock

32

JET, PILOT (55) | OPT, MODEL N/P

09492-55013

1
Out of stock

32

JET, PILOT (60) | OPT, MODEL N/P

09492-60013

1
Out of stock

32

JET, PILOT (65) | OPT, MODEL N/P

09492-65007

1
Out of stock

32

JET, PILOT (70) | OPT, MODEL P

09492-70008

1
Out of stock

33

NEEDLE, JET (6BEJ6-65) | OPT, MODEL N

13383-43D10

1
Out of stock

33

NEEDLE, JET (6BEJ6-67) | OPT, MODEL N

13383-43D20

1
Out of stock

33

NEEDLE, JET (6AEJ02-64) | OPT, MODEL P

13383-27C10

1
Out of stock

33

NEEDLE, JET (6AEJ02-63) | OPT, MODEL P

13383-27C30

1
Out of stock

33

NEEDLE, JET (6AEJ02-62) | OPT, MODEL P

13383-27C40

1
Out of stock
