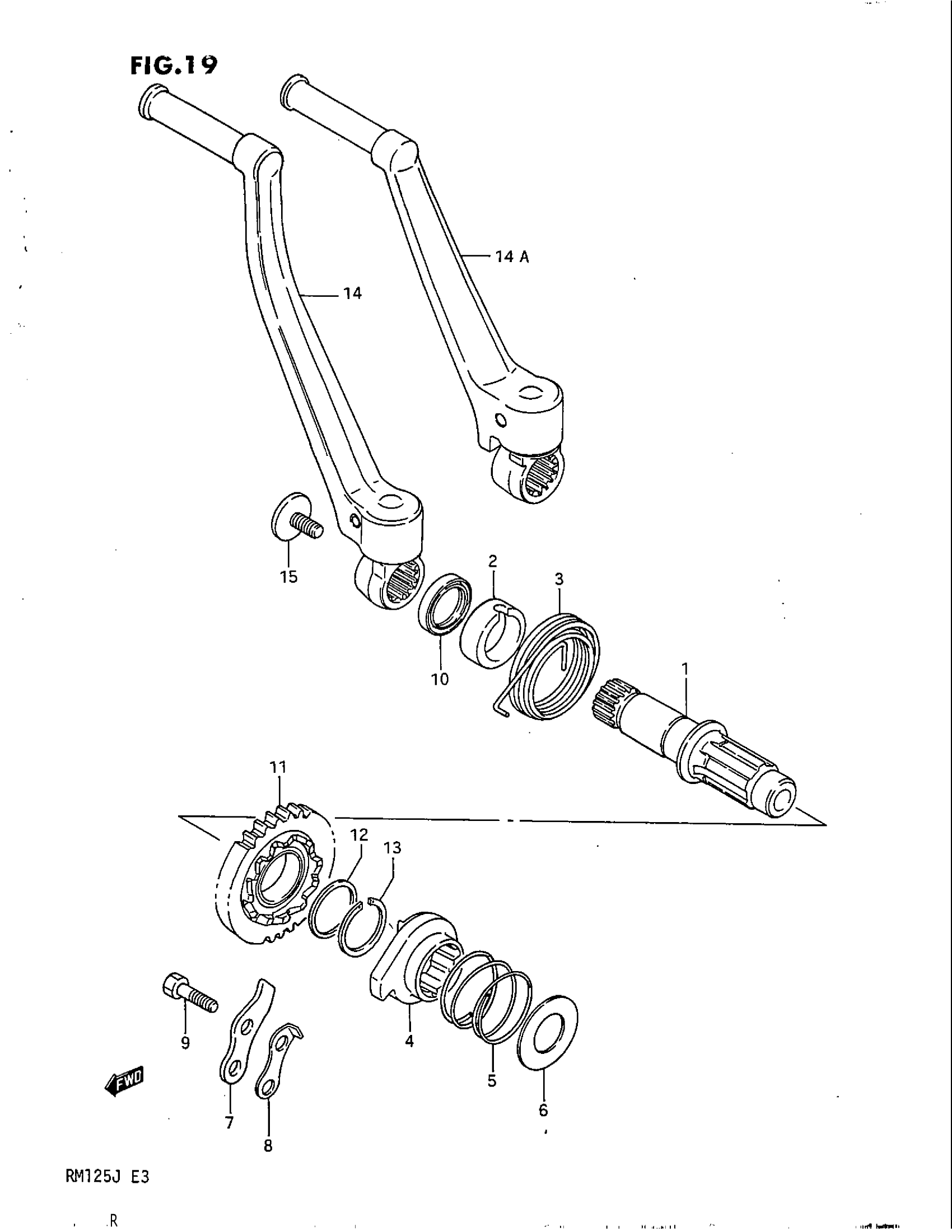

Suzuki RM125 (1988) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-01B00.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.92

3

SPRING

09448-48007

Unavailable

4

STARTER, KICK

26231-22A10

$72.10

5

SPRING

09440-32002

$2.10

6

PLATE

08211-17341

$2.53

7

GUIDE, KICK STARTER

26232-40200

$7.98

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$6.23

9

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

10

OIL SEAL (20X27X5)

09283-20031

$4.73

11

GEAR, KICK DRIVE (NT:28)

26240-14100

Unavailable

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.78

13

CIRCLIP

09380-22006

$2.80

14

LEVER ASSY,KICK | MODEL G This part replaces 26300-14500.

26300-28E21

Unavailable

14

LEVER ASSY,KICK | MODEL H This part replaces 26300-01B10.

26300-28E21

Unavailable

14A

LEVER ASSY,KK S | MODEL J This part replaces 26300-01B40.

26300-36EV0

Unavailable

15

BOLT (8X14) | MODEL G This part replaces 09106-08050.

09106-08102

$4.26

15

BOLT | MODEL H/J This part replaces 09106-08073.

09106-08098

$4.26
