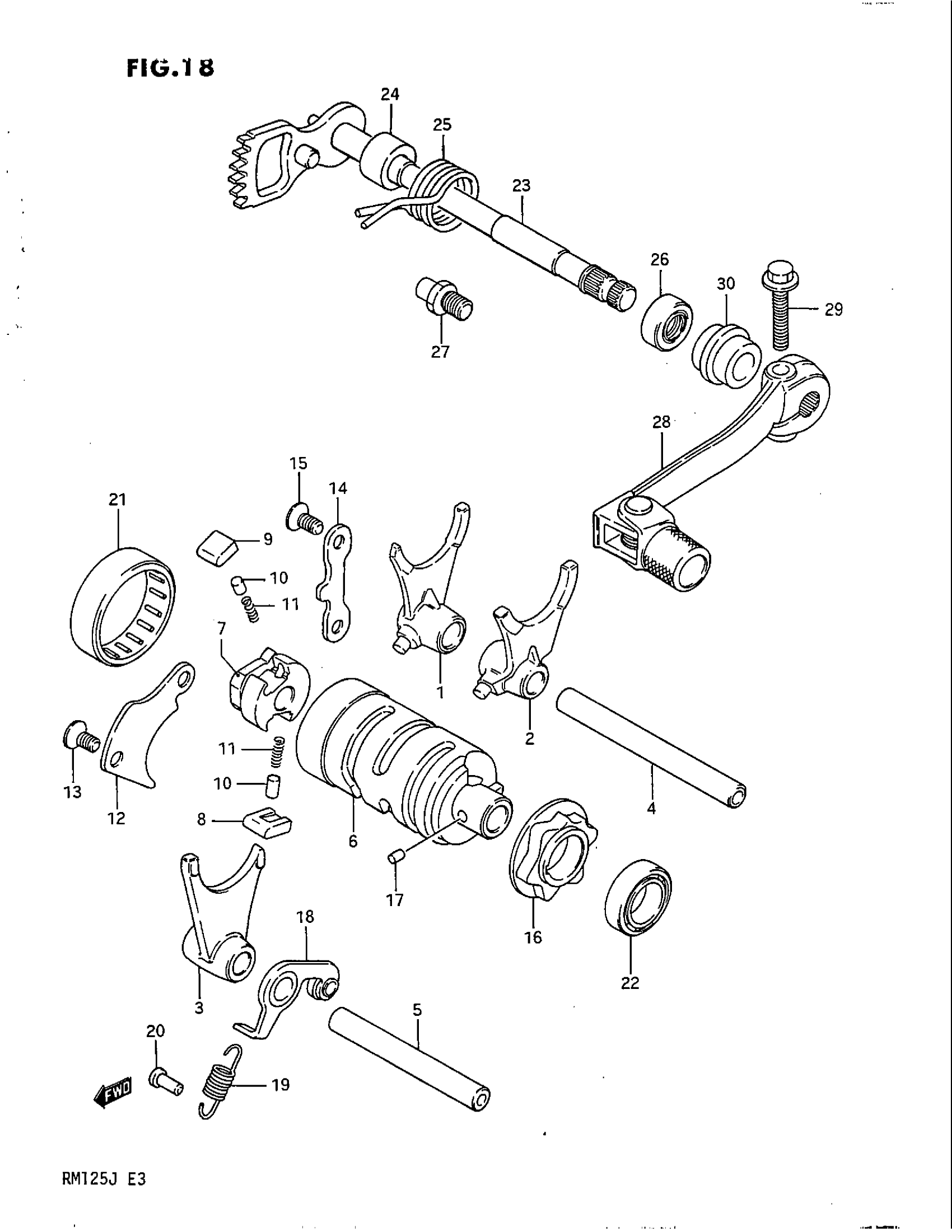

Suzuki RM125 (1988) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-41301

$98.98

2

FORK, NO.2 | MODEL G/H This part replaces 25221-14500.

25221-14501

Unavailable

2

FORK, NO.2 | MODEL J

25221-14501

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 25231-14500.

25231-14X01

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 25231-14501.

25231-14X01

Unavailable

4

SHAFT, FORK NO.1 This part replaces 25411-14500.

25411-20A11

Unavailable

5

SHAFT, NO.2 (L:80)

25421-14500

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 25310-14501.

25310-14502

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1

25323-34201

$6.91

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.11

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.52

12

LIFTER, PAWL

25331-11001

$7.22

13

SCREW This part replaces 02122-06128.

02122-06127

$1.89

14

GUIDE, CAM

25341-14500

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.89

16

PLATE, STOPPER

25381-00B00

Unavailable

17

PIN (4X13.8)

04221-04089

$1.15

18

STOPPER, CAM

25350-14501

Unavailable

19

SPRING

09443-08036

Unavailable

20

HOOK

09223-04001

$1.83

21

BEARING, RH This part replaces 09263-41001.

09263-41002

Unavailable

22

BEARING, LH

08113-69030

$30.92

23

SHAFT COMP, GEA This part replaces 25510-01B00.

25510-01BV0

Unavailable

24

SPACER (12X20X15.3)

09180-12083

$2.67

25

SPRING

09444-26017

$5.00

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.87

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.28

28

LEVER, GEAR SHIFTING

25600-14500

Unavailable

29

BOLT This part replaces 01517-06307.

01550-06307

$2.80

30

CUSHION, CHAIN

09180-12115

Unavailable
