1985 Suzuki RM125 Transmission Diagram

← All diagrams

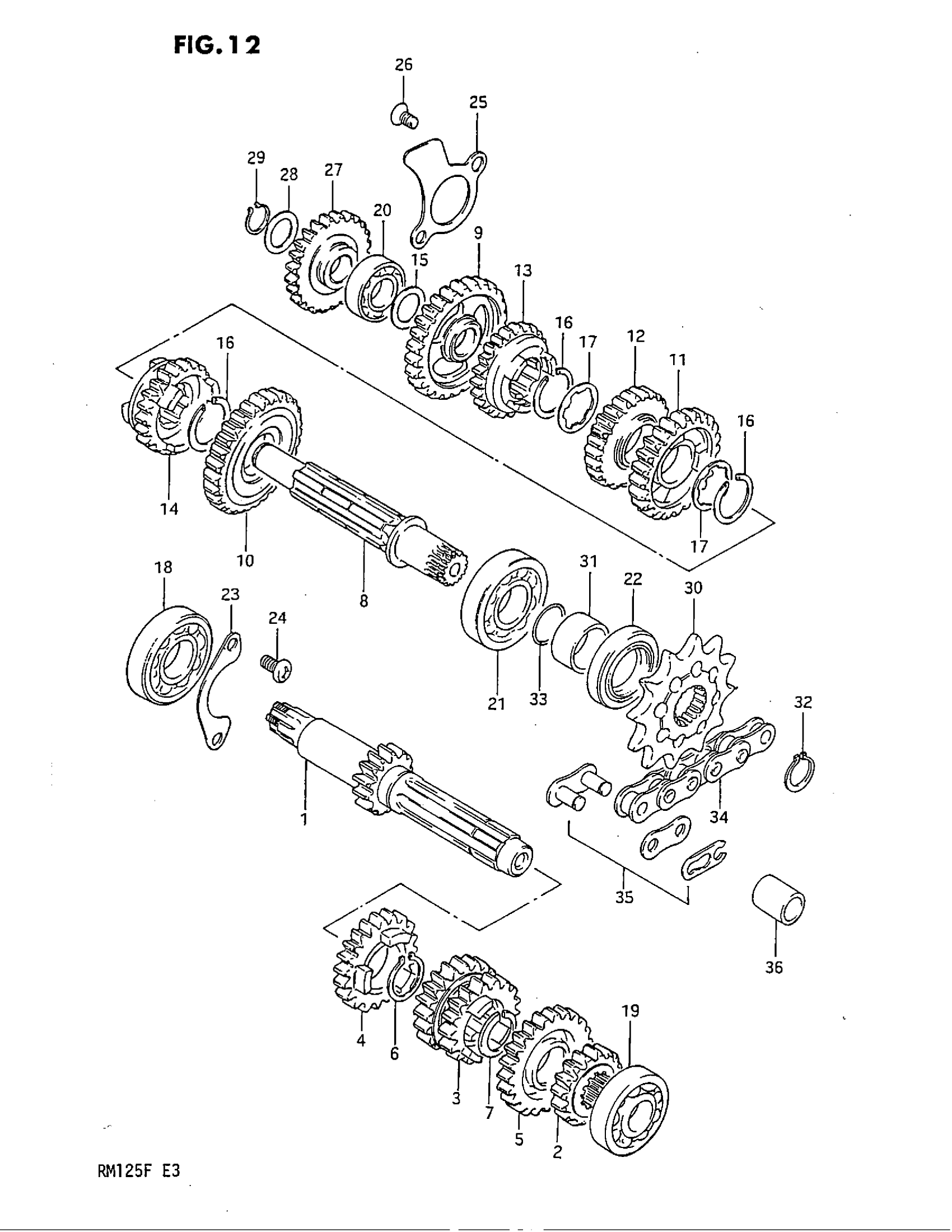

Find the part on the Transmission diagram for your 1985 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki RM125 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:14)

24121-14511

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-14510

1
Out of stock

3

GEAR, 3/4 DRIVE (NT:18/20)

24231-14510

1
Out of stock

4

GEAR, 5TH DRIVE (NT:21)

24250-14510

1
Out of stock

5

GEAR, 6TH DRIVE (NT:22)

24261-14510

1
Out of stock

6

CIRCLIP

09380-20007

1
Out of stock

7

CIRCLIP

09380-20012

1
Out of stock

8

DRIVESHAFT

24131-14510

1
Out of stock

9

GEAR, 1ST DRIVEN (NT:30)

24311-14511

1
Out of stock

10

GEAR, 2ND DRIVEN (NT:28)

24321-14510

1
Out of stock

11

GEAR, 3RD DRIVEN (NT:26)

24331-14510

1
Out of stock

12

GEAR, 4TH DRIVEN (NT:25)

24341-14510

1
Out of stock

13

GEAR, 5TH DRIVEN (NT:23)

24351-14510

1
Out of stock

14

GEAR, 6TH DRIVEN (NT:22)

24361-14510

1
Out of stock

15

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

1
Out of stock

16

CIRCLIP

09380-22006

3
Out of stock

17

WASHER

09167-22011

2
Out of stock

18

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

1
Out of stock

19

BEARING, LH

08113-60020

1
Out of stock

20

BEARING, RH

08113-62027

1
Out of stock

21

BEARING, LH

09262-20043

1
Out of stock

22

OIL SEAL

09283-25035

1
Out of stock

23

HOLDER, BEARING

24741-48000

1
Out of stock

24

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

25

HOLDER, BEARING

24751-14102

1
Out of stock

26

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

27

GEAR, KICK IDLE (NT:28)

26260-14100

1
Out of stock

28

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

1
Out of stock

29

CIRCLIP This part replaces 08331-31159.

08331-3115A

1
Out of stock

30

SPROCKET, ENGINE (NT:12) This part replaces 27511-14110.

27511-14111

1
Out of stock

30

SPROCKET, ENGINE (NT:11) | OPT This part replaces 27511-14100.

27511-14101

1
Out of stock

30

SPROCKET, ENGINE (NT:13) | OPT This part replaces 27511-14120.

27511-14121

1
Out of stock

31

SPACER

09180-20039

1
Out of stock

32

CIRCLIP

09380-20007

1
Out of stock

33

O RING

09280-20001

1
Out of stock

34

CHAIN,DRIVE ASS | Includes Item(s) 35 This part replaces 27600-14510.

27600-46K00-116

1
Out of stock

35

NO DESCRIPTION AVAILABLE This part replaces 27620-36111.

27620-28C01

1
Out of stock

35

JOINT (RK)

27620-10221

1
Out of stock

36

CUSHION, CHAIN

09180-12108

1
Out of stock
