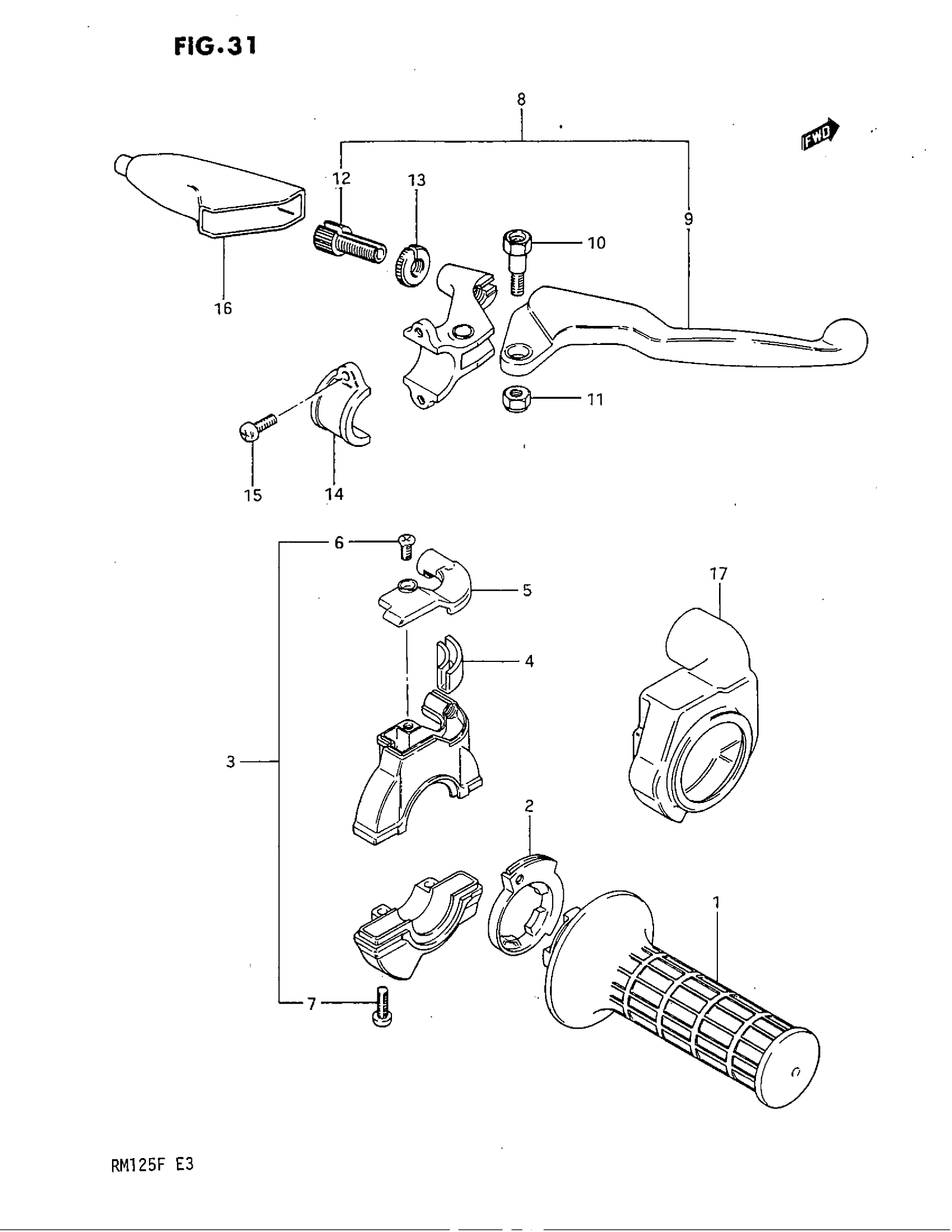

Suzuki RM125 (1985) RIGHT HANDLE SWITCH (MODEL E) Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-14300.

57110-27C00

$24.14

2

ROTOR, THROTTLE

57114-20410

$6.80

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-20411

Unavailable

4

GUIDE, PIECE

57122-20410

$7.22

5

COVER

57129-20411

$13.50

6

SCREW This part replaces 02132-04068.

02122-0410A

$1.22

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LEVER ASSY, BRAKE | Includes Item(s) 9 - 15 This part replaces 57300-14310.

57300-14300

Unavailable

9

LEVER, BRAKE

57420-14300

Unavailable

10

BOLT This part replaces 57431-14300.

57431-14301

$6.05

11

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

12

ADJUSTER, CABLE

57441-14200

$14.10

13

NUT

57442-14200

$6.32

14

HOLDER

57512-14300

$46.20

15

SCREW This part replaces 02112-05168.

02112-05167

$1.97

16

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.02

17

COVER, THROTTLE CASE This part replaces 57129-14500.

57129-14501

Unavailable
