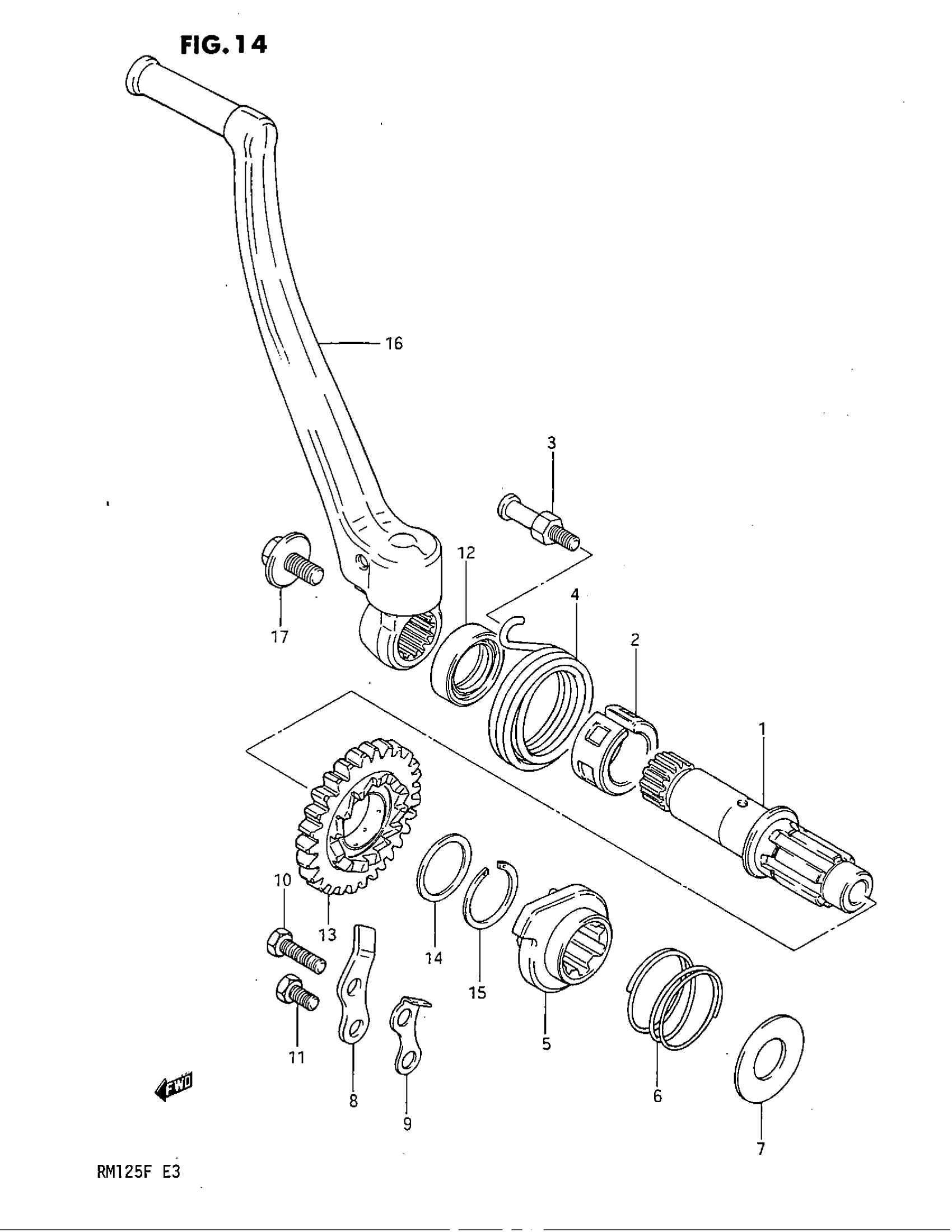

Suzuki RM125 (1985) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-14500

Unavailable

2

GUIDE, SPRING

26221-14500

Unavailable

3

BOLT, SPRING HOOK

26237-14500

Unavailable

4

SPRING

09448-48005

Unavailable

5

STARTER, KICK This part replaces 26231-30002.

26231-22A10

$72.10

6

SPRING

09440-32002

$2.10

7

PLATE

08211-17341

$2.53

8

GUIDE, KICK STARTER

26232-40200

$7.98

9

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$6.23

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

BOLT This part replaces 01107-06108.

01500-06107

$2.07

12

OIL SEAL

09283-20031

$4.73

13

GEAR, KICK DRIVE (NT:28)

26240-14100

Unavailable

14

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.78

15

CIRCLIP

09380-22006

$2.80

16

LEVER ASSY,KICK This part replaces 26300-14500.

26300-28E21

Unavailable

17

BOLT

09103-08069

$3.95
