1985 Suzuki RM125 Front Hose Diagram

← All diagrams

Find the part on the Front Hose diagram for your 1985 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

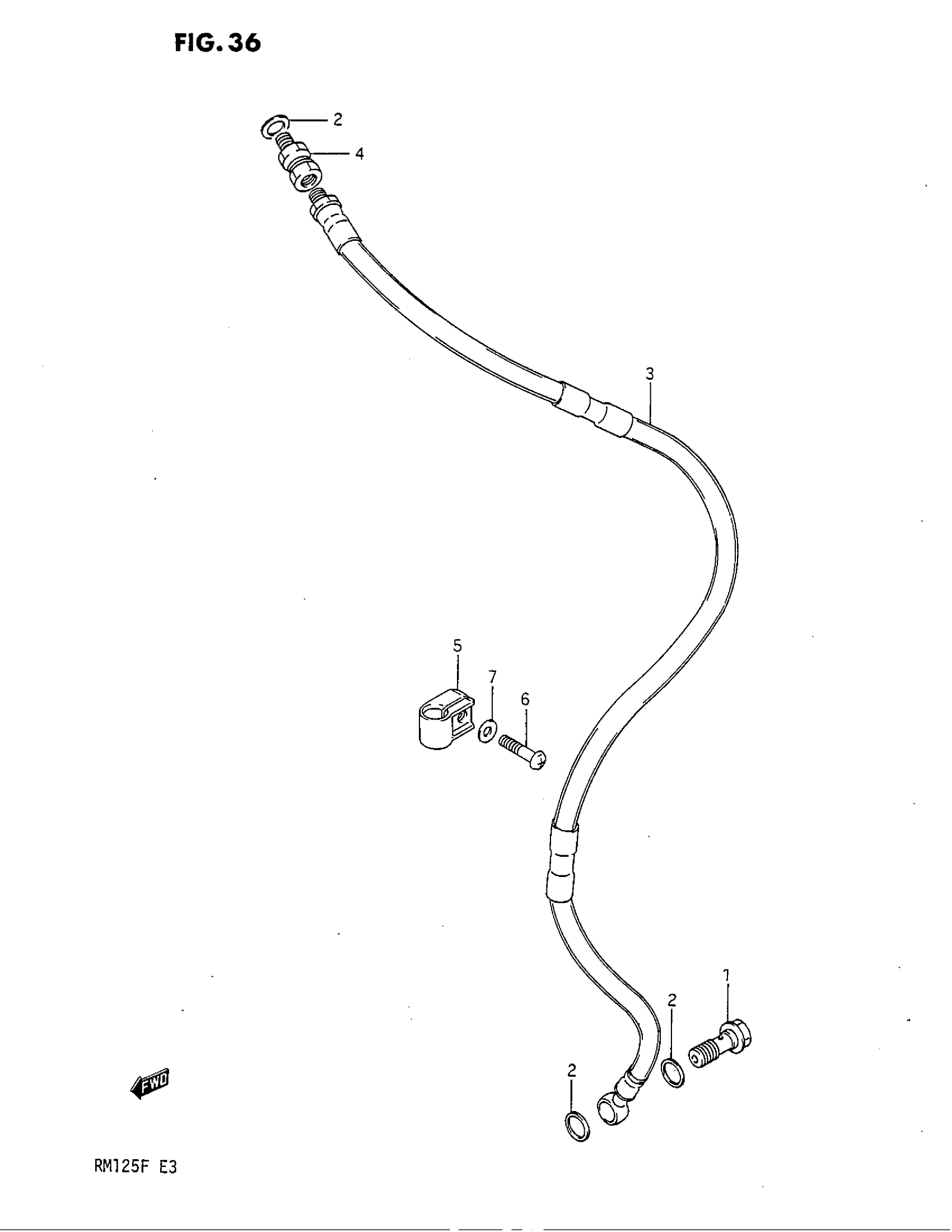

1985 Suzuki RM125 Front Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

09360-10017

1
Out of stock

2

WASHER (10X15X1.5)

09161-10009

3
Out of stock

3

HOSE

59480-14501

1
Out of stock

4

ADAPTER, BRAKE HOSE This part replaces 59290-14500.

59290-14501

1
Out of stock

5

CLAMP. BRAKE HOSE This part replaces 59243-14500.

59243-14501

1
Out of stock

6

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

7

WASHER This part replaces 08322-21067.

08322-01067

1
Out of stock
