1982 Suzuki RM125 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1982 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

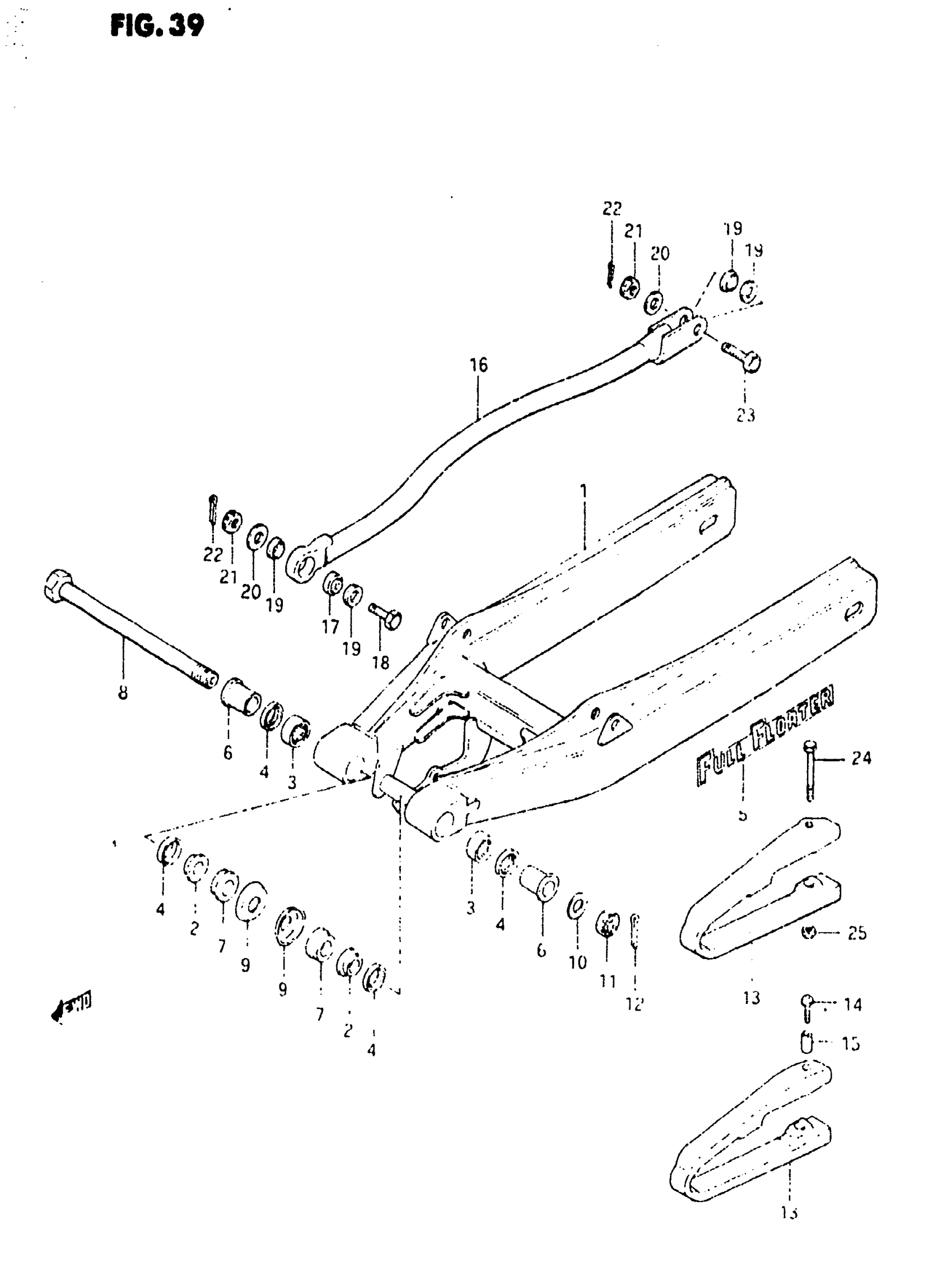

1982 Suzuki RM125 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | MODEL X

61100-14821

1
Out of stock

1

SWINGING ARM ASSY | MODEL Z; Includes Item(s) 2 - 5

61000-14110

1
Out of stock

2

BUSH

61261-14101

2
Out of stock

3

BEARING

09263-20041

2
Out of stock

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

4
Out of stock

5

EMBLEM This part replaces 68381-14100.

68381-14100-64D

2
Out of stock

6

SPACER

61251-14100

2
Out of stock

7

SPACER, INNER

61252-14100

2
Out of stock

8

SHAFT, PIVOT

61211-14102

1
Out of stock

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

2
Out of stock

10

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

11

NUT, HUB This part replaces 08314-41148.

08314-4014B

1
Out of stock

12

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

13

BUFFER,CHAIN TO | MODEL X This part replaces 61273-14203.

61273-14X50

1
Out of stock

13

BUFFER, CHAIN DEFENSE | MODEL Z This part replaces 61273-14210.

61273-14211

1
Out of stock

14

SCREW | MODEL X

61275-40200

2
Out of stock

15

SPACER,5.5X8X4 | MODEL Z This part replaces 09180-05015.

09180-05046

2
Out of stock

16

TORQUE LINK SET | Includes Item(s) 17 This part replaces 64300-14812.

64300-14813

1
Out of stock

17

BEARING This part replaces 64352-40410.

64352-40401

1
Out of stock

18

BOLT, FRONT

09101-08003

1
Out of stock

19

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

4
Out of stock

20

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

21

NUT This part replaces 08314-41088.

08314-4008B

2
Out of stock

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

23

BOLT, REAR

09101-08014

1
Out of stock

24

BOLT | MODEL Z This part replaces 01107-06708.

09100-06062

1
Out of stock

25

NUT | MODEL Z This part replaces 08319-31068.

08319-31067

1
Out of stock
